60KM HDMI EXTENDER OVER FIBRE 4K@60HZ BASE ONLY REQR MODULE

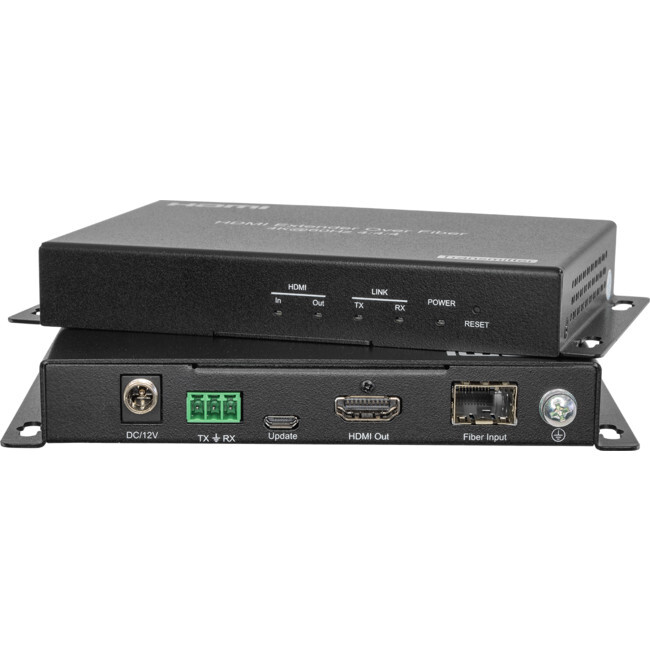

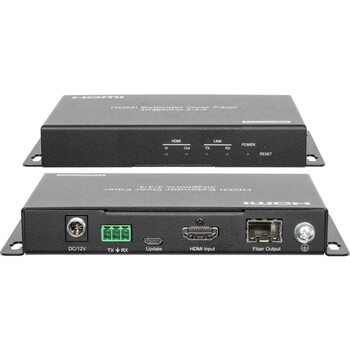

The HDMIFIB4K is a long-range HDMI video extender kit that uses LC fibre optic cable to extend video/audio from anHDMI-equipped device to a remote display up to 60km away(60km transceiver fibre module required). The extender supports up to 4K resolution with 18Gps bandwidth includes both the transmitter and receiver base only.

Features:

• Transmit from 1m to 60KM over Single/Multi mode, single/duplex fibre
• Support resolution up to 4Kx2K@60Hz, YUV4:4:4 HDR
• Support bandwidth up to 18Gbps
• Without latency
• Support HDCP2.2 input, HDCP2.2 output
• Support HDCP1.4 input, HDCP1.4 output
• Support RS232 Bi-direction pass through
• With Automatic EDID for rapid integration of source and display
• Support LPCM7.1, Dolby True HD, DTS-HD Master Audio
• Locking power supplies
• Surface-mountable

Specifications:

• Operating Temperature Range: -5 to +40(+23 to +95)
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Video Input(Transmitter): 1xHDMI Type A, 19-pin, female
• Video Output(Receiver): 1xHDMI Type A, 19-pin, female
• Link(Transmitter/ Receiver):
  • 1m~60Km single
  • Multi mode 300m single
  • Duplex fibre optical cable
  • Module type required: SFP Type, Single / Multi mode ,Single / Duplex fibre (optional)
  • Video Format: 4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/VESA Resolution
  • Audio Format: Support LPCM 7.1, Dolby®True&n bsp;HD, DTS-HD Master Audio™
• HDCP
  • HDCP 1.4 in, HDCP 1.4 out
  • HDCP 2.2 in, HDCP 2.2 out
• Power consumption
  • Transmitter: 3watts(Maximum)
  • Receive: 3watts(Maximum)
• Dimension (L×W×H)
  • Transmitter: 96*100*21mm
  • Receiver: 96*100*21mm
• Net Weight: 475g (Pair)

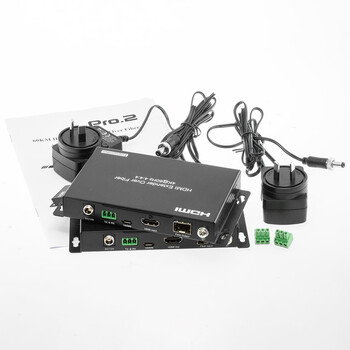

Packing Contents

• Main Unit. HDMI Extender Over Fibre
• DC12V 1A Power Supply X2
• Operating Instructions

This product requires a pair of transceiver module to work. Compatible module part numbers are as follows. SM:SFP10G10KSMLC & MM: SFP10G300MMLC
