4 WAY OPTICAL SWITCH WITH DAC AND ANALOGUE OUTPUTS

Our OPT41AU is an advanced 4-way optical audio switch. Perfect for the integration of multiple audio sources with asoundbar. It has a built in DAC and simultaneous digital and analogue stereo audio outputs. Supports 192kHz sample rates and up to 24-bitresolution for enhanced sound reproduction.

Features:

• 4x optical SPDIF digital inputs which can be switched to single optical output
• DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left/right stereo audiooutput
• Built-in digital audio converter converts selected optical audio input to coaxial digital output
• Outputs optical digital, coaxial digital and analogue left/right stereo audio concurrently
• Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
• Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher
• Ultra low jitter and high fidelity design

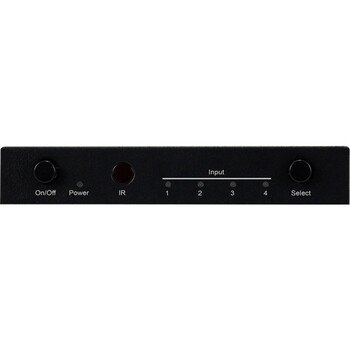

• Input selection button on front panel to toggle between optical inputs
• IR receiver on front panel to switch inputs and turn On / Off audio outputs using supplied IR remote
• External IR input can be used to extend IR with Blustream IR receiver cable

Specifications:

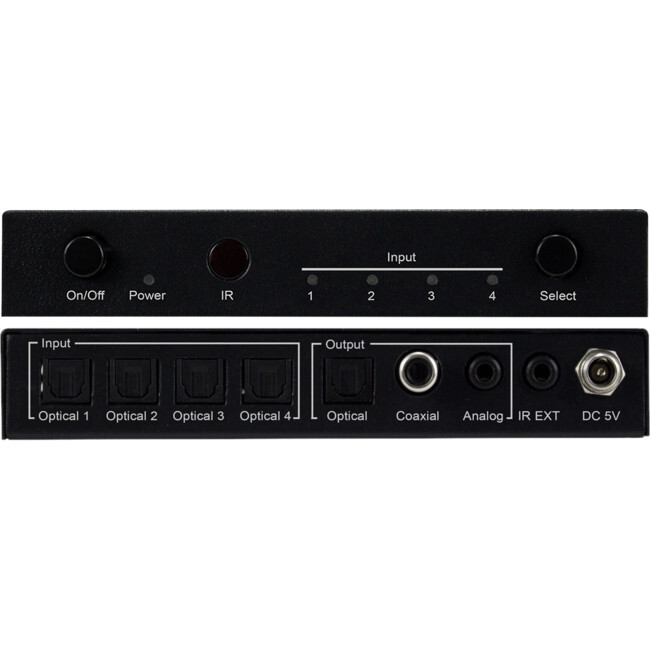

• Audio Input Connectors: 4x Optical (SPDIF)
• Output Connectors: 1x Optical (SPDIF), 1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
• IR Input Ports: 1x 3.5mm stereo Jack
• Casing Dimensions (WxDxH): 137x24x68mm
• Dimensions including connections (WxDxH): 137x24x79mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, screw type connector
• Mounting kit included

Contents:

• 1 x OPT41AU
• 1 x Remote control
• 1 x 5V/1A DC power supply
• 1 x Mounting kit
• 1 x User manual
