4-WAY AV S-VIDEO SELECTOR 4 IN 1 OUT COMPOSITE SVIDEO

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

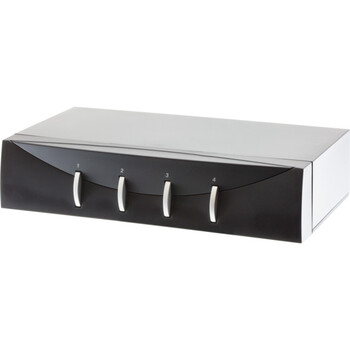

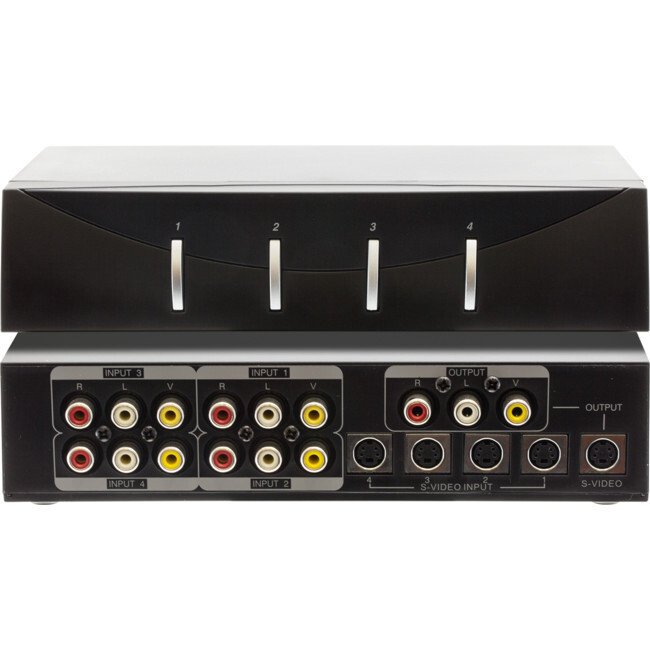

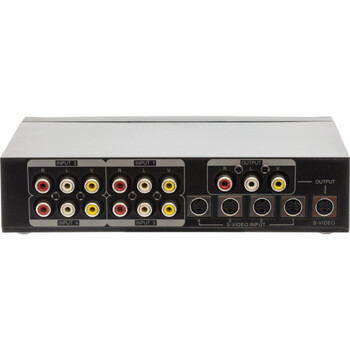

This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video.

Specifications:

Audio :

  • Frequency range: 10Hz-20K Hz
  • Insertion Loss: 0.5 dB limited
  • Channel Separation (@1K Hz): 50 dB normal, 45dB limited
  • Crosstalk Between Function(@1K Hz): 60dB normal, 55dB limited

Note:

  • The generator impedance should be 600 ohm.
  • Signal output reading is taken across a 47K ohm load.
  • Product Input 4.7K ohm terminated. (on testing channel
  • separation and crosstalk)



Video :

  • Frequency Range: 0.3M-6M Hz
  • Insertion Loss: 1 dB limited
  • Isolation Loss: 35 dB limited



Chrominance :

  • Frequency Range: 4.43M±0.5M Hz
  • Insertion Loss: 1dB limited
  • Isolation Loss: 35dB limited



Luminance :

  • Frequency Range: 0.3M-1M Hz
  • Insertion Lloss: 1dB limited
  • Isolation Loss: 35dB limited



Composite/S-Video signal conversion :

  • Video Input: 1V P-P
  • Luminance Output: 0.9V P-P
  • Chrominance Output: 0.286V P-P

Note:

  • The generator impedance should be 75 ohm
  • Input 75 ohm terminated

(PRO1048)

This item comes with a 12 months warranty

This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video. Specifications: Audio : Frequency range: 10Hz-20K Hz Insertion Loss: 0.5 dB limited Channel Separation (@1K Hz): 50 dB normal, 45dB limited Crosstalk Between Function(@1K Hz): 60dB normal, 55dB limited Note: The generator impedance should be 600 ohm. Signal output reading is taken across a 47K ohm load. Product Input 4.7K ohm terminated. (on testing channel separation and crosstalk)   Video : Frequency Range: 0.3M-6M Hz Insertion Loss: 1 dB limited Isolation Loss: 35 dB limited   Chrominance : Frequency Range: 4.43M±0.5M Hz Insertion Loss: 1dB limited Isolation Loss: 35dB limited   Luminance : Frequency Range: 0.3M-1M Hz Insertion Lloss: 1dB limited Isolation Loss: 35dB limited   Composite/S-Video signal conversion : Video Input: 1V P-P Luminance Output: 0.9V P-P Chrominance Output: 0.286V P-P Note: The generator impedance should be 75 ohm Input 75 ohm terminated
Model # PRO1048
Barcode # 9328202018755
Brand PRO2
Shipping Weight 0.4000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.006250000m3
Type Video Selector
