4-WAY 18GBPS HDMI SWITCHER AUDIO EXTRACTION HDMI2.0 HDR

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

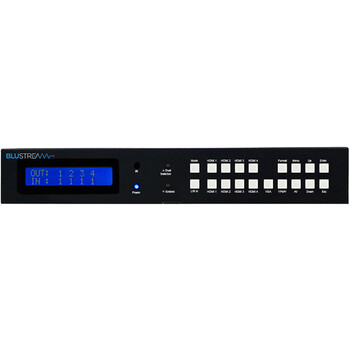

Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management.

The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1x2), alternatively each output can work independently with Output 1 routing the 4x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p).

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations

Key Features:

Switcher can function in 2 modes:
Splitter mode - both HDMI outputs display the same image from any video input
Switcher mode - HDMI output 1 and 2 are independently controlled

HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
Built-in video scaling, both up-scaling and down-scaling capabilities
Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K
Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
Audio embedding - independent analogue L/R audio inputcan be embedded to HDMI outputs + Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in 'Split mode', 'Switch mode' = HDMI output 2 only).
HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in 'Switch mode')
Volume control - Controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
Supports 3D signal display
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
Supplied with Blustream IR receiver and IR link cable
Control via front panel, IR and RS-232
3rd Party drivers available for all major home controlbrands
Advanced EDID management
HDCP compliant
Supplied with Blustream IR receiver and IR link cable
Control via front panel, IR and RS-232
3rd Party drivers available for all major home controlbrands
Advanced EDID management
HDCP compliant

Box Contents:

1x MFP72
1x 5V / 2A DC power supply
1x IR Remote control
1x IR receiver
1x IR control cable - 3.5mm-3.5mm cable (IRCAB)
1x Mounting kit
1x User manual

(HDMI4S18G)

This item comes with a 12 months warranty

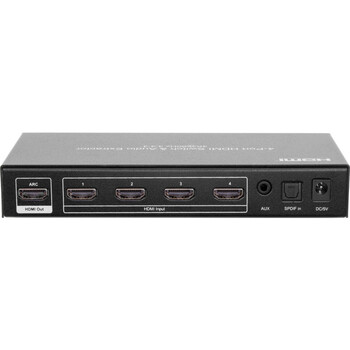

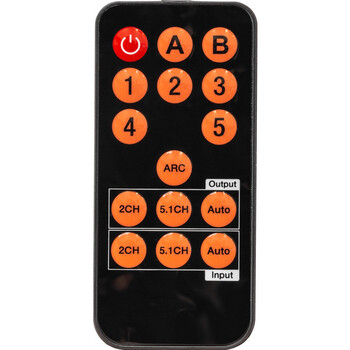

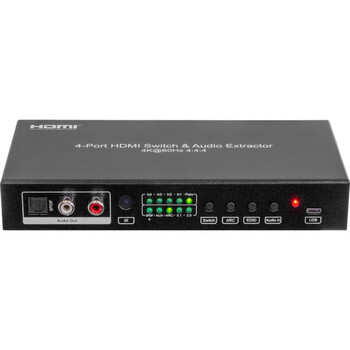

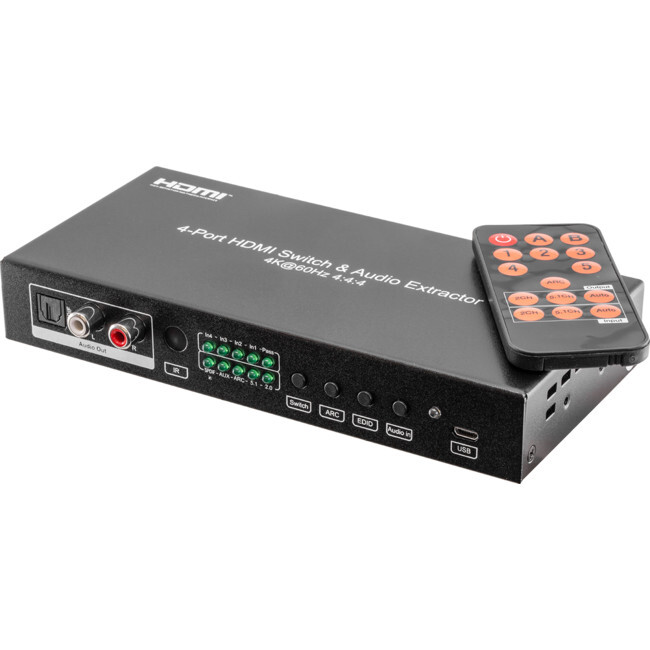

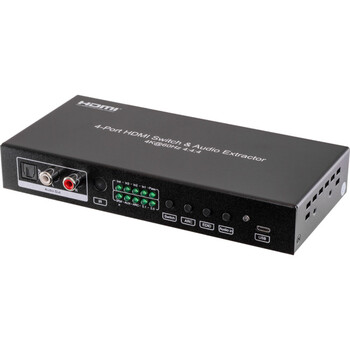

Easily switch between four different HDMI sources with the push of a button or using the included remote. With the HDMI4S18G you are getting the latest and greatest in what HDMI has to offer: 4K, 18GBPS bandwidth, HDMI version 2.0, HDR10, and ARC. To top it all off, the HDMI4S18G is also an excellent HDMI audio extractor, allowing you to output audioonly in either two-channel stereo or 5.1ch surround sound. With ARC, you can grab the audio signal from the TV and output it using the S/PDIF or RCA outputs. Features: Switch inputs via the front panel or remote control Extract stereo audio via the front RCA outputs or 5.1ch via the front S/PDIF toslink port Audio mixing support via 3.5mm auxiliary input and S/PDIF toslink input (bypass mode) Upto 18GBPS bandwidth HDMI 2.0 version (Support 4K@60Hz YUV4:4:4) Simultaneous audio output: Stereo and toslink 12 bits per channel (36 bit all channels) deep colour HDCP 2.2 (backwards compatible) HDR10 support Uncompressed LPCM 7.1 audio DTS-HD Master and Dolby True HD Audio Return Channel (ARC) Connections: Back Panel 4x HDMI inputs 1x (ARC) HDMI output 3.5mm AUX input S/PDIF optical input Front Panel S/PDIF optical output 2x stereo RCA output Micro USB input for firmware upgrades LED indicators for: Input, Pass-through, S/PDIF in, AUX, ARC, 5.1 audio,2.0 audio Push-buttons for: Source switching (1-4), ARC, EDID (2ch-5.1ch audio), Audio input (Aux, S/PDIF) switching Power LED indicator IR window In The Box: HDMI4S18G Switcher Remote control 5V 1A power supply User manual Mounting ears (for rack mounting)
Model # HDMI4S18G
Barcode # 9328202031136
Brand PRO2
Shipping Weight 0.6900kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
Type Switcher
