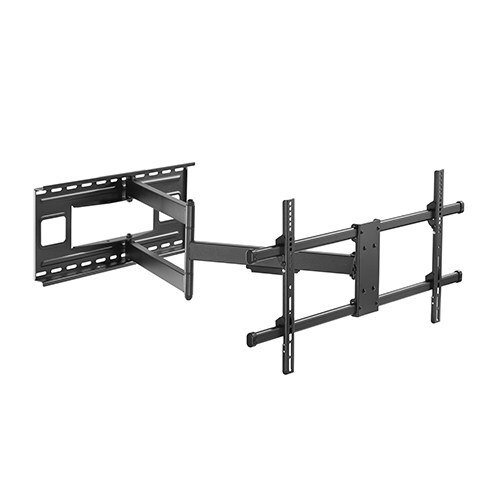

Brateck Extra Long Arm Full-Motion Tv Wall Mount For Most 43'-80'

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Featuring 1015mm (40')of arm extension and almost limitless swivel capability, the LPA49-483XLD offers maximum viewing range, meeting almost any mounting challenge.

Heavy-duty arms provide strong support for larger and heavier TVs up to 50kg (110lbs).TV installation and removal are made easy through a unique quick-release mechanism.

Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.

Features:

  • Extending Arm: provides a wide range of viewing angles

  • Swivelling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

  • Free-Tilting Design: for multiple monitor viewing angles

  • Quick-Release Latch: locks/unlocks the display in place

  • Cable Management: elegantly hides any cables that are attached to displays

(MABT-LPA49-483XLD)

This item comes with a 12 month warranty.

  • Material: Steel

  • Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet, VESA Panel THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059' cold-rolled sheet, Wall Plate THK=0.12' pickling sheet, VESA Panel THK=0.059' cold-rolled sheet)

  • Pipe Size: 50x25x1.5mm Square Steel Tube (2'x0.98'x0.059' Square Steel Tube)

  • Surface Finish: Powder Coating

  • Colour: Fine Texture Black

  • Dimensions: 101.5 x 88.5 x 43 cm (40'x34.8'x16.9')

  • Fit Screen Size: 43'-80'

  • Fit Curved TV: Yes

  • Mounting Hole Pattern: VESA Only

  • VESA Compatible: 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400

  • Max. VESA: 819x410mm

  • Weight Capacity: 50kg (110lbs)

  • Strength Tested: 2 Times Approved

  • Profile: 82~1015mm (3.2'~40')

  • Tilt Range: +5°~-15°

  • Swivel Range: +90°~-90°

  • Screen Level: +3°~-3°

  • Screen Freely Tilting: Yes

  • Installation: Double Stud(406mm/450mm/600mm),Solid Wall

  • Panel Type: Detachable Panel

  • Wall Plate Type: Fixed Wall Plate

  • Direction Indicator: Yes

  • Cable Management: Yes

  • Bubble Level: Hook-on Bubble

Model # MABT-LPA49-483XLD
Barcode # 6956745161862
Brand BRATECK
Shipping Weight 12.0000kg
Shipping Width 0.975m
Shipping Height 0.090m
Shipping Length 0.357m
Shipping Cubic 0.031327000m3
Type Wall Mount
