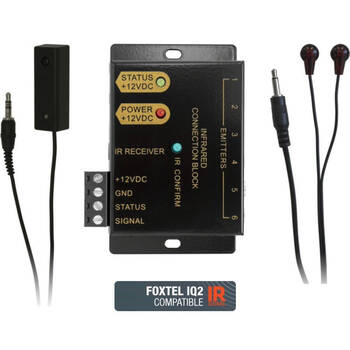

Pro.2 IR Repeater Kit

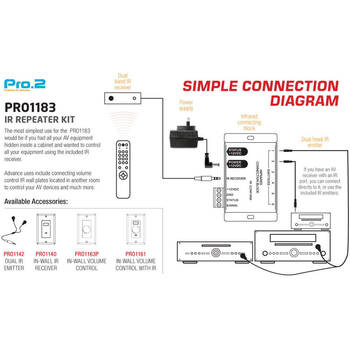

The PRO1183 IR repeater system allows you to connect and remotely control a number of audio/video devices in a simple to install, yet sophisticated set up.

Kit includes of:

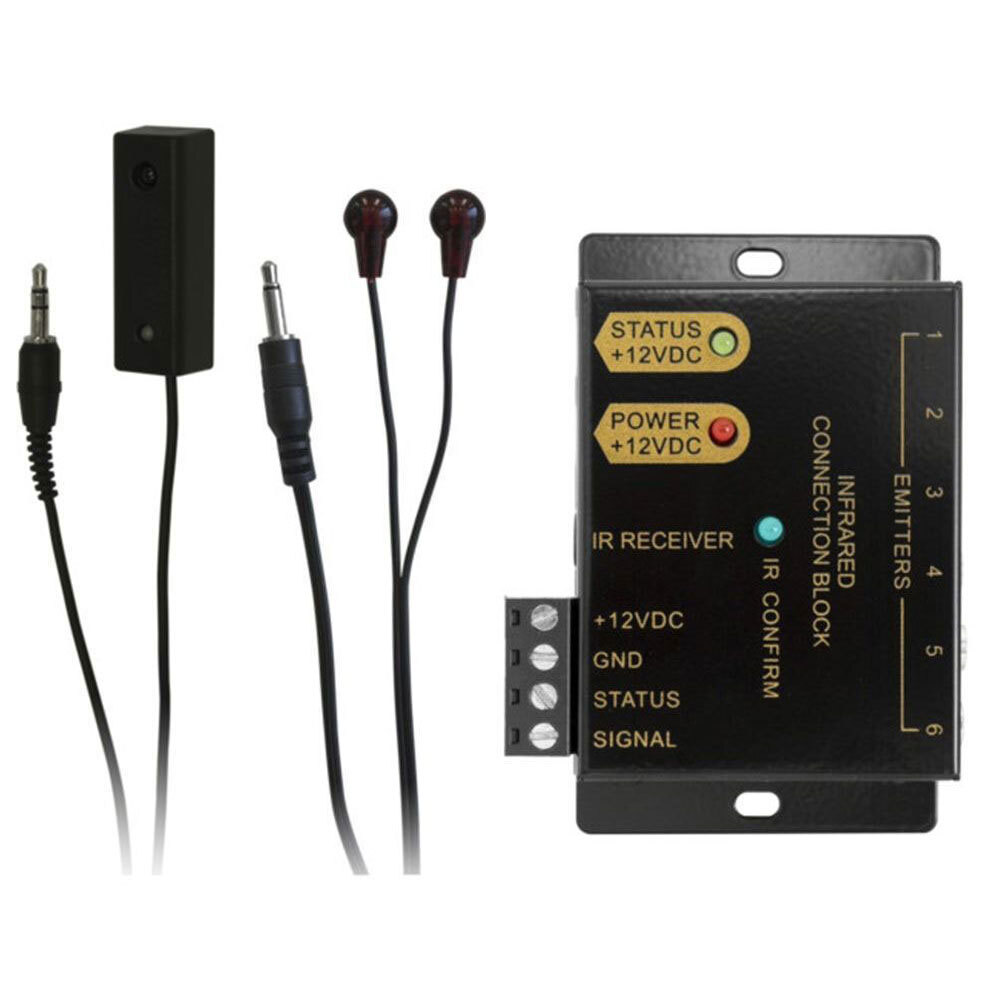

Infrared connecting block
Connects IR receivers, power supply and emitters together to interface the IR system to the audio/ video components.

• Six emitter output connections

• Convenient IR confirmation LED

• Status power receptacle with LED indicator

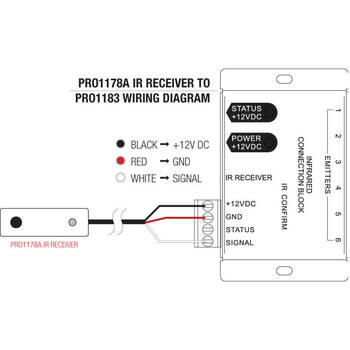

• 3 conductor 1/8" receptacle for interfacing with many brands of freestanding IR receivers

• Compact size for mounting near audio equipment

• 82 (W) x 60 (H) x 27 (D) mm

• 110 g

Mini stick infrared receiver
Receives IR signals from a handheld IR remote control and relays this signal to the audio/video equipment for operation from another room. The receiver has a non-skid base and is placed on a flat surface.

• CFL friendly - allows installation in areas with compact fluorescent lighting.

• Blue IR confirmation LED

• Wideband IR

• 3 m cable with 3.5 mm stereo mini plug

Infrared emitter

• Round shape, with elegant & compact size

• Transparent housing

• 10ft cable length

• 3.5mm standard mono plug

• With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface

12 V 200 mA power supply

• Power: 12V DC 30mA max.

• 45 (L) x 14 (W) x 13 (H) mm

• Cord Length: 3 metres (10 ft)

• Connector Type: 3.5mm TRS mini plug

• Weight: 28 g

• IR Receiver

Foxtel Compatible:

• Receive Frequency Range: 34 KHz ~ 60 KHz

• Transmit Frequencies: 38 KHz ~ 56 KHz

• IQ2 Compatible

Range:

• 12 metres (40 ft) @ 38 KHz

• 7.6 metres (25 ft) @ 56KHz

NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.
