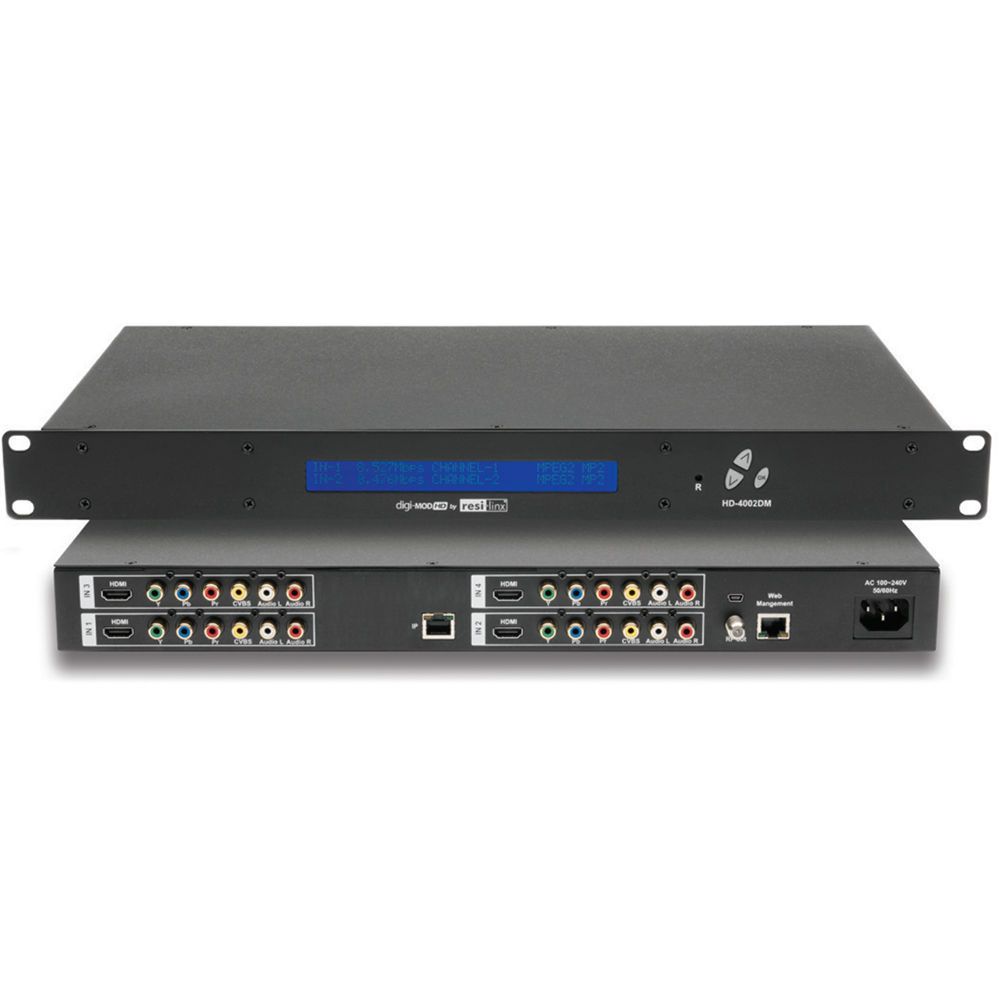

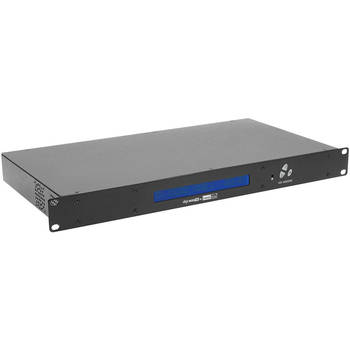

HD-4002DM - Professional Quad Input High Definition DVB-T MPEG-2/4 Digital Modulator


The HD-4002DM is a Quad Input High Definition DVB-T Professional Commercial Modulator.

Dual mode DVB-T distribution with both MPEG-2 / AVC (MPEG-4) encoding - along with IP Streaming available inthe one product- ensuring the product is compatible with allHD TV's.

Up to 1080P HD Distribution: 576i / 720P / 1080i / 1080P(AVC only).

Features

  • Quad Input High Definition DVB-T Modulator that converts HD video and audio signals to digital COFDM DVB-T Channel
  • Dual Mode - MPEG-2 & AVC (MPEG-4) Encoding
  • Simulcastng IP Multicast Broadcasting
  • Distributes 576i / 720P / 1080i / 1080P picture quality (1080P only available on AVC)
  • Programmable Channel, Network Names and LCN
  • HDMI, Component, CVBS, Analogue Audio, Digital Coaxial/Optical inputs
  • MER - 43dB
  • Full function front LCD display for adjustments
  • Web Management for easy programming and monitoring
  • 2K/8K Carriers
  • Adjustable VHF / UHF Output (6-69)
  • Adjustable Attenuation (98dB launch)
  • Desk, Wall and Rack Mountable

(HD4002DM)

This item comes with 12 months warranty

Specifications

  • Video Input: HDMI / Component / CVBS
  • Audio Input: HDMI / Analogue Stereo /Digital
  • Resolutions Supported: 576i / 720P / 1080i / 1080P
  • Output Channels: 6-69
  • Output Connector: F type
  • Output Level: 98dBuV
  • Output Level Adjustment: 20 dB typ.
  • Number of Inputs: 4
  • Video Resolution: MPEG - 2 / H.264 (MPEG -4)
Model # HD4002DM
Barcode # 9328202020475
Brand RESI-LINX
Shipping Weight 4.5000kg
Shipping Width 0.600m
Shipping Height 0.750m
Shipping Length 0.310m
Shipping Cubic 0.139500000m3
Type Quad Input High Definition DVB-T Modulator
