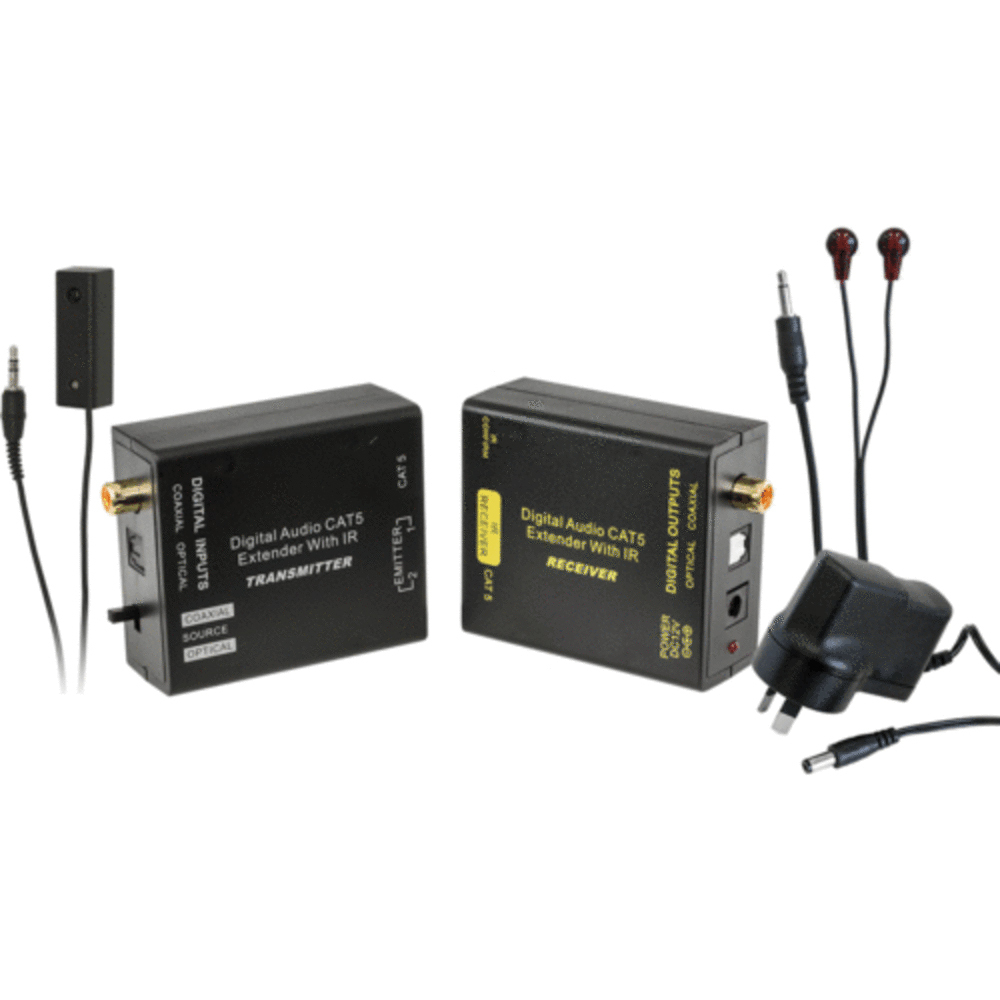

Digital Audio CAT5/CAT6 Extender Receiver/Transmitter IR Infrared/Coaxial/Toslink

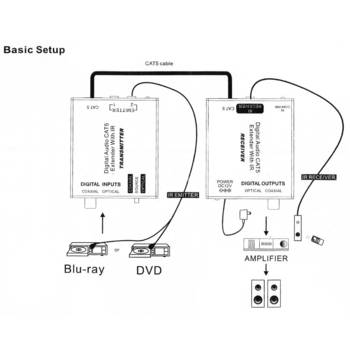

This Digital Audio Extender with IR Kit allows you to extend S/PDIF or TOSlink digital audio up to 200 meters over one CAT-5e or CAT6 cable. Place your digital audio components anywhere you want with this "Digital Audio Extender with IR Kit". It supports either S/PDIF or TOSlink digital audio signals, which are commonly used to transmit stereo and multichannel (5.1, DTS Digital, etc.) digital audio among various components. The 'Digital Audio Extender with IR Kit' uses a sender and receiver system connected by CAT-5E cables to extend the digital audio. The Digital AudioExtender's sender unit connects to the audio source component. The Digital Audio Extender's receiver unit connects to the extended audio component (up to 200 Meters away).

• It transmits digital signals through a single Cat5e or Cat6 cable

• It enables the user to listen and control the music by using a remote controller to control the audio player (distance: up to 200 meters)

• Supports multichannel audio

• Select one input from Coaxial or Toslink input ports, and send S/PDIF audio signal to both Coaxial and Toslink output ports simultaneously

• 2 Emitter output connections

• Convenient IR confirmation LED

• Power receptacle with LED indicator

• Power supply:DC 12V/ 200mA (INCLUDED)

• Input: Coaxial RCA Jack & Toslink port

• Output: Coaxial RCA Jack & Toslink port

• Extender Distance: 200 Metres

• DC Input Connector: 5.5 x 2.1 x 9.5mm

• DC Input Voltage/ Polarity: 12V/ Centre positive

• Dimensions (mm): 88.4L x 64.5W x 29H

• Weight: Transmitter 59g; Receiver 59g

Infrared Component:

• Receiver Frequency: 30 kHz to 60 kHz

• Transmit Frequency: 38 kHz and 56 kHz

• Range: 12m @38kHz./ 7.62m @ 56kHz

NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.
