DIGITAL AUDIO CONVERTOR WITH DOLBY DOWN MIXING

The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analogue audio outputs.

Key Features:

• Supports audio signals up to 24-bit with sampling ratesup to 96kHz
• Downmixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital audio input signals from a compatible source device to 2ch stereo audio

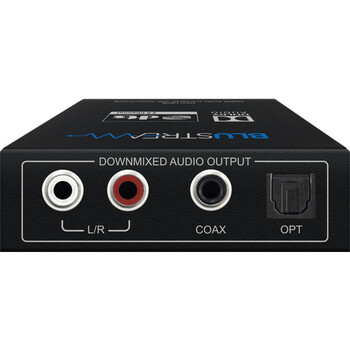

• Simultaneously outputs downmixed 2ch audio via analogue, optical Toslink or coaxial digital audio outputs
• Dolby Audio and DTS Audio formats supported:
  • PCM 2ch
  • Dolby Digital 2ch
  • Dolby Digital 5.1ch
  • DTS 2ch
  • DTS 5.1ch

Specifications:

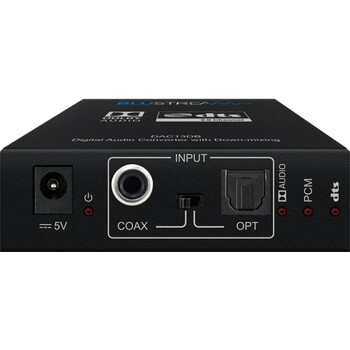

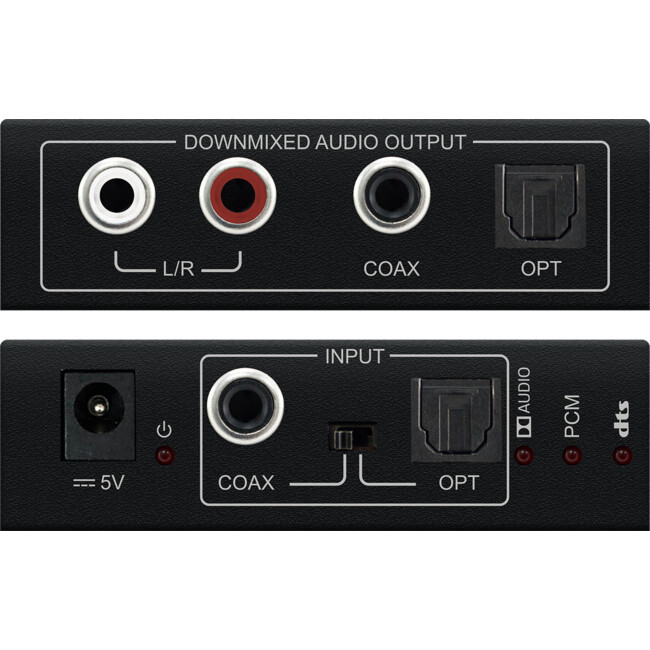

• Audio Input Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital
• Audio Output Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)
• Casing Dimensions (W x D x H): 80mm x 76mm x 24mm (without connections)
• Dimensions (W x D x H): 80mm x 91mm x 24mm
• Shipping Weight: 0.2kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 5V/1A DC

Box Contents:

• 1 x DAC13DB
• 1 x Mounting Kit
• 1 x 5V/1A DC Power Supply
• 1 x Quick Reference Guide

Specifications are subject to change without notice. Weights and dimensions are approximate.
