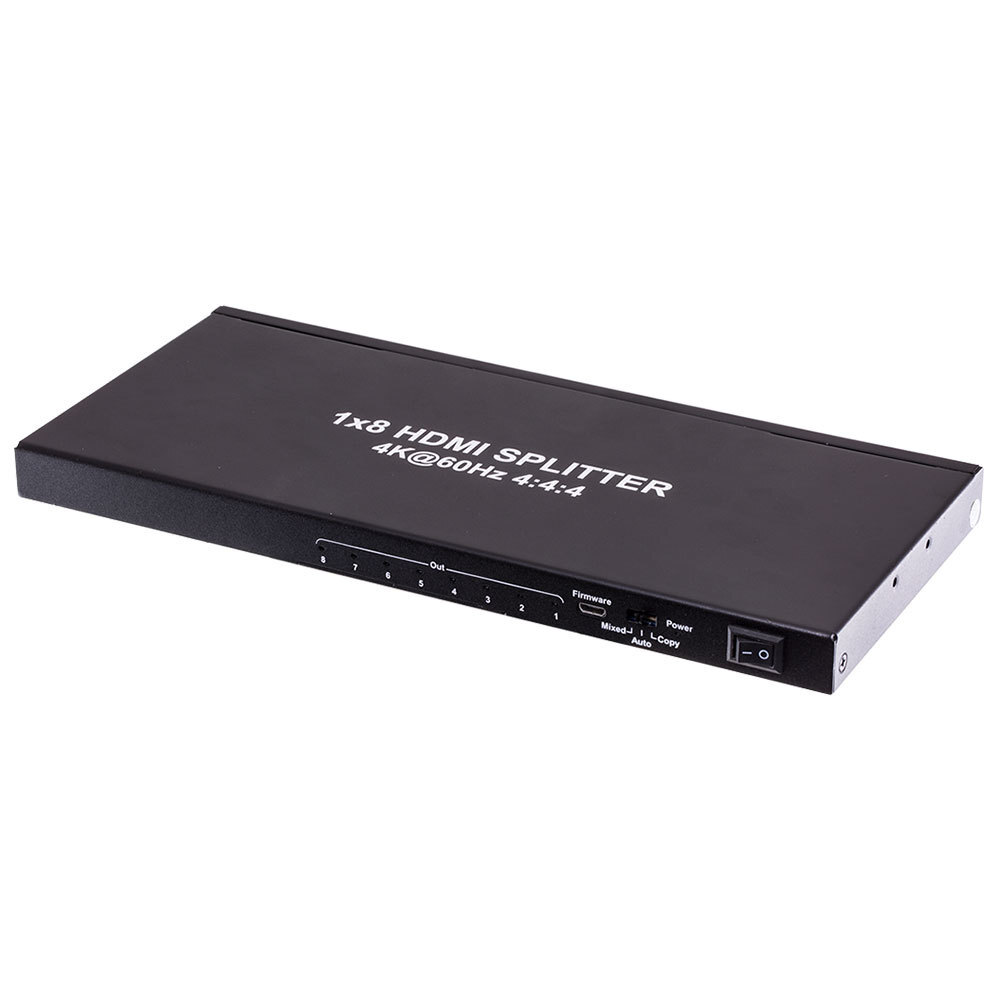

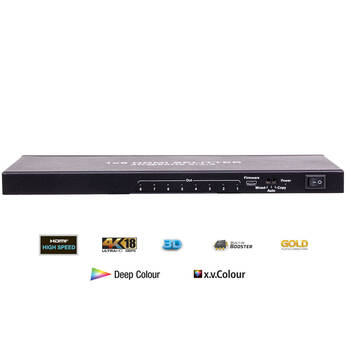

8 Way 2.0 HDMI Splitter

This item comes with a 12-month warranty.

Pro2's high-quality HDMI splitters take a single signal input — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss.  This state of the art 4K HDMI 2.0 UHD splitter is capable of displaying resolutions up to 3840 x 2160.  It is ideal for today's 1080p 3D signals and is future proofed for many years to come. Our range provides an ideal solution from a simple home installation up to a massive 16 monitor commercial installation.  All models come in a robust metal case that is made up of a solid construction that is built to last. FEATURES Slim design, great for hiding behind TVs Up to 4K HDMI 2.0 UHD Supports 36 bit Deep Color Display resolutions up to 3840 x 2160 Powered for extended cable runs, equalising signals, and re-clocking output Built-in EDID simulator and HDCP key-set allows each output to work independently when connecting to an HDMI display Ideal for a simple home setup up to a 16 monitor commercial installation A robust metal case of solid construction HDMI Inputs: 1 HDMI Outputs: 8 Power Supply: 5V 1A DC Dimensions (LxWxH): 247.2x110x17mm Weight: 610g Power Consumption: 5W Supports: 3D / 4K x 2K HDCP Compliance: v2.0 HDMI Resolutions: 480p / 720p / 1080i /1080p @ 60 Hz / 4K x 2K @ 24 Hz 4K x 2K out @60G YUV4:4:4 Audio Formats: LPCM / Dolby-AC3 / DTS 7.1 / DSD Data Transfer Speed: 18 Gbps Input Video signa:l 5.0 Volts P-P (TTL) Single Link Video Amplifier Bandwidth: 140 MHz Transmission Distance: 15 metres using standard HDMI/26AWG cable Operating Temp. Range: -15°C to 55°C (23°F to 95°F) Operating Humidity Range: 5 to 90% RH (no condensation)

• HDMI Inputs: 1

• HDMI Outputs: 8

• Power Supply: 5V 1A DC

• Dimensions (LxWxH): 247.2x110x17mm

• Weight: 610g

• Power Consumption: 5W

• Supports: 3D / 4K x 2K

• HDCP Compliance: v2.0

• HDMI Resolutions: 480p / 720p / 1080i /1080p @ 60 Hz / 4K x 2K @ 24 Hz

• 4K x 2K out @60G YUV4:4:4

• Audio Formats: LPCM / Dolby-AC3 / DTS 7.1 / DSD

• Data Transfer Speed: 18 Gbps

• Input Video signa:l 5.0 Volts P-P (TTL) Single Link

• Video Amplifier Bandwidth: 140 MHz

• Transmission Distance: 15 metres using standard HDMI/26AWG cable

• Operating Temp. Range: -15°C to 55°C (23°F to 95°F)

• Operating Humidity Range: 5 to 90% RH (no condensation)
