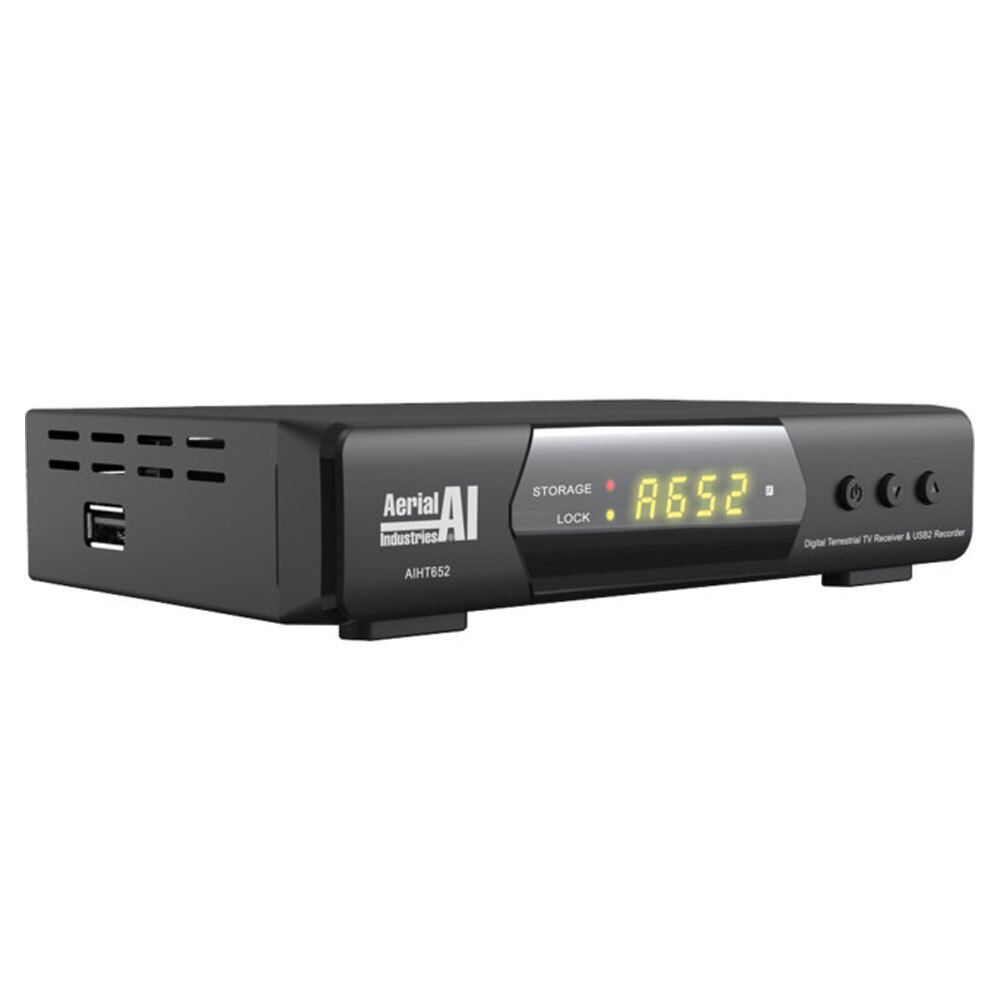

Aerial Industries AIHT652 HD Set Top Box w/ USB

Perfect for DVB-T & Ready for DVB-T2, Features TimeShift or Record Live TV & Programmable Remote.

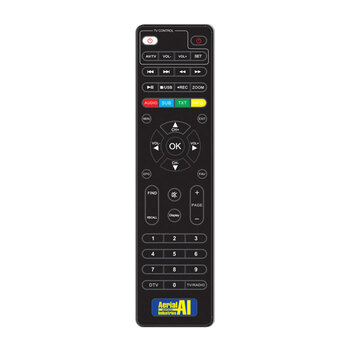

• Programmable remote control
• Small Steel Case easier to conceal
• Standby Power Consumption <0.5W
• Parental Lock Program Control Option
• 7-Day Electronic Program Guide (EPG)
• Internet Radio via optional WiFi Modem
• Audio Description (AD) Function included

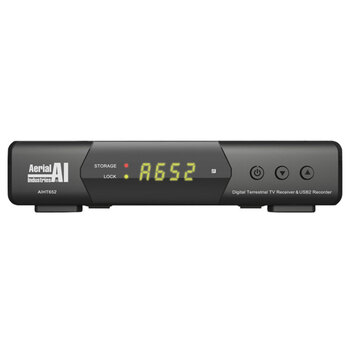

• Front Panel LED Clock with adjustable brightness
• Signal Level & Quality bars included in Info Display
• Media Player Function from USB Flash or HDD Storage
• Jump moves instantly through recordings in user defined steps
• DVB-T Receiver ready for DVB-T2 & HEVC H.265 Compression
• Digital Audio: Coaxial S/PDIF with Dolby Digital (where Broadcast)
• Video Outputs: HDMI & Composite CVBS are Active Simultaneously
• External Mains Power Supply enables use from Mains or DC Power 12 to 15v
• Extension RCU Command Receiver (optional) enables Total Receiver Concealment

TUNER
FREQUENCY RANGE: 174 MHz to 820MHz
DVB T2 SIGNAL LEVEL: <-82dBm
ANTENNA POWER: 5V, I Max. = 300mA
INPUT VOLTAGE: Input DC 12V/1A
POWER CONSUMPTION: < 7.5W Max. (Standby <-0.5W)
PROTECTION: Separate Internal Fuse
OPERATING TEMPERATURE: 0C to 40C
STORAGE TEMPERATURE: -40C to 65C

VIDEO
TRANSPORT STREAM: MPEG-2/H.264 (MPEG4)
PROFILE LEVEL: Single-chip HEVC, H.264, H.263, MPEG4, MPEG-2, AVS, AVS+, VC1
ASPECT RATIO: 16:9/4:3
VIDEO RESOLUTION: 1080p/1080i/720p/575p/576i/480p/480i
VIDEO MEDIA FILES: AVI, FLV, MKV, MOV, MP4, MPG, MT2S, TS,VOB, 3GP
PICTURE MEDIA FILES: BMP, GIF, JPG, JPEG, PNG

AUDIO
AUDIO DECODING: MPEG-1/2 layer I/II/III, Dolby AC3/AC3+ (optional), DRA 2 CH/5.1 CH (optional)
AUDIO MODES: Stereo, Joint Stereo, Dual Channel, Single Channel
AUDIO/MUSIC FILES: AAC, MP2, MP3

USB2
EXTERNAL STORAGE: USB2 Compatibility up to 3TB

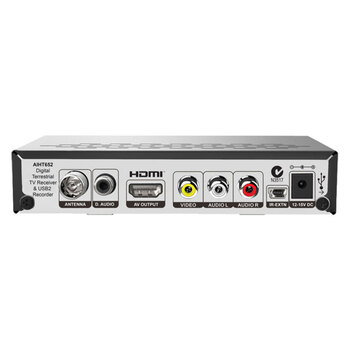

INPUTS/OUTPUTS
ANTENNA: Coaxial Cable TV Signal Input
DIGITAL AUDIO: Digital Audio Output to HiFi Amplifier etc.
DIGITAL AV: High Definition AV Cable Output to TV or Display
VIDEO/AUDIO L&R: Composite Video and Analogue Audio RCA Cable Outputs
IR EXTENSION: External IR Receiver Input (optional) to Receive RCU Commands
USB2: Host Port for Flash SSD/HDD Storage. Compatible WiFi Modem or High Speed Hub (< 500mA Total). Port is located in the side.

Item Dimensions Approx: 15 x 9 x 3cm (L x W x H)

Includes:

1 x Digital TV Receiver & USB2 Recorder
1 x Remote Control x2 AA Batteries
1 x 12V/1A DC Power Adapter
1 x HDMI Cable
1 x User Manual
