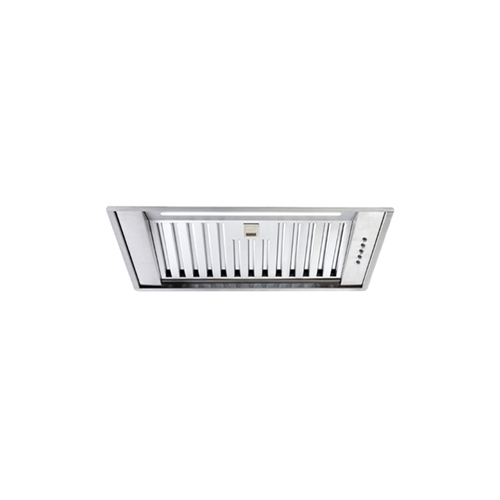

Euromaid 52cm Undermount Rangehood 1000m3/h Stainless Steel Silver

Standard Consumer Warranty

Euromaid 52cm Undermount Rangehood 1000m3/h Stainless Steel Silver This low profile undermount rangehood is a very style conscious decision for any modern kitchen. Featuring up to 1000 m³/h for airflow, baffle filters and LED lighting, the UCB52S is well suited above any high powered gas or induction cooktop. Available only at selected Harvey Norman, Domayne and Joyce Mayne stores.1000m³/h Air Extraction3 Speed Button ControlLED Strip LightBaffle FiltersModel Number: UCB85SColour/finish: Stainless SteelSize: 85cmControl Types: Push button controlsWeight (kg): 9.5Product Height (mm): 304Product Width (mm): 850Product Depth (mm): 290
FEATURES
Stainless Steel Undermount Rangehood
1000 m3/h Air Extraction
Push Button Controls
3 x Fan Speeds
Strip LED Lighting
1 x Baffle Filter
SPECIFICATIONS
Airflow: 1000 m3/h
Motor Housing: 304 Stainless
Noise Level: 54 -59 dBA▲
Lighting: 4W LED Strip
Total Wattage: 265W
Ducting Spigot Size: 150mm
Cabinet Size Required: 600mm
▲dBA value provided is a result of rangehood in operation on all 3 speeds.
Note: dBA level is dependant on

INSTALLATION scenario and length of ducting run.

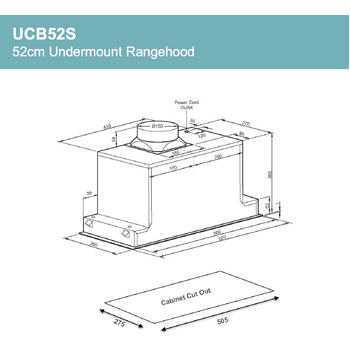

Product Dimensions
520mm (W) x 305mm (H) x 290mm (D)
Cut Out Dimensions*
505mm (W) x 275mm (D)
*Ensure the distance between the edges of the cut -out to
the edge of the cupboard is at least 35mm

Total Power
Power: 269W, 220 -240 volt / 50HzIncludes:
1 x Rangehood
