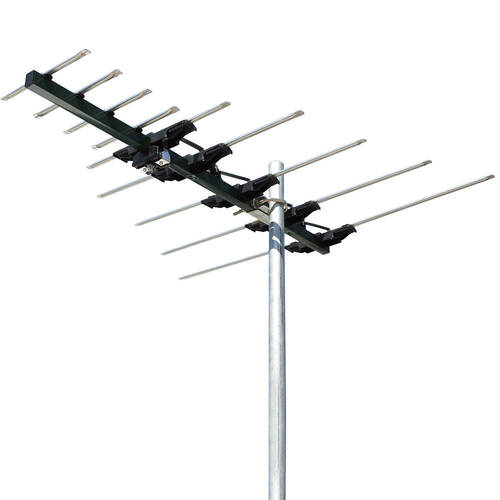

Matchmaster Outdoor Australian Home/House UHF/VHF TV Antenna

Tv Antenna MatchMaster SKU: 01MMSA100

Good service and product

Log Periodic Digital TV Antenna VHF/UHF (6-12)(28-46) 9 Elements

Matchmaster premium VHF/UHF & Combination antennas, suitable for metropolitan & rural areas using VHF, UHF or combination broadcasts. Heavy duty construction with ‘F’ type baluns to improve signal quality. Various models can be used in horizontal or vertical broadcast areas. Matchmaster antennas feature built in Low Pass Filters either at 230MHz, 652MHz or 694MHz depending on model to prevent 4G (LTE) interference.

Features and Benefits

  • Australian made
  • Receives channels 6-12 and 28-46
  • Hybrid log periodic antenna to maximise gain for wanted channels
  • VHF elements 9.54mm diameter aluminium tube for metropolitan applications
  • 652MHz low pass filter > 40dB attenuation at 750MHz to eliminate 4G (LTE) interference
  • Mounting clamp at the balance point avoids antenna sagging

(01MMSA100)

This item comes with 12 months warranty

Log Periodic Digital TV Antenna VHF/UHF (6-12)(28-46) 9 Elements  Matchmaster premium VHF/UHF & Combination antennas, suitable for metropolitan & rural areas using VHF, UHF or combination broadcasts. Heavy duty construction with F type baluns to improve signal quality. Various models can be used in horizontal or vertical broadcast areas. Matchmaster antennas feature built in Low Pass Filters either at 230MHz, 652MHz or 694MHz depending on model to prevent 4G (LTE) interference.  Features and Benefits  Australian made  Receives channels 6-12 and 28-46  Hybrid log periodic antenna to maximise gain for wanted channels  VHF elements 9.54mm diameter aluminium tube for metropolitan applications  652MHz low pass filter > 40dB attenuation at 750MHz to eliminate 4G (LTE) interference  Mounting clamp at the balance point avoids antenna sagging

Specifications

  • Elements    9
  • Band    B3, UHF
  • Channels    B3
  • UHF    VHF (6-12)
  • UHF (28-46)
  • Maximum Gain    B3
  • UHF    VHF 5dB
  • UHF 7dB
  • AV VSWR    <2:1
  • Front/Back Ratio    B3
  • UHF    VHF 12dB
  • UHF 14dB
  • Balun Type    'F' Type PCB
Model # 01MMSA100
Barcode # 9322190021582
Brand MATCHMASTER
Shipping Weight 1.1000kg
Type Outdoor TV Antenna
