FLUSH MOUNT ACCESS CONTROL SUIT DVF DOOR STATION AIPHONE

AiPhone Door Access Control

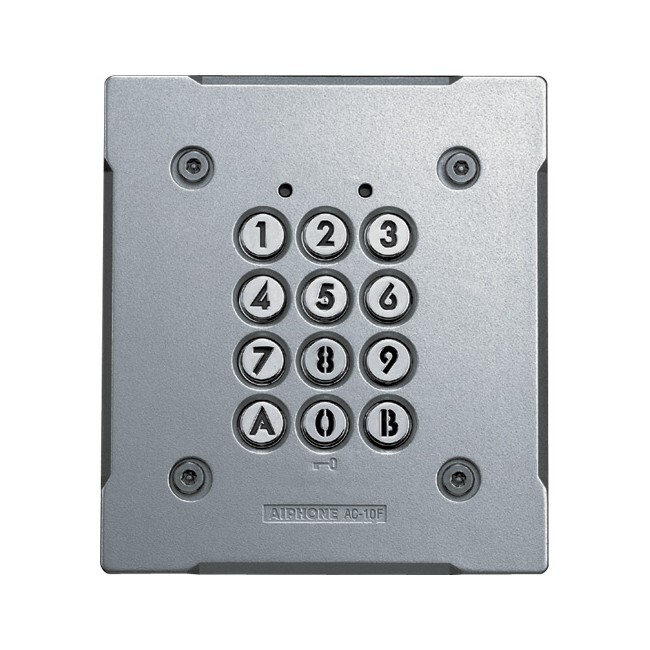

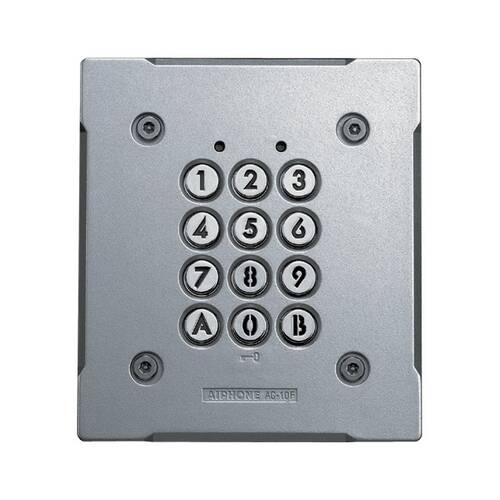

The AC-10F is a stand-alone flush mount access keypad. The unit is constructed of cast zinc and will hold up to 100 codes for access. The AC-10F provides two dry contacts for door release or mag lock activation.

  • 12-Digit backlit keypad; 2 relay outputs (NO & NC)
  • 100 Pin Code capacity; 2 request-to-exit inputs
  • 12 Terminal wiring block for easy connections

Specifications
Power Source: 12~24V AC or DC
Power Consumption:
DC: Max. 70mA
AC: Max. 100mA
Door Release:
2 Relays NO & NC
Contact Rating: 3A (resistive), 1A (inductive) @ 24V
Ingress Protection: IP54 rated
Dimensions: 5-3/16" H x 4-5/8" W x 3/16" D, 15/16" recess

(AC10F)

This item comes with a 12 months warranty

FLUSH MOUNT ACCESS CONTROL SUIT DVF DOOR STATION AIPHONEAiPhone Door Access Control The AC-10F is a stand-alone flush mount access keypad. The unit is constructed of cast zinc and will hold up to 100 codes for access. The AC-10F provides two dry contacts for door release or mag lock activation. 12-Digit backlit keypad; 2 relay outputs (NO & NC) 100 Pin Code capacity; 2 request-to-exit inputs 12 Terminal wiring block for easy connections Specifications Power Source: 12~24V AC or DC Power Consumption: DC: Max. 70mA AC: Max. 100mA  Door Release: 2 Relays NO & NC Contact Rating: 3A (resistive), 1A (inductive) @ 24V Ingress Protection: IP54 rated Dimensions: 5-3/16" H x 4-5/8" W x 3/16" D, 15/16" recess
Model # AC10F
Barcode # 4968249553014
Brand AIPHONE
Shipping Weight 0.9600kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.003000000m3
Type Door Keypad
