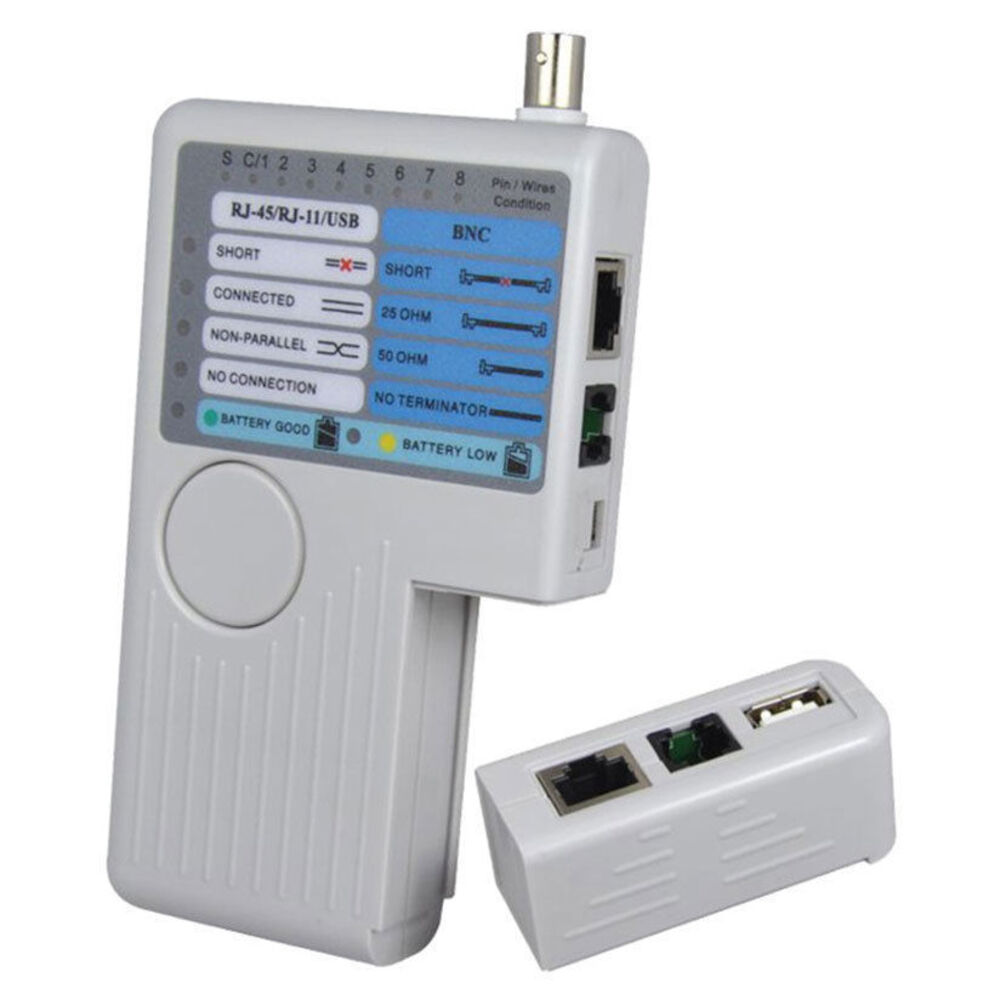

Ethernet Cable Continuity Lan Tester CAT5 CAT6/RJ11/RJ45/BNC/USB

This item comes with 12 month warranty

The 4 in 1 Cable Tester tests 4 common LAN and Computer cables. It tests installed cables or patch cords with RJ-45,RJ-11,USB and BNC connectors. It is used to test faulty cables such as open, cross cables, short-circuit or crosstalk. Tests shielded (STP) or unshielded(UTP) LAN cables Test shields in 1394 and USB cables Ergonomic portable handheld design Tests installed wires and patch cables Remote unit stores in Main unit 180m test distance (RJ-45/RJ-11/BNC) Simple one button test LEDs indicate connections and faults Beeper provides audible annunciation of test results Cable tested     UTP/STP LAN cables terminated in RJ-45 connectors(EIA/TIA 568) RJ-11 cables with connectors, 2 to 6 conductors installed 1394 Cables with Type 1 plugs on both ends USB cables with Type A flat plug on one end and type B square Plug on other end BNC cables with connectors Faults Indicated    No Connection /Shorts / Opens / crosses Low battery indicator    LED lights to indicate low battery Battery    9V Battery (not included) Dimension    7.25×4.0×1.0 inches (L×W×H) Weight    202g(Without battery)

Cable tested

UTP/STP LAN cables terminated in RJ-45 connectors(EIA/TIA 568)
RJ-11 cables with connectors, 2 to 6 conductors installed
1394 Cables with Type 1 plugs on both ends
USB cables with Type A flat plug on one end and type B square Plug on other end
BNC cables with connectors

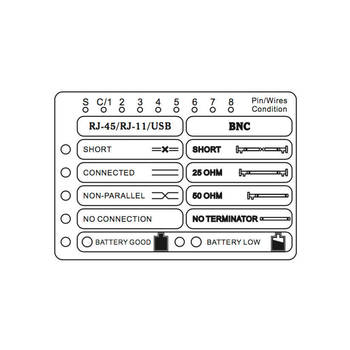

Faults Indicated    No Connection /Shorts / Opens / crosses
Low battery indicator    LED lights to indicate low battery
Battery    9V Battery (not included)
Dimension    7.25×4.0×1.0 inches (L×W×H)
Weight    202g(Without battery)
