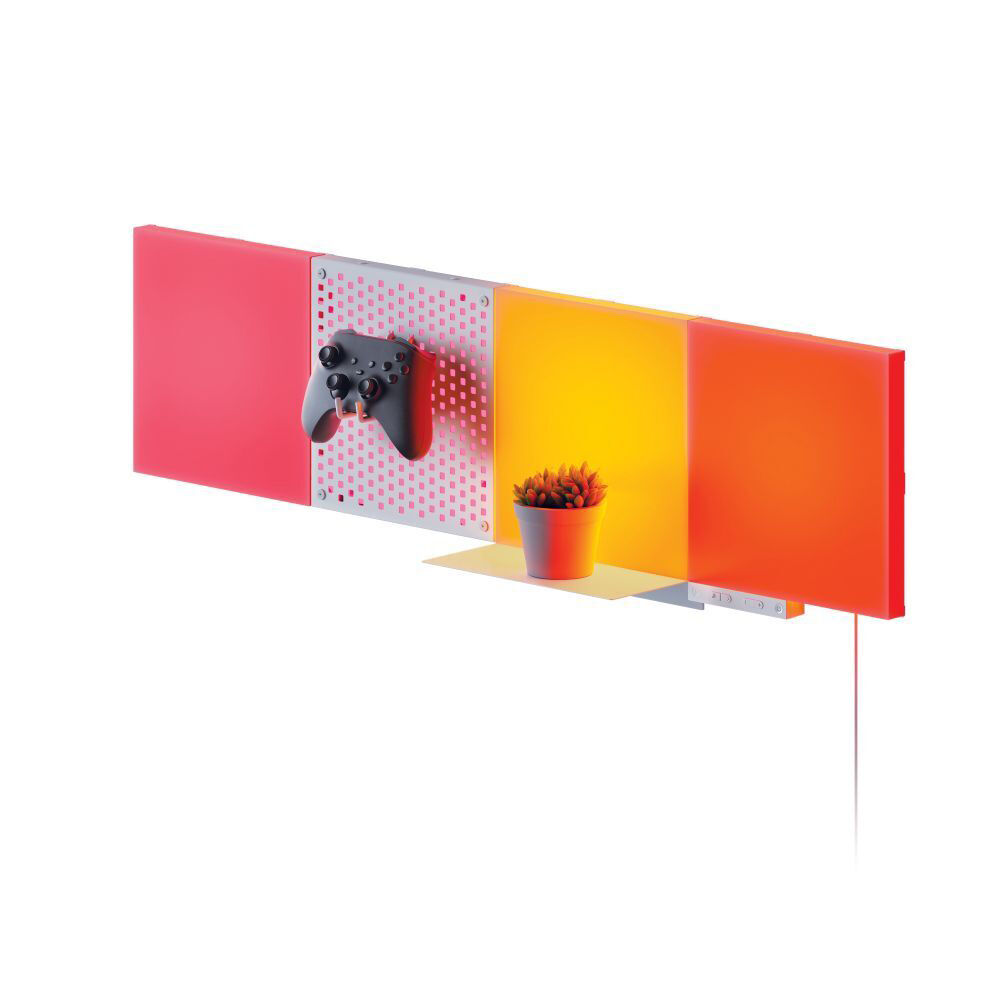

Nanoleaf Blocks Starter Kit Light Panels/Pegboard Combo

Build your lighting display YOUR way with Nanoleaf Blocks! Create your one-of-a-kind illuminated display with different panel styles and add-ons. Customise with colours and lighting effects, and utilise the new Shelves and Pegboards to show off your favourite items that make you YOU - like your gaming accessories, collectibles, plants, and more!

With modular light panels, pegboards, and shelves that can be mixed and matched, you have total design freedom to create a statement lighting piece that doubles as a versatile display and storage solution.

Mix and match from 5 Blocks styles for a lighting layout that's totally unique to you. Take customisation one step further by creating your own colour palettes and animated Scenes.

Sleek square panels with even edge-to-edge lighting give you complete creative flexibility to go ultra minimalistic or take it to the max.

Note: This kit contains components that must be screw-mounted onto the wall.

  • Edge to edge illumination
  • Includes Light Pegboard & Shelf for display and organisation
  • App, voice, manual control
  • Shelf weight limit: 1.5kg
  • Pegboard weight limit: 3kg

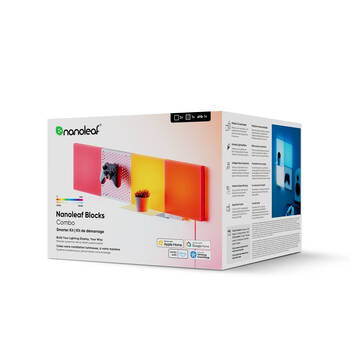

What's in the box:

  • 3 x Squares
  • 1 x Light Pegboard
  • 2 x Pegboard Hooks
  • 1 x Shelf
  • 1 x Shelf Cover
  • 1 x Controller
  • Mounting Plates & Tapes
  • Screws
  • Rigid Linkers
  • 100VAC-240VAV Power Supply

Specifications:

Dimensions

  • Squares - 231*231*29 mm
  • Small Squares - 115.5*115.5*29 mm
  • Textured Squares - 231*231*29 mm
  • Light Pegboard - 231*231*29 mm
  • Pegboard Hook - 79.5*76.6*5.5 mm
  • Shelves - 229.6 x 70 x 129 mm
  • Shelf Cover - 5.5*79.7*76.6 mm
  • Cable Length - 2m
  • Controller - 230*35*29 mm

Weight

  • Squares (Per Panel) - 550g
  • Small Squares (Per Panel) - 135g
  • Textured Squares (Per Panel) - 492g
  • Light Pegboard (Per Panel) - 900g
  • Pegboard Hook - 26g
  • Shelf - 227.5g
  • Shelf Cover - 26g
  • PSU - 205g
  • Controller - 40g
  • Shelf Load Bearing Capacity - 1.5kg
  • Light Pegboard Load Bearing Capacity - 3kg

Features

  • Screen Mirror - Yes
  • Rhythm Music Visualiser - Yes
  • Sync+ - Yes
  • Connect+ - Yes, panels can be connected with other Nanoleaf Blocks & Nanoleaf Shapes
  • Touch Control - No

General

  • Luminous Per Display
    • Squares: 320 lumens
    • Small Squares: 70 lumens
    • Textured Squares: 230 lumens
    • Light Pegboard: 62 lumens
  • Communication Protocol - WiFi (2.4 GHz b/g/n)
    • NOTE: 5 GHz networks are not compatible with Nanoleaf products.
  • Dimmability - Yes (via Nanoleaf App, Voice, Controller)
  • Mounting Type
    • Squares: Double-sided mounting tape (included)
    • Small Squares: Double-sided mounting tape (included)
    • Textured Squares: Double-sided mounting tape (included)
    • Light Pegboard: Must be screw mounted (screws provided)
    • Shelves: Must be screw mounted (screws provided)
  • The Nanoleaf App - Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).
  • Thread Compatibility - Can act as a Thread Border Router with a future firmware update
  • Compabitility - Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma

Colour

  • Colour Temperature -1200K-6500K
  • Colour Channel Configuration - RGBW
  • Max Colours - More than 16 million
  • Colour Rendering Index (CRI) - 80

Power

  • Voltage100 - 240V AC
  • Max Panels per Power Supply (42W)
    • Squares: 17
    • Light Pegboard: 17
    • Textured Squares: 17
    • Small Squares: 60
  • Max Panels per Controller - 500
  • Individual Power Consumption Values - Bigger layouts may require additional Power Supply Units. Use the following values to calculate the maximum number of panels per PSU:
    • Squares: 3W
    • Light Pegboard: 3W
    • Textured Squares: 3W
    • Small Squares: 0.8W

Use environment

  • Lifetime - 25,000 hrs
  • Operating temperature range - 0 to 40
  • Usage Scenario - Indoor
  • IP Rating - IP20

Includes:
1 x Nanoleaf Blocks Starter Kit Light Panels/Pegboard Combo

(N8100K05-5CL)

12 Months

Model # N8100K05-5CL
Barcode # 4895263600755
Brand NANOLEAF
Shipping Weight 4.8000kg
Shipping Width 0.250m
Shipping Height 0.240m
Shipping Length 0.250m
Shipping Cubic 0.014700000m3
Type Lighting Kit
