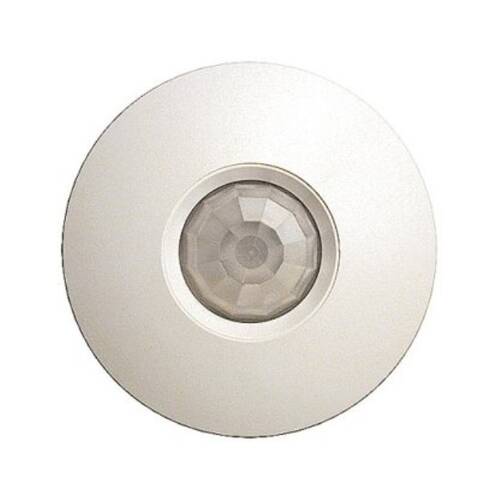

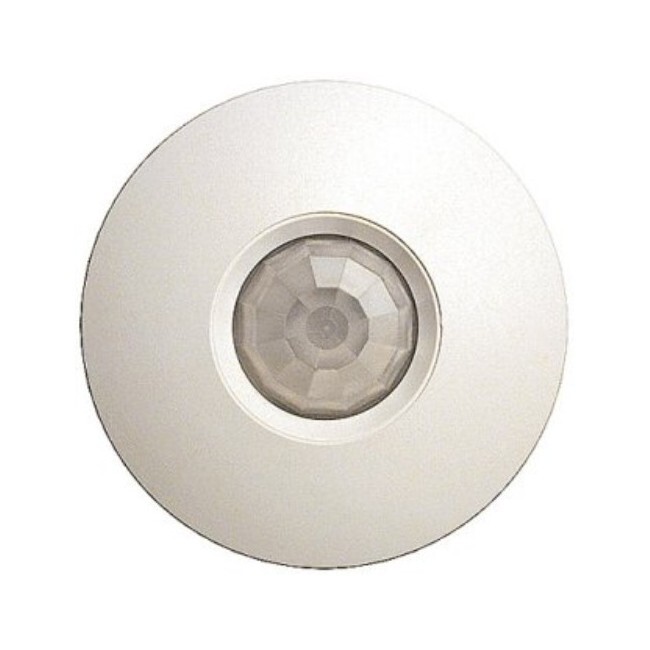

QUANTUM 360 DEGREE PIR DETECTOR NESS IR360

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The Quantum 360 ceiling mount detector, for complete and reliable 360° coverage. Provides coverage of 12-metre diameter at floor level when installed on a standard2.4 metre ceiling.

Utilising the latest SMD technology and incorporating the proven Quantum design with selectable Pulse Count and sensitivity the IR360 provides outstanding performance at an unbelievable price.

Features:
Ceiling mount with 360° coverage ideal in crowded rooms where objects may block the view of wall-mounted detectors.
Detection zones: 34 Dual element zones
Coverage: 12.8m x 8M
Mounting height: 2.1M to 5M
Superior false alarm protection
Adjustable range (Hi-Lo Shunt)
Selectable pulse count (1-2, 3-4)
RFI Protection
Walk test LED
Temperature Change Protection
N/C alarm output
12V DC operation
Tamper protection

Specifications:
Dimensions: 102mm diameter x 30mm
Mounting height: 2.4m ceiling (recommended)
Detection zones: 33 dual element zones
Sensor: Dual element pyro-electric
Operating voltage: 9–15 VDC
Current draw: 15mA
R.F.I. Immunity: >15V/m @ 10-1000MHz
Relay output: Normally closed

(Q100-048)

Standard Consumer Warranty
The Quantum 360 ceiling mount detector, for complete and reliable 360° coverage. Provides coverage of 12-metre diameter at floor level when installed on a standard2.4 metre ceiling. Utilising the latest SMD technology and incorporating the proven Quantum design with selectable Pulse Count and sensitivity the IR360 provides outstanding performance at an unbelievable price. Features: Ceiling mount with 360° coverage ideal in crowded rooms where objects may block the view of wall-mounted detectors. Detection zones: 34 Dual element zones Coverage: 12.8m x 8M Mounting height: 2.1M to 5M Superior false alarm protection Adjustable range (Hi-Lo Shunt) Selectable pulse count (1-2, 3-4) RFI Protection Walk test LED Temperature Change Protection N/C alarm output 12V DC operation Tamper protection Specifications: Dimensions: 102mm diameter x 30mm Mounting height: 2.4m ceiling (recommended) Detection zones: 33 dual element zones Sensor: Dual element pyro-electric Operating voltage: 9–15 VDC Current draw: 15mA R.F.I. Immunity: >15V/m @ 10-1000MHz Relay output: Normally closed
Model # Q100-048
Barcode # 0601549940149
Brand NESS
Shipping Weight 0.0900kg
Shipping Width 0.120m
Shipping Height 0.040m
Shipping Length 0.120m
Shipping Cubic 0.000576000m3
Type Motion Sensor
