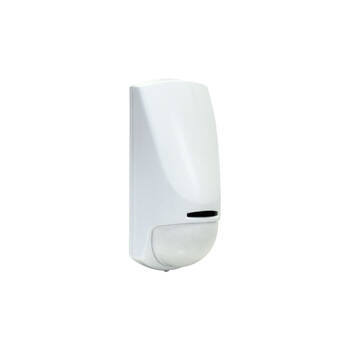

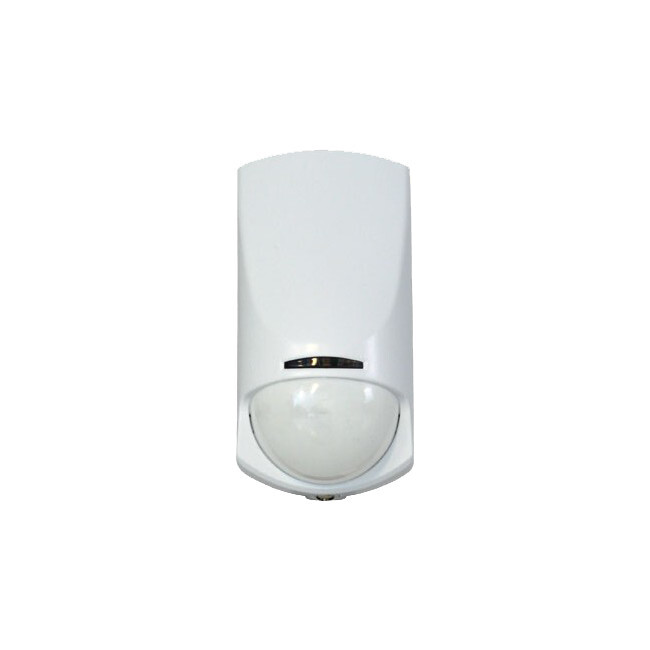

DIGITAL DUAL MICROWAVE PIR XDT200H

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Digital Dual Microwave PIR XDT200H is a motion detector specially designed for protected areas of harsh environment or where added protection against false alarms is required. "

  • Digital signal analysis

  • Range 15m

  • Detection angle of 100°

  • Pulse counter

  • Temperature compensation

  • White light protection

  • Bypassable LED

  • 3 signalling LEDs

  • Anti-opening and anti-dislodgement protection

  • Predisposed for EOL resistor

  • AND/OR function alarm trigger

  • Smart function

  • X Band microwave detection

  • Operating temperature: 0°C ÷ +50°C

  • Power supply voltage: 9V ÷ 16V dc

  • Current absorbed: 20mA @ 12V dc

  • Installation height: 2.2m

  • Dimensions: 120x60x44 mm

(100-205)

Standard Consumer Warranty
Digital Dual Microwave PIR XDT200H is a motion detector specially designed for protected areas of harsh environment or where added protection against false alarms is required. " Digital signal analysis Range 15m Detection angle of 100° Pulse counter Temperature compensation White light protection Bypassable LED 3 signalling LEDs Anti-opening and anti-dislodgement protection Predisposed for EOL resistor AND/OR function alarm trigger Smart function X Band microwave detection Operating temperature: 0°C ÷ +50°C Power supply voltage: 9V ÷ 16V dc Current absorbed: 20mA @ 12V dc Installation height: 2.2m Dimensions: 120x60x44 mm
Model # 100-205
Barcode # 8050612422402
Brand NESS
Shipping Weight 0.1400kg
Shipping Width 0.130m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000624000m3
Type Motion Sensor
