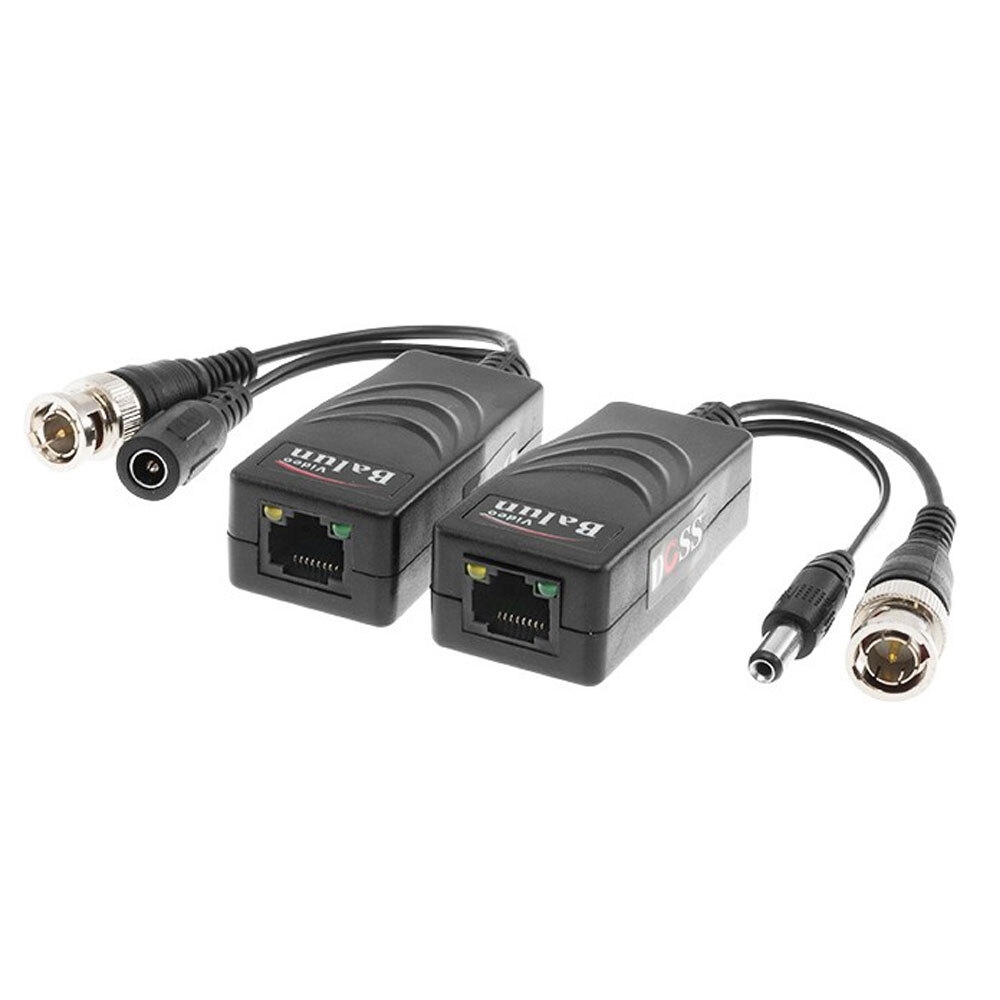

250M RJ45 Jack Passive Video & Power Balun

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

250M RJ45 Jack Passive Video & Power Balun is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effecitve UTP unshielded Twisted Paried cable.

The Doss VPB45HD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable.

The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the samewire bundle as telephone, datacom or low-voltage power circuits.

Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quanlity video signals.

  • Single channel HD video & Power transmitter & receiver

  • Real-time transmission over UPT cat5e/ 6

  • NTSC, PAL & SECAM video format compatiable

  • Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras

  • Colour video max up to 440m for HD-CVI 720P camera

  • Colour video max up to 210m for TVT HD-TVI 720P camera

  • Colour video max up to 300m for AHD 720P camera

  • Male BNC with extended 150mm mini-coax pigtail

  • RJ45 jack for UTP cable

  • Built- in TVS for surge protection

  • Wave filter design, Anti-static design

  • Lightning protection design Grade: III

  • 60 dB crosstalk and noise immunity

  • ABS engineering plastic housing

Applications

  • Security Monitoring System

  • Multimedia Network Teaching System

  • Medical Monitoring Display System

  • Industrial Automation Control System

  • Banking, securities, financial information display system

  • Remote Network Server Monitoring

  • Department Store Security

  • Casino Security

  • Hospitals, Airports and banks

  • School Campuses

​Includes:

  • 1x Jack Video & Power (Male) Balun

  • 1x Jack Video & Power (Power) Balun

​Please note: CAT 5e Cable is not included.

(VPB45HD)

This item comes with a 12-month warranty.

250M RJ45 Jack Passive Video & Power Balun is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effecitve UTP unshielded Twisted Paried cable. The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the samewire bundle as telephone, datacom or low-voltage power circuits. Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quanlity video signals. Single channel HD video & Power transmitter & receiver Real-time transmission over UPT cat5e/ 6 NTSC, PAL & SECAM video format compatiable Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras Colour video max up to 440m for HD-CVI 720P camera Colour video max up to 210m for TVT HD-TVI 720P camera Colour video max up to 300m for AHD 720P camera RJ45 jack for UTP cable ​Includes: 1x Jack Video & Power (Male) Balun 1x Jack Video & Power (Power) Balun ​Please note: CAT 5 Cable is not included. Colour: Black Video Format PAL, NTSC, SECAM Operating Frequency: DC to 42MHz Common-mode/Differential-mode rejection: 15KHz to 42MHz& 60 dB type Impedance: Coax, Male BNC75Ω unbalanced UTP, RJ45 100Ω balanced Network Wiring: One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) DC Loop Resistance: 52 ohms per 1,000ft (18 ohms per 100m) Differential Capacitance: 19 pF/ft max (62 pF/m max) Video input/ output: Male BNC connector Video input/ output: RJ45 Jack Housing ABS engineering plastic Dimensions(L*W*H): 38.4*18.6*19.5mm (BNC connector excluded) Net Weight: 40g Operating Temperature: −20°C ~ 70° C Storage Temperature: −40°C ~ 150°C

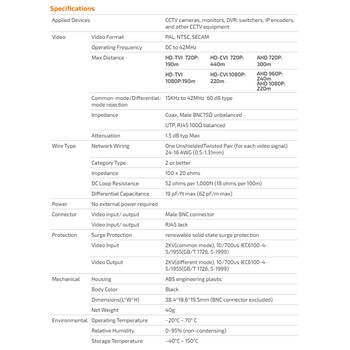

  • Colour: Black

  • Video Format PAL, NTSC, SECAM

  • Operating Frequency: DC to 42MHz

  • Common-mode/Differential-mode rejection: 15KHz to 42MHz  60 dB type

  • Impedance: Coax, Male BNC75Ω unbalanced UTP, RJ45 100Ω balanced

  • Attenuatio: 1.5 dB typ Max

  • Max Distance HD-TVI  720P: 190m/HD-CVI  720P: 440m/AHD 720P: 300m/HD-TVI 1080P:190m/HD-CVI 1080P: 220m/AHD 960P: 240m/AHD 1080P: 220m

  • Network Wiring: One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)

  • Category Type: 2 or better

  • Impedance: 100 ± 20 ohms

  • DC Loop Resistance: 52 ohms per 1,000ft (18 ohms per 100m)

  • Differential Capacitance: 19 pF/ft max (62 pF/m max)

  • Video input/ output: Male BNC connector

  • Video input/ output: RJ45 Jack

  • Surge Protection: renewable solid state surge protection

  • Video Input: 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

  • Video Output": 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

  • Housing ABS engineering plastic

  • Dimensions(L*W*H): 38.4*18.6*19.5mm (BNC connector excluded)

  • Net Weight: 40g

  • Operating Temperature: −20°C ~ 70° C

  • Relative Humidity: 0~95% (non-condensing)

  • Storage Temperature: −40°C ~ 150°C

Model # VPB45HD
Barcode # 9328202017895
Brand GENERIC
Shipping Weight 0.1000kg
Shipping Width 0.110m
Shipping Height 0.045m
Shipping Length 0.140m
Shipping Cubic 0.001000000m3
Type Cables
