CP Battery Pack OL6KERTHD

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Designed for data center and critical applications, the Extended Battery Module (EBM) Series can be used in conjunction with compatible UPS systems to provide prolonged system runtime during a power interruption.

With the built-in charger design, the EBMs can charge directly from the utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.

The products also feature hot-swappable battery packs, allowing users to safely remove and replace battery packs without affecting connected loads.

Features:

  • Rack/Tower Convertible Configurations

  • Sealed Lead-acid Batteries

  • Built-in charger for Extended Battery Module (EBM)

  • Hot-swappable Batteries

  • EBM Expansion Capability

  • Metal Housing

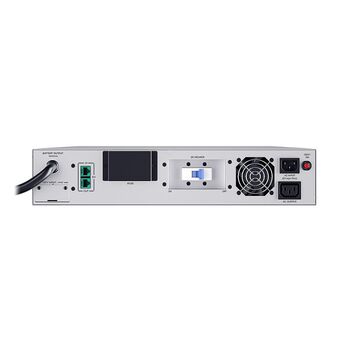

Product Callouts:

  • EBM DC Output Cable

  • EBM DC Input Connector

  • BM Port

  • On-board Replaceable Fuse Cover

  • DC Breaker

  • AC Fast Charge Input

  • AC Fast Charge Outlet

  • AC Circuit Breaker

Includes:

  • 1x CP Battery Pack OL6KERTHD

(CPBPE144VL2U01)

This item comes with a 2-year warranty.

General

  • Nominal Output Voltage (Vdc): 144

  • Rated Output Current (A): 55

Battery

  • Battery Type: Sealed Lead-acid

  • Built-in Charger: Yes

  • Typical Recharge Time (Hours): 4

  • User-replaceable: Yes

  • Hot-swappable: Yes

  • Replacement Battery Pack: RBP0145

  • Replacement Battery Pack Quantity (pcs): 2

  • Compatible UPS Models: OL5KERTHD, OL6KERTHD

Physical

  • Form Factor: Rack/Tower

Physical Size

  • Dimensions (WxHxD) (mm.): 433 x 86.5 x 720

  • Weight (kg.): 44

  • Installed Rack Height (U): 2

Environmental

  • Operating Temperature (°C): 0 ~ 40

  • Operating Relative Humidity (Non-condensing) (%): 0 ~ 90

Certifications

  • Certifications: CE, EAC, RCM

  • RoHS: Yes

Model # CPBPE144VL2U01
Barcode # 4712856275575
Brand CYBERPOWER
Shipping Weight 50.0000kg
Shipping Width 0.600m
Shipping Height 0.110m
Shipping Length 0.340m
Shipping Cubic 0.022110000m3
Type Battery
