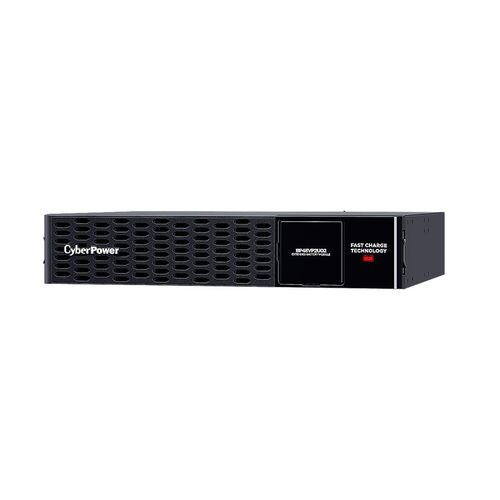

CP Battery Pack 48VDC 70A

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Designed for data center and critical applications, the Extended Battery Module (EBM) Series can be used in conjunction with compatible UPS systems to provide prolonged system runtime during a power interruption.

With the built-in charger design, the EBMs can charge directly from the utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.

The products also feature hot-swappable battery packs, allowing users to safely remove and replace battery packs without affecting connected loads.

Features:

  • Rack/Tower Convertible Configurations

  • Sealed Lead-acid Batteries

  • Built-in charger for Extended Battery Module (EBM)

  • Hot-swappable Batteries

  • EBM Expansion Capability

  • Metal Housing

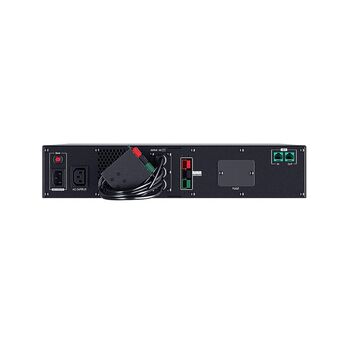

Product Callouts:

  • Input Circuit Breaker

  • AC Inlet

  • AC Outlet

  • BM Port

  • Extended Battery Module Connector Socket

  • Extended Battery Module Connector Plug

  • On-Board Replaceable Fuse Cover

Includes:

  • 1x CP Battery Pack 48VDC 70A

(CPBP48VP2U02)

This item comes with a 2-year warranty.

General

  • Nominal Output Voltage (Vdc): 48

  • Rated Output Current (A): 70

Battery

  • Battery Type: Sealed Lead-acid

  • Built-in Charger: Yes

  • Typical Recharge Time (Hours): 6

  • User-replaceable: Yes

  • Hot-swappable: Yes

  • Replacement Battery Pack: RBP0129

  • Replacement Battery Pack Quantity (pcs): 2

  • Compatible UPS Models: PR1500ERTXL2U, PR2000ERTXL2U, PR2200ERTXL2U, PR3000ERTXL2U

Physical

  • Form Factor: Rack/Tower

Physical Size

  • Dimensions (WxHxD) (mm.): 433 x 86.5 x 500

  • Weight (kg.): 30

  • Installed Rack Height (U): 2

Environmental

  • Operating Temperature (°C): 0 ~ 40

  • Operating Relative Humidity (Non-condensing) (%): 0 ~ 95

Certifications

  • Certifications: CE, FCC Class B, UL, RCM, VCCI

  • RoHS: Yes

Model # CPBP48VP2U02
Barcode # 4712856277425
Brand CYBERPOWER
Shipping Weight 37.0000kg
Shipping Width 0.500m
Shipping Height 0.090m
Shipping Length 0.430m
Shipping Cubic 0.018836000m3
Type Battery
