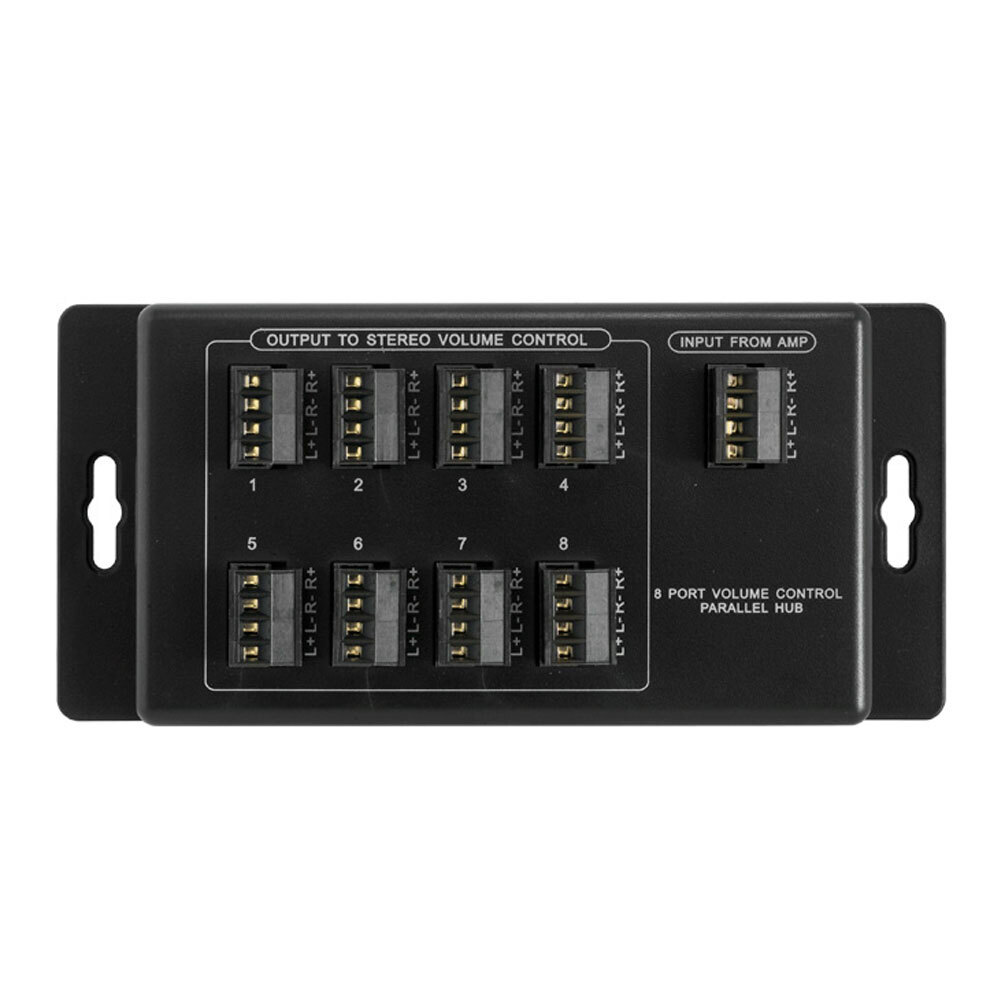

Pro2 Pro1257 8 Way Volume Control Parallel Speaker Hub - Wall Mountable & Small/Compact

This item comes with 12 month Warranty

Pro2 Pro1257 8 Way Volume Control Parallel Speaker Hub - Wall Mountable & Small/ Compact 8-way speaker hub Volume control in up to 8 rooms Lightweight Screw terminals handle wire sizes from 24 to 12 gauge Wall mountable Small size and compact Large detachable terminal block(supplied) for quick and easy installation in a structured wiring cabinet Dimensions:196L x 94W x 29.5H mm Weight: 198 g Installation considerations: Calculate the impedance Matching settings. Ensure optimal operation of your amplifier or receiver, your speakers must show it a load that it can handle safely and effectively. This requires the use of impedance-matching volume controls. Cautions: Every speaker pair in the system must be connected to impedance-matching volume control and set to the same magnification. When you install the HUB and connect the volume controls to it, double-check the switch on the volume controls to verify that they are set correctly for the impedance load of your speakers.

• Dimensions:196L x 94W x 29.5H mm

• Weight: 198 g

• Installation considerations:

• Calculate the impedance Matching settings.

• Ensure optimal operation of your amplifier or receiver, your speakers must show it a load that it can handle safely and effectively. This requires the use of impedance-matching volume controls.

Cautions:

Every speaker pair in the system must be connected to impedance-matching volume control and set to the same magnification. When you install the HUB and connect the volume controls to it, double-check the switch on the volume controls to verify that they are set correctly for the impedance load of your speakers.
