Australian Monitor Quick Fit 6" Ceiling Speaker 208mm

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The all-new QuickFit coaxial series of ceiling speakers feature 3 new models, each model comprises a 2-way coaxial driver producing high SPL and intelligibility.

The frameless grills provide a modern sleek look sure to please end-users, consultants and architects alike.

If you require a black ceiling speaker it’s as easy as changing the grill.

A black grill for each model can be purchased separately as an accessory.

The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL.

Australian Monitor Quick Fit 6" Ceiling Speaker 208mm is recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications.

Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

EASE®GLL files simulation files are available for QuickFit ceiling speakers. EASE®is a registered trademark of AFMG Technologies GmbH

Key Features

  • 6 inch coaxial high powered driver

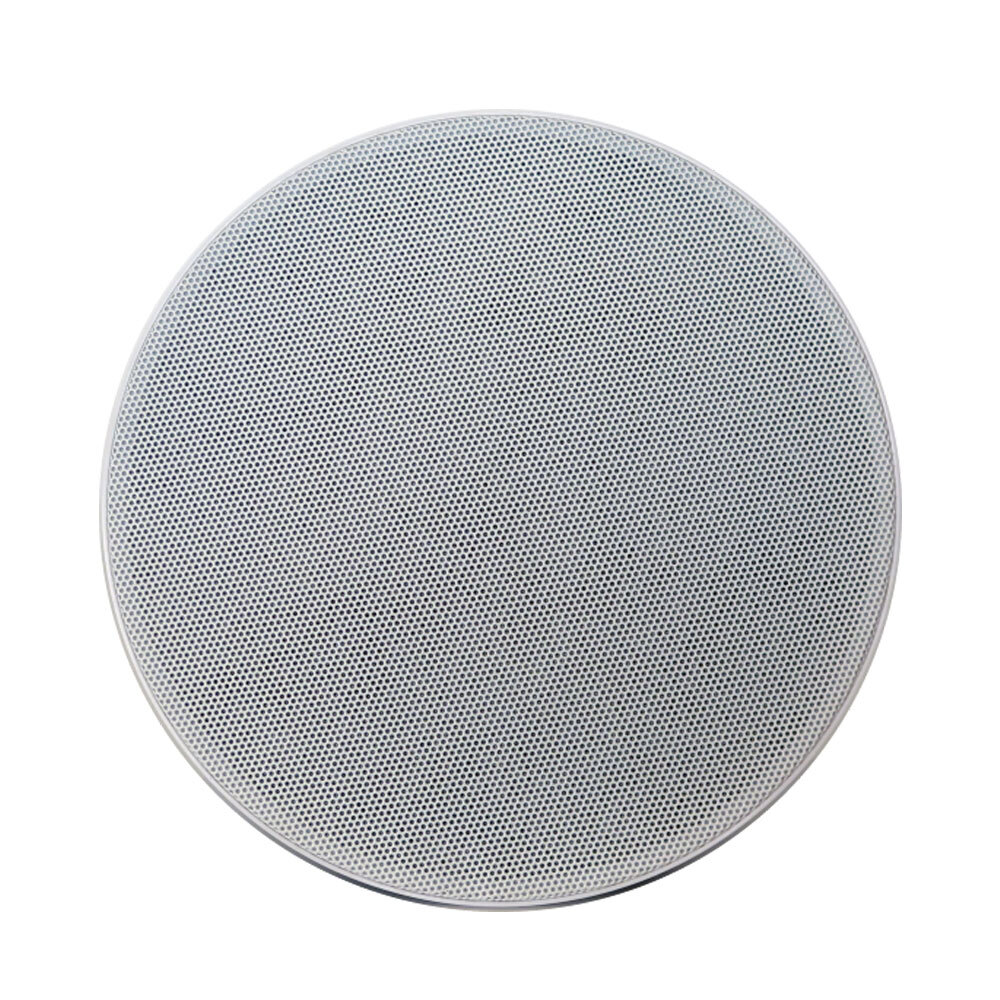

  • QuickFit white frameless powder-coated steel grill

  • 2.5, 5, 10, 20 watt taps @ 100V

  • Evac. capacitor as standard

(QFC6CS)

This item comes with a 12-month warranty.

The all-new QuickFit coaxial series of ceiling speakers feature 3 new models, each model comprises a 2-way coaxial driver producing high SPL and intelligibility. The frameless grills provide a modern sleek look sure to please end-users, consultants and architects alike. If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory. The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL. Australian Monitor Quick Fit 6" Ceiling Speaker 208mm is recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications. Each model also features a supervisory capacitor as standard to allow for evacuation system integration. EASE®GLL files simulation files are available for QuickFit ceiling speakers. EASE®is a registered trademark of AFMG Technologies GmbH Key Features 6 inch coaxial high powered driver QuickFit white frameless powder-coated steel grill 2.5, 5, 10, 20 watt taps @ 100V Evac. capacitor as standard Colour: White AU/NZ Plug Form Factor: Ceiling Tappings: 20W-10W-5W-2.5W-1.25W EASE Model: Yes Powered: Passive Driver Diameter: 6" & 25mm Dimensions Approx.: 23.2 x 9 cm (WxD) Weight Approx.: 1.2 kg Max Continuous Power: 20 W Max Program Power: 40 W Max Peak Power: 80 W SPL 1W/1m: 92dB Max SPL RMS: 105dB Frequency Response (-3dB): 70Hz - 20kHz Dispersion: 100 deg

  • Colour: White

  • AU/NZ Plug

  • Form Factor: Ceiling

  • Tappings: 20W-10W-5W-2.5W-1.25W

  • EASE Model: Yes

  • Powered: Passive

  • Driver Diameter: 6" & 25mm

  • Dimensions Approx.: 23.2 x 9 cm (WxD)

  • Weight Approx.: 1.2 kg

  • Max Continuous Power: 20 W

  • Max Program Power: 40 W

  • Max Peak Power: 80 W

  • SPL 1W/1m: 92dB

  • Max SPL RMS: 105dB

  • Frequency Response (-3dB): 70Hz - 20kHz

  • Dispersion: 100 deg

Model # QFC6CS
Barcode # 9323383019423
Brand AUSTRALIAN MONITOR
Shipping Weight 1.4000kg
Shipping Width 0.240m
Shipping Height 0.110m
Shipping Length 0.240m
Shipping Cubic 0.006336000m3
Type Ceiling Speaker
