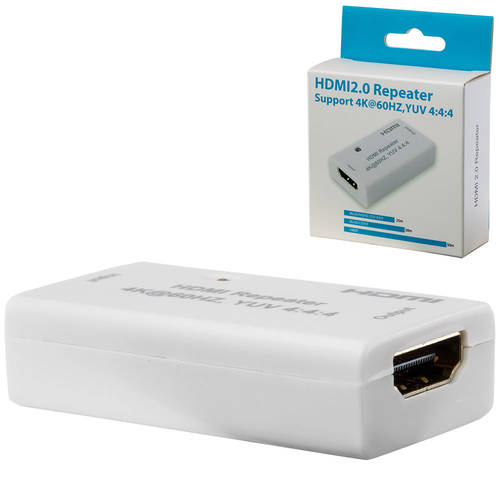

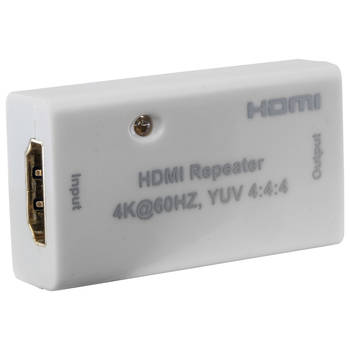

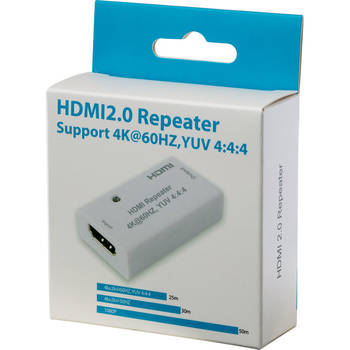

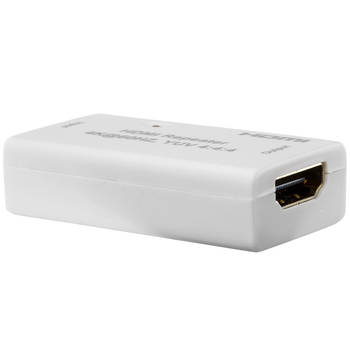

4K 2K 1080P HDMI Extender Repeater Booster Adapter

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

  • Bandwidth upto 18Gbps, Resolution upto 4Kx2K @ 60Hz, YUV4:4:4

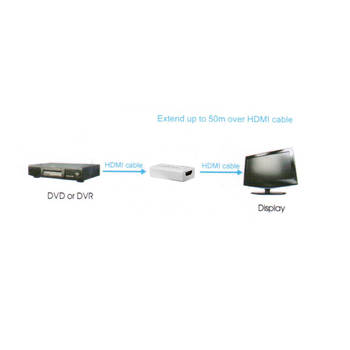

  • Transmitter upto 25m under 4K@60Hz, 30m under 4K@30Hz
  • Supports 3D
  • CEC Pass Through
  • HDCP2.2/1.4 Compliant
  • Compact size
  • Power consumption is less than 1W
  • No power supply needed

(HR04)



This item comes with 12 month Warranty

Bandwidth upto 18Gbps, Resolution upto 4Kx2K @ 60Hz, YUV4:4:4 Transmitter upto 25m under 4K@60Hz, 30m under 4K@30Hz Supports 3D CEC Pass Through HDCP2.2/1.4 Compliant Compact size Power consumption is less than 1W No power supply needed Specifications Operating Temperature Range    -5 to +35°C (+23 to +95°F) Operating Humidity Range    5 to 90%RH (No Condensation) Input Video Signal    0.5-1.0 Volts P-P Input DDC Signal    5 volts p-p(TTL) Data Transfer Speed Rate    18Gbps(Max) Supported Video Format    DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p / 4Kx2K@60Hz/YUV 4:4:4 / 3D video supported Video Output    HDMI Supported Video Color Format    xv-YCC/deep color 36bit Supported Audio Format    DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD Power Consumption    1W (Max) Dimension(L*W*H)     49.2*27*13.2mm Net Weight    0.01g This item comes with
  • Operating Temperature Range    -5 to +35°C (+23 to +95°F)
  • Operating Humidity Range    5 to 90%RH (No Condensation)
  • Input Video Signal    0.5-1.0 Volts P-P
  • Input DDC Signal    5 volts p-p(TTL)
  • Data Transfer Speed Rate    18Gbps(Max)
  • Supported Video Format    DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p / 4Kx2K@60Hz/YUV 4:4:4 / 3D video supported
  • Video Output    HDMI
  • Supported Video Color Format    xv-YCC/deep color 36bit
  • Supported Audio Format    DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
  • Power Consumption    1W (Max)
  • Dimension(L*W*H)
  • 49.2*27*13.2mm
  • Net Weight    0.01g



Model # HR04
Barcode # 9328202020024
Brand PRO2
Shipping Weight 0.0300kg
Shipping Width 0.700m
Shipping Height 0.300m
Shipping Length 0.700m
Shipping Cubic 0.147000000m3
Type AV Adapter/Converter
