AV Demodulator Composite SVideo to VGA Output Pip & Pop

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review


The ADM5 offers the perfect solution for all your LCD, PDP and projector to be a multi-media display. It also lets you turn any display into a high definition full screen TV and multi-media display centre. The ADM5 offers multiple video input/output connections compatible with modern equipment like DVD players, digital cameras, game consoles and more...

Features:

  • 1920x1200, 1920x1080 Support
  • PIP (Picture in Picture)
  • POP (Picture on Picture)
  • Supply High Resolution
  • Compatible with monitors, LCD and projectors with resolutions up to 1920x1200 for 24bit RGB true color.
  • System Support
  • Supports the following TV systems: NTSC, PAL-I, PAL-D/K, PAL-B/G, SECAM-L, SECAM-D/K and SECAM B/G
  • Great TV Video Technology
  • Supports de-interlace and progressive scan
  • Superior Noise Reduction
  • Video Entertainment on your PC
  • Supports: RF, S-Video, Composite RCA, VGA
  • Easy to use remote control
  • Auto Scanning
  • All channels scan of TV broadcast ad cable TV channels. Also supports full channels with fine tuning function
  • Sleep timer
  • Back Mounting

(ADM5)

This item comes with 12 month Replacement Warranty



Frequency


  • 55.25~801.25MHz(NTSC) / 48.25-855.25MHz(PAL)

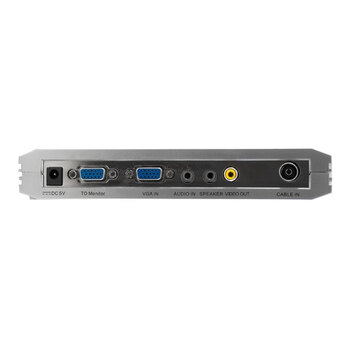

Connector

Input:


  •  75 ohm Coaxial TV antenna/cable

  •  S-Video

  •  One composite video, RCA left/right for Audio in

  •  3.5mm Audio (from sound card)

  •  15-pin H-D female connector (from VGA card)

Output Video Output


  •  3.5mm Audio Jack(to speaker)

  •  15-pin H-D female connector (from VGA card)

Power


  •  DC-In Jack




Controls


  • Physical: POWER, INPUT, CH+, CH-, VOL+, VOL-

  • OSD: RE-SET, TINT, Brightness

  • Remote Control: 24-Key IR Remote Control



Video Output Mode:

Resolution @ refresh rate:


  •  800 x 600 @60Hz

  •  1024 x 768 @ 60Hz / 75Hz

  •  1280 x 720 @ 60Hz / 75Hz

  •  1280 x 1024 @ 60Hz / 75Hz

  •  1440 x 900 @ 60Hz / 75Hz

  •  1600 x 900 @ 60Hz

  •  1680 x 1050 @ 60Hz

  •  1920 x 1080 @ 60Hz

  •  1920 x 1200@ 60Hz



Power:


  • Input: 100-120 VAC, 60Hz 220-240 VAC, 50Hz

  • Output: 5 Vdc / 1A(U.L, CE)

  • Type: Power Adapter

Regulations:


  •  FCC Class B, CE

Accessories:


  •  Main unit, plastic stand, remote control

  •  AC/DC adapter, VGA cable, audio cable

  •  AAAx2 batteries, Manual



Model # ADM5
Barcode # 9328202012784
Brand PRO2
Shipping Weight 0.8500kg
Shipping Width 0.290m
Shipping Height 0.230m
Shipping Length 0.080m
Shipping Cubic 0.005336000m3
Type AV Adapter/Converter
