Stereo Audio Power Pa Amplifier 3.5Mm Line/ Microphone Inputs

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

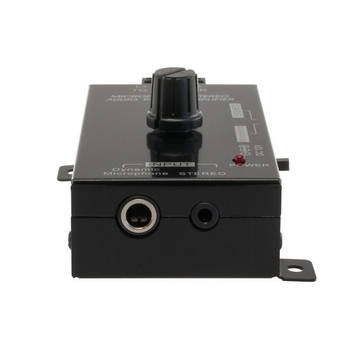

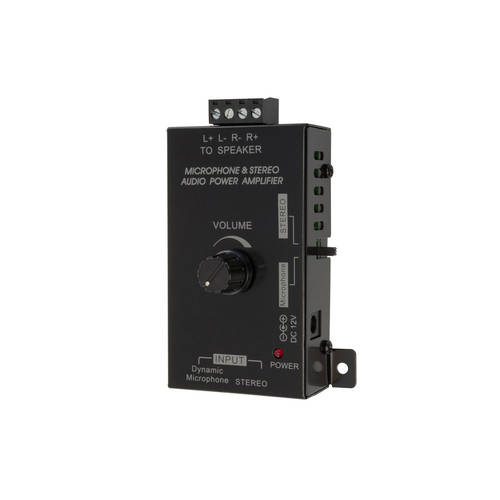

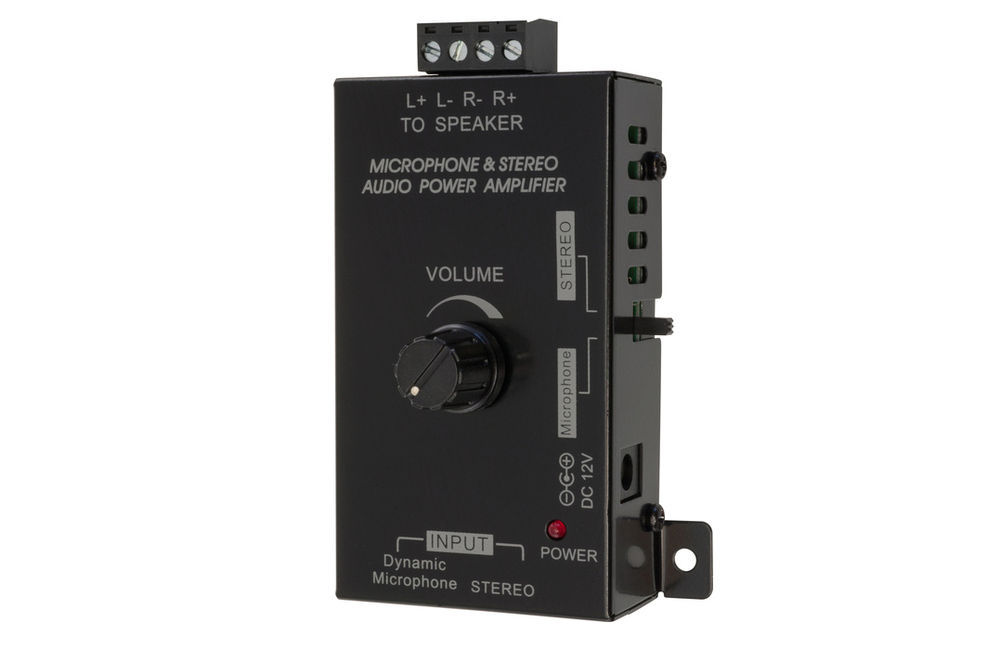

Use the PRO1328 to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328is perfect for shop display installations, where basic audioamplification and compact size is required.


If your Flat Screen TV's built-in speaker output is belowpar, the PRO1328 can provide an elegant solution to add you own passive speakers for clearer and more powerful listening!

With the abilty to switch from line-level to dynamic microphone input, the PRO1328 can be used to give your shop displays and demonstrations more reach!

  • Switch between 3.5mm (line) or microphone inputs
  • Discrete and compact Decora-style wall-plate design
  • Speaker screw terminals handle wire sizes from 24 to 12 gauge
Ideal for use with:
  • DVD players
  • TV's
  • Indoor/Outdoor Speakers
  • In-ceiling/in-wall Speakers





(PRO1328)

This item comes with 12 month Warranty



  • Inputs: Dynamic microphone or stereo audio line level
  • Microphone pre-Amplifier gain: 40dB
  • Power Amplifier Type: Stereo Class-D
  • Output power: 15W(rms) per channel (@ RL=4 ohm)
  • THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
  • Minimum Load Resistance: 4 ohm
  • Includes Speaker Protection circuit.
  • Power Source: 12 VDC / 2A
  • Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
  • Net Weight (Unit only): 160 g
Model # PRO1328
Barcode # 9328202015389
Brand PRO2
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.050m
Shipping Cubic 0.000500000m3
Type Power Amplifier
