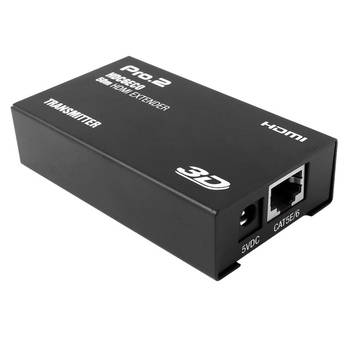

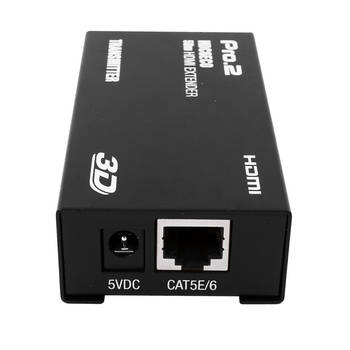

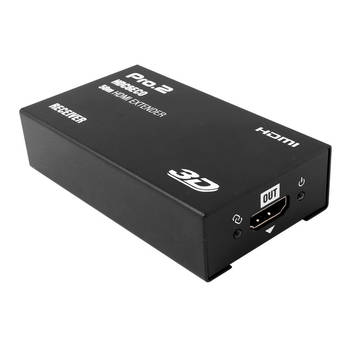

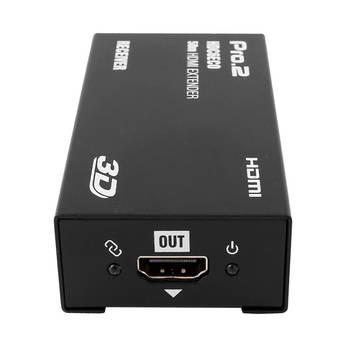

PRO2 HDMI over Single CAT6 Extender

Works great

Purchased this through eBay and am using this to view our CCTV images through a TV. Works well using Cat 6 cable over a distance of 20 metres and the image is clear.

PRO2 HDMI over Single CAT6 Extender

Excellent product PRO2 HDMI over Single CAT6 Extender economical to use worked as specified

Write a product review

Extend any audio/video HDMI connection up to 50M via between an HDMI source computer, Blu-ray player, media streamer, or gaming console to an HDMI via single Cat5e/6 without signal loss with PRO2 HDMI over Single CAT6 Extender.

Supports high definition video up to 1080P and 3D compatible, it also supports Dolby True-HD, DTS-HD Master Audio.

Guarantees no signal loss for flawless data transfer with speed of 6.75 Gbps.

Ideal application for classrooms, boardrooms, conference room projectors, gaming or video production.

Enjoy watching videos with lesser cable and play your HD videos on multiple displays using PRO2 HDMI over Single CAT6 Extender!

Features:

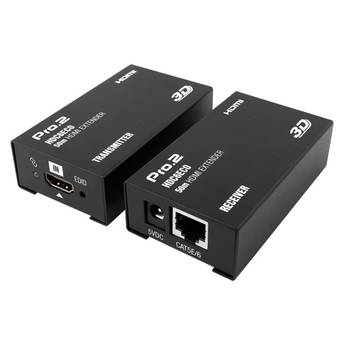

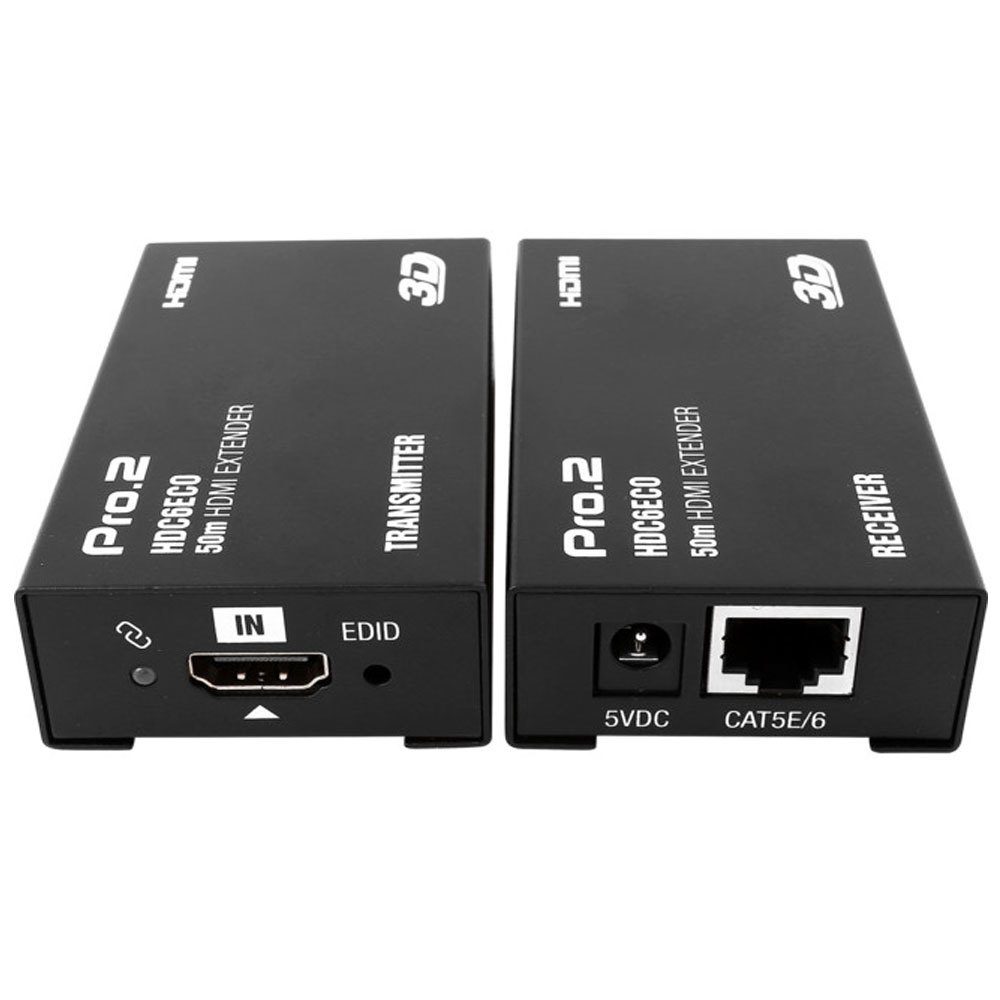

  • Each set includes one transmitter and one receiver
  • Easy installation, no need to do extra setting
  • Transmit HDMI signal over 50m via single Cat5e/6 without signal loss
  • The CAT5e/6 follows standard of IEEE-568B
  • Support high definition resolution up to Full HD 1080p
  • Support Dolby True-HD, DTS-HD Master audio
  • EDID reading and saving from display
  • Bandwidth can be up to 6.75 Gbps
  • Deepcolour up to 36 bit
  • 3D compatible
  • 2x DC 5V 1A power supply (included)
  • 4K/2K incompatible

(HDC6ECO)

This item comes with a 12-month warranty.

Extend any audio/video HDMI connection up to 50M via between an HDMI source computer, Blu-ray player, media streamer, or gaming console to an HDMI via single Cat5e/6 without signal loss with PRO2 HDMI over Single CAT6 Extender.    Supports high definition video up to 1080P and 3D compatible, it also supports Dolby True-HD, DTS-HD Master Audio. Guarantees no signal loss for flawless data transfer with speed of 6.75 Gbps. Ideal application for classrooms, boardrooms, conference room projectors, gaming or video production.  Enjoy watching videos with lesser cable and play your HD videos on multiple displays using PRO2 HDMI over Single CAT6 Extender! Features: Each set includes one transmitter and one receiver Easy installation, no need to do extra setting Transmit HDMI signal over 50m via single Cat5e/6 without signal loss The CAT5e/6 follows standard of IEEE-568B Support high definition resolution up to Full HD 1080p Support Dolby True-HD, DTS-HD Master audio EDID reading and saving from display Bandwidth can be up to 6.75 Gbps Deepcolour up to 36 bit 3D compatible 4K/2K incompatible Operating Temperature Range: −5 to +35°C Operating Humidity Range: 5 to 90%RH (No Condensation) Input Video Signal: 0.5-1.0 Volts P-P Input DDC Signal: 5 volts p-p(TTL) Support Video Format: DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P 3D video Video Output: HDMI ,HDCP Support Audio Format: DTS-HD Master Audio Dolby True-HD etc. Transmission Distance: 1080P 8-bit 50m (Maximum) over single CAT5E/6 /24AWG/Solid Power consumption: 5 watts (Maximum) Dimension (L×W×H): 83x48x25mm Net Weight: 250g (Pair)

  • Operating Temperature Range: −5 to +35°C

  • Operating Humidity Range: 5 to 90%RH (No Condensation)

  • Input Video Signal: 0.5-1.0 Volts P-P

  • Input DDC Signal: 5 volts p-p(TTL)

  • Support Video Format: DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P 3D video

  • Video Output: HDMI ,HDCP

  • Support Audio Format: DTS-HD Master Audio Dolby True-HD etc.

  • Transmission Distance: 1080P 8-bit 50m (Maximum) over single CAT5E/6 /24AWG/Solid

  • Power consumption: 5 watts (Maximum)

  • Dimension (L×W×H): 83x48x25mm

  • Net Weight: 250g (Pair)

Model # HDC6ECO
Barcode # 9328202018540
Brand PRO2
Shipping Weight 0.6000kg
Shipping Width 0.200m
Shipping Height 0.060m
Shipping Length 0.150m
Shipping Cubic 0.001800000m3
Type HDMI Extender
