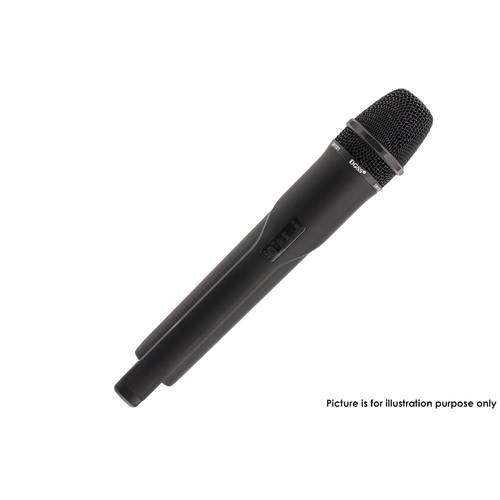

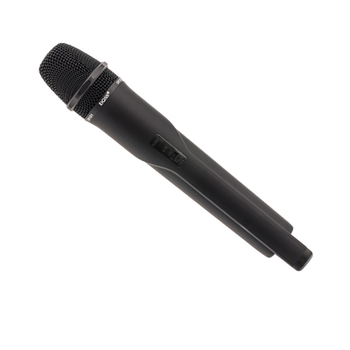

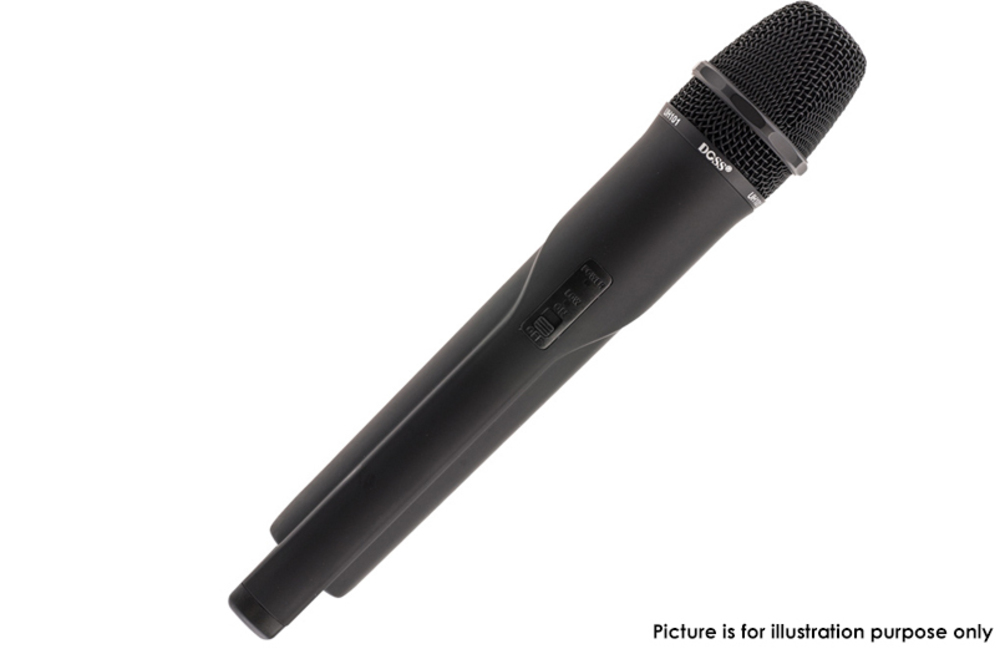

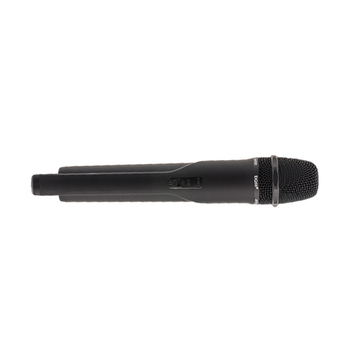

Uh101 Wireless Handheld Microphone Only For Pm55Uhf / Uhf101 / Um401 / Pm55B

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review



Suits PM55UHF PM55B, UHF101 and UHF401 (UM401) Receivers

  • Working range adjustable
  • 16 channels selectable
  • Specifications


(UH101)

This item comes with 12 month Warranty

Suits PM55UHF PM55B, UHF101 and UHF401 (UM401) Receivers Working range adjustable 16 channels selectable Specifications System Carrier frequency UHF 654-694 MHz Stability ± 0.005% (at 25°C) Ambient temperature -10°C ~ +50°C Max deviation ± 70KHz with level limiting Dynamic range 110dB S/N ratio >110dB T.H.D. >0.5% Pre/De-Emphasis 50µs Squelch Tone control and noise lock dual squelch Frequency response 30Hz - 20KHz Operating range 100m (approximately 300') under typical conditions Microphone Type Dynamic microphone Antenna Built-in RF output 15mW RF output 45dBc Battery Two 1.5V AA battery or 1.2V AA rechargeable battery Battery life 8 Hours Dimensions Ø52 x 240mm handheld Safety Approvals FCC, CE Weight 260g



System

  • Carrier frequency UHF 654-694 MHz
  • Stability ± 0.005% (at 25°C)
  • Ambient temperature -10°C ~ +50°C
  • Max deviation ± 70KHz with level limiting
  • Dynamic range 110dB
  • S/N ratio >110dB
  • T.H.D. >0.5%
  • Pre/De-Emphasis 50µs
  • Squelch Tone control and noise lock dual squelch
  • Frequency response 30Hz - 20KHz
  • Operating range 100m (approximately 300') under typical conditions

Microphone

  • Type Dynamic microphone
  • Antenna Built-in
  • RF output 15mW
  • RF output 45dBc
  • Battery Two 1.5V AA battery or 1.2V AA rechargeable battery
  • Battery life 8 Hours
  • Dimensions Ø52 x 240mm handheld
  • Safety Approvals FCC, CE
  • Weight 260g
Model # UH101
Barcode # 9328202023032
Brand DOSS
Shipping Weight 0.5000kg
Shipping Width 0.070m
Shipping Height 0.300m
Shipping Length 0.070m
Shipping Cubic 0.001470000m3
