In-wall Component RCA Video IR Kit Cat5 Extender Wall Plate

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The KGE-1254D is designed to be surface mounted in in-wall composite/ component video, and stereo audio/digital audio with IR control applications.

Distributes your AV signals via economical CAT5 cable.

Transmitter:

  • Component video inputs (Y/ Pb/ Pr)

  • Coaxial digital audio input

  • Composite video input

  • Audio Left & Right inputs

  • 2x 3.5mm inputs for IR emitters

Interface:

  • Video: 1x RCA jack

  • Audio: 2x RCA jacks for Left and Right Audio

  • UTP: CAT5e

Impedance:

  • Video: 75 Ω unbalanced

  • Audio: 600 Ω unbalanced

  • UTP: 100 Ω balanced

Bandwidth:

  • Video: DC~12 MHz

  • Audio: 50 Hz~15 kHz

Distance:

  • Audio/Color Video: Category 5e UTP cable up to 300 meters

Receiver:

  • Component video inputs (Y/ Pb/ Pr)

  • Coaxial digital audio input

  • Composite video input

  • Audio Left & Right inputs

  • 3.5mm input for IR receiver

  • Power input

Interface:

  • Video: 3x RCA (Y/Pb/Pr) female connectors

  • Digital Audio: 1x RCA female connector

  • UTP: CAT5e

Impedance:

  • Video: 75 Ω unbalanced

  • Digital Audio: 75 Ω unbalanced

  • UTP: 100 Ω balanced

Bandwidth:

  • Video: DC~60 MHz

  • Audio: DC~25 MHz

Distance: Over Category 5e/6 UTP cable:

  • 720p video, up to 150 meters (total length, device-to-device)

  • 1080i video, up to 150 meters (total length, device-to-device)

Digital Audio: up to 175 meters (total length, device-to-device)
Connection between transmitter and receiver is established using RJ45 CAT5 patch cable.

IR receiver stick:

  • Works in areas with compact fluorescent lighting

  • lue IR confirmation LED

  • Wideband IR receives IR from many types of remotes

  • Self-adhesive tape for quick and easy fixing on any flat surface

  • 3 meters cable with 3.5mm stereo mini-plug

  • Receive frequency range: 34 kHz to 40 kHz

  • Transmit frequencies: 38 kHz

  • Range On Axis – 55ft to 80 ft (16.8m – 24.4m)

  • 30° Off-Axis – 30ft to 55ft (9.1-16.8m)

  • Power:12VDC, 31mA max

  • Dimensions: 54L x 14W x 13H mm

  • Weight: 23g

NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.

(KGE-1254D)

This item comes with a 12 month Warranty


The KGE-1254D is designed to be surface mounted in in-wall composite/ component video, and stereo audio/digital audio with IR control applications. Distributes your AV signals via economical CAT5 cable. Interface: Video: 1x RCA jack Audio: 2x RCA jacks for Left and Right Audio UTP: CAT5e Impedance: Video: 75 Ω unbalanced Audio: 600 Ω unbalanced UTP: 100 Ω balanced Bandwidth: Video: DC~12 MHz Audio: 50 Hz~15 kHz Distance: Audio/Color Video: Category 5e UTP cable up to 300 meters Receiver: Component video inputs (Y/ Pb/ Pr) Coaxial digital audio input Composite video input Audio Left & Right inputs 3.5mm input for IR receiver Power input Interface: Video: 3x RCA (Y/Pb/Pr) female connectors Digital Audio: 1x RCA female connector UTP: CAT5e Impedance: Video: 75 Ω unbalanced Digital Audio: 75 Ω unbalanced UTP: 100 Ω balanced Bandwidth: Video: DC~60 MHz Audio: DC~25 MHz Distance: Over Category 5e/6 UTP cable: 720p video, up to 150m (total length, device-to-device) 1080i video, up to 150m (total length, device-to-device) Digital Audio: up to 175 meters (total length, device-to-device) Connection between transmitter and receiver is established using RJ45 CAT5 patch cable. IR receiver stick: Works in areas with compact fluorescent lighting lue IR confirmation LED Wideband IR receives IR from many types of remotes Self-adhesive tape for quick and easy fixing on any flat surface 3 meters cable with 3.5mm stereo mini-plug Receive frequency range: 34 kHz to 40 kHz Transmit frequencies: 38 kHz Range On Axis – 55ft to 80 ft (16.8m – 24.4m) 30° Off-Axis – 30ft to 55ft (9.1-16.8m) Power:12VDC, 31mA max Dimensions: 54L x 14W x 13H mm Weight: 23g NOTE: This IR extender is not compatible with the Foxtel iQ4 Bluetooth Remote.

Delivery Distance:

  • Audio 300 meters

  • Component Video: 100Meters (max)

  • Composite Video: 300Meters (max

  • Dimension: 114mm x 70mm x 42mm (including blank wall plate)

  • Power supply: 12VDC, 200mA

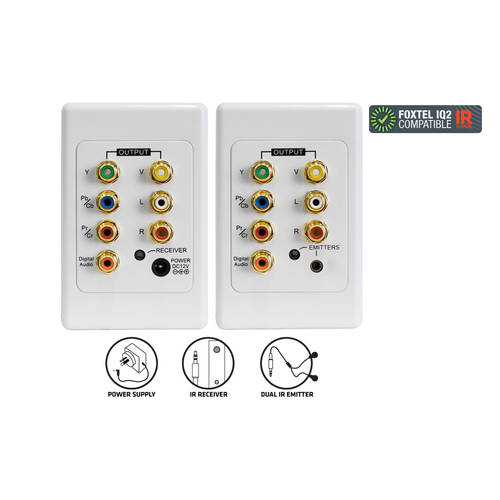

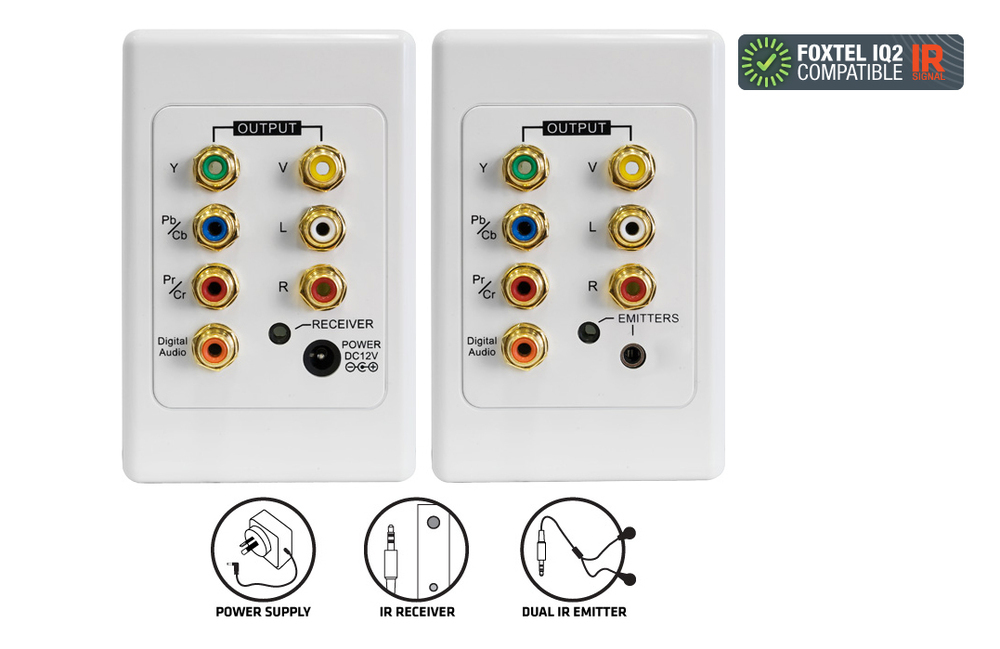

Kit includes:

  • Transmitter and Receiver wall plates

  • Dual IR emitter

  • IR receiver stick

  • 12V DC 200mA power supply

Model # KGE-1254D
Brand KGE
Shipping Weight 0.5000kg
Shipping Width 0.270m
Shipping Height 0.120m
Shipping Length 0.060m
Shipping Cubic 0.001944000m3
Type Component Cat5e/Cat6 Extender
