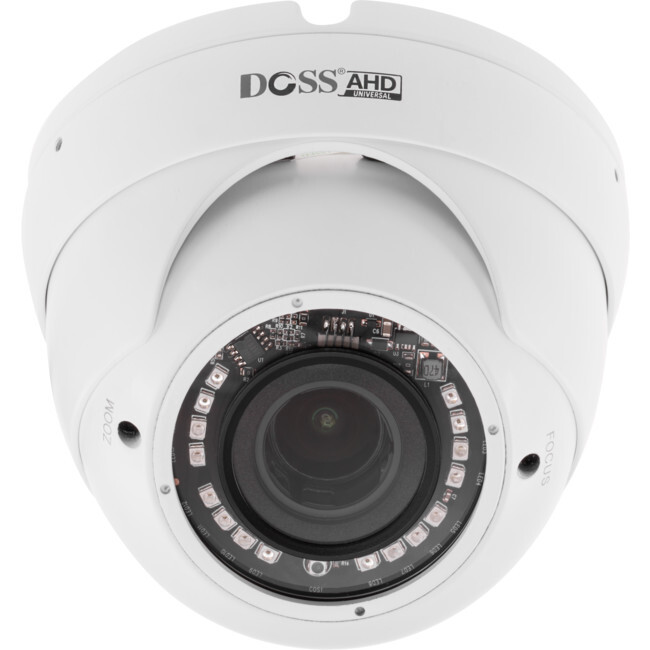

DOME 5MP 20M IR AHD CAMERA 4 IN 1 WHITE 2.8-12MM LENS

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

DOME 5MP 20M IR AHD CAMERA 4 IN 1 WHITE 2.8-12MM LENS

  • AHD, TVI-HD, CVI-HD, CVBS 4 in 1 camera

  • Adopt low illumination1/2.7" 5MP CMOS image sensor

  • 2.8-12 mm lens

  • Video coaxial transmission distance up to 500 m

  • OSD can select AHD CVI-HD TVI-HD or CVBS standard definition analogue signal output mode

  • Support D-WDR, 2D NR

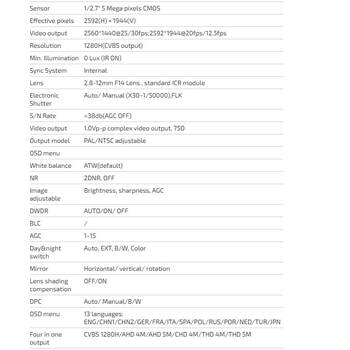

  • Sensor: 1/2.7" 5 Megapixels CMOS

  • Effective pixels: 2592(H) × 1944(V)

  • Video output: 2560*1440@25/30fps;2592*1944@20fps/12.5fps

  • Resolution: 1280H(CVBS output)

  • Transmission distance: 75-3/300m,75-5/500m

  • IR distance: 20-30m (16xF5 leds)

  • Protection grade: IP65

  • Power supply: DC12V± 10%

  • Power consumption: <5W(IR led+board: 0.96w)

  • Operating temperature: -20°C ~ 55°C/ 0%-90%

  • Dimensions(mm): F120*97.5

  • Weight Approx.: 675 g

(DM30AHDW5M)

Standard Consumer Warranty
DOME 5MP 20M IR AHD CAMERA 4 IN 1 WHITE 2.8-12MM LENS AHD, TVI-HD, CVI-HD, CVBS 4 in 1 camera Adopt low illumination1/2.7" 5MP CMOS image sensor 2.8-12 mm lens Video coaxial transmission distance up to 500 m OSD can select AHD CVI-HD TVI-HD or CVBS standard definition analogue signal output mode Support D-WDR, 2D NR Sensor: 1/2.7" 5 Megapixels CMOS Effective pixels: 2592(H) × 1944(V) Video output: 2560*1440@25/30fps;2592*1944@20fps/12.5fps Resolution: 1280H(CVBS output) Transmission distance: 75-3/300m,75-5/500m IR distance: 20-30m (16xF5 leds) Protection grade: IP65 Power supply: DC12V± 10% Power consumption: <5W(IR led+board: 0.96w) Operating temperature: -20°C ~ 55°C/ 0%-90% Dimensions(mm): F120*97.5 Weight Approx.: 675 g
Model # DM30AHDW5M
Barcode # 9328202031457
Brand DOSS
Shipping Weight 0.8000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.006250000m3
Type Dome
