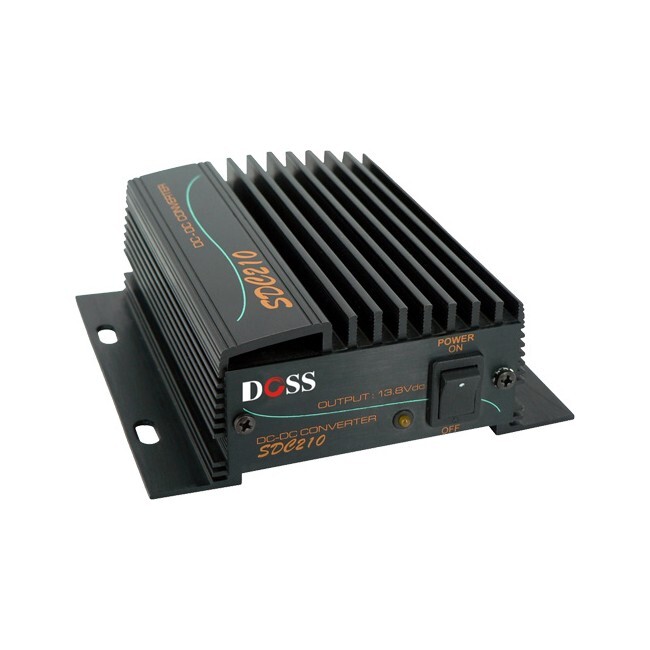

DC-DC CONVERTER SWITCHING 24V OUTPUT 13.8V 10A MAX 8A CONTIN

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Input 22-30Vdc, Output 13.8Vdc, Output 8A(Cont.)/10A(Peak) 13.8V Regulated Output Voltage 22-30 VDC Input voltage Output overvoltage protection Short Circuit and Overload Protection LED Power ON indicator Specifications: Input Voltage Range: 22 To 30 V DC Output Voltage: 13.8 V DC Continuous Output Current: 8A Maximum Output Current: 10A Ripple & Noise (P-P): 200mV Load Regulation: 500mV Line Regulation: 20mV Output Voltage Protection: Over Voltage Protection Efficiency: 88% Protection: Short Circuit Protection, Overload Protection Input Connection Type: Cable Output Connection Type Cable Input Fuse Type: Standard Car Blade Fuse Dimensions (WxHxD): 125x47x120 (mm) Weight: 0.55 Kg

(SDC210)

Standard Consumer Warranty
Input 22-30Vdc, Output 13.8Vdc, Output 8A(Cont.)/10A(Peak) 13.8V Regulated Output Voltage 22-30 VDC Input voltage Output overvoltage protection Short Circuit and Overload Protection LED Power ON indicator Specifications: Input Voltage Range: 22 To 30 V DC Output Voltage: 13.8 V DC Continuous Output Current: 8A Maximum Output Current: 10A Ripple & Noise (P-P): 200mV Load Regulation: 500mV Line Regulation: 20mV Output Voltage Protection: Over Voltage Protection Efficiency: 88% Protection: Short Circuit Protection, Overload Protection Input Connection Type: Cable Output Connection Type Cable Input Fuse Type: Standard Car Blade Fuse Dimensions (WxHxD): 125x47x120 (mm) Weight: 0.55 Kg
Model # SDC210
Brand MANSON
Shipping Weight 0.8000kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.120m
Shipping Cubic 0.001092000m3
Type DC-DC Converter
