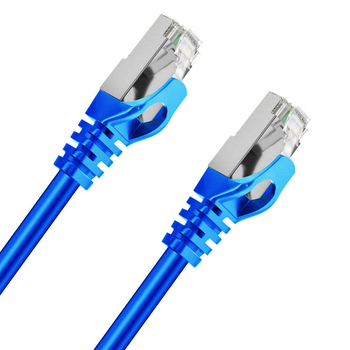

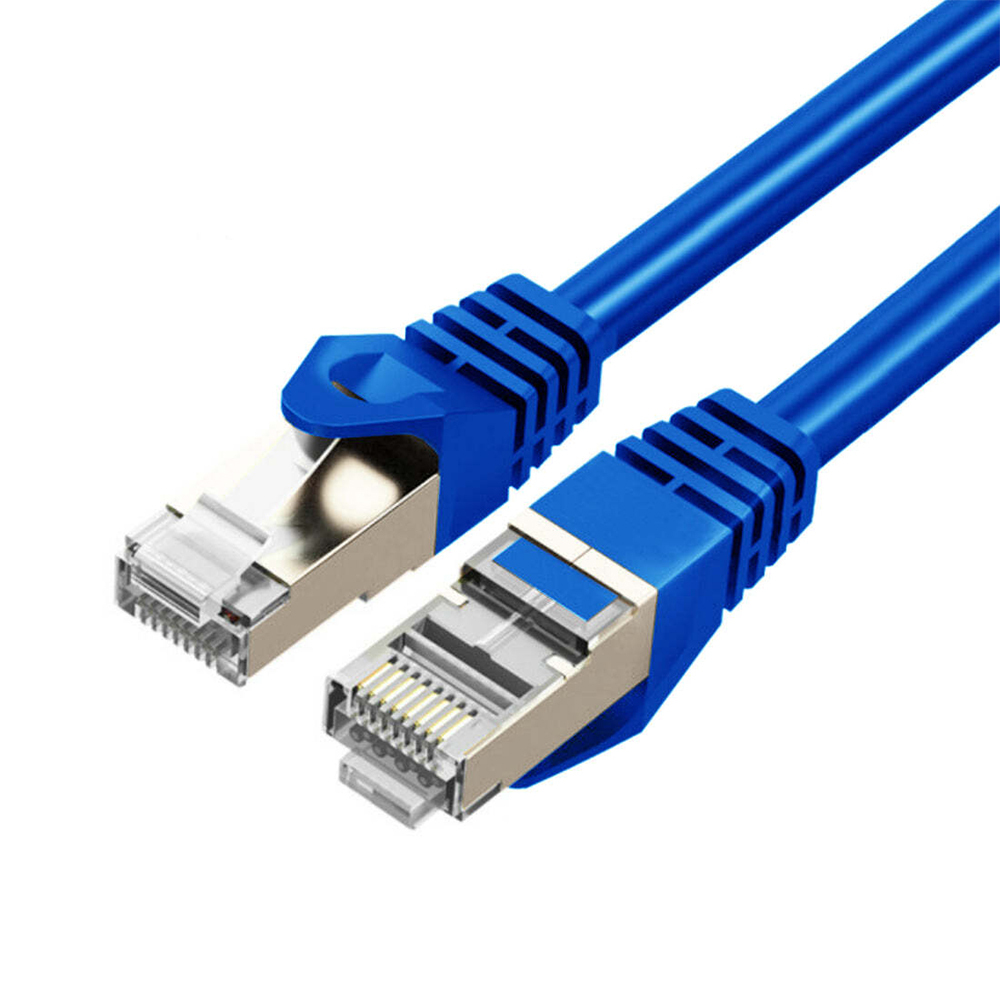

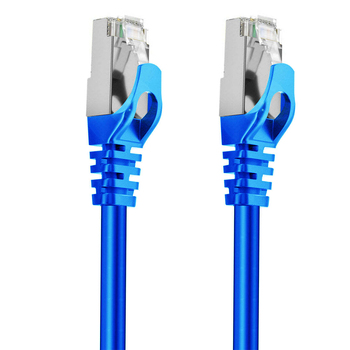

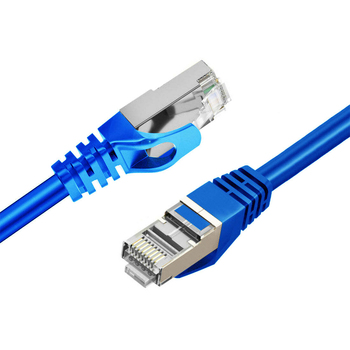

Cruxtec 5m CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable - Blue

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Cruxtec 5m CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable - Blue

Gold-plated RJ45 connectors protect the cable from external Electro-Magnetic Interference (EMI)
99.99% Oxygen Free Copper provides steady transmission
Supports up to 10Gbps transmission speed, 10x compared to Cat6
SF/FTP Triple shielding provides the maximum protection from RFI/EMI
Fluke Test Passed

Specifications:
Compliant Standard: TIA-568-C.2-2009, ISO/IEC 11801(Ed. 2.
Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, 10GBaseT, PoE, PoE+
Conductor Type: BC 4*2*28AWG (7*0.12mm) OFC(Oxygen Free Copper)
Shielding Types: SF/FTP Triple Shielding (individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding)
Connector: Gold-plated RJ45, Shielded copper shell nickel plated
Transfer Rate: up to 10Gbps
Bandwidth: up to 600MHz
Sheath: PVC
Insulation: HDPE
Outside Diameter: 6.2±0.3mm
1 Minimum Bend Radius: 45.5mm
Colour: blue
Cable Length: 5m

(RC7-050-BL)

Standard Consumer Warranty
Cruxtec 5m CAT7 10GbE SF/FTP Triple Shielding Ethernet Cable - Blue Gold-plated RJ45 connectors protect the cable from external Electro-Magnetic Interference (EMI) 99.99% Oxygen Free Copper provides steady transmission Supports up to 10Gbps transmission speed, 10x compared to Cat6 SF/FTP Triple shielding provides the maximum protection from RFI/EMI Fluke Test PassedSpecifications: Compliant Standard: TIA-568-C.2-2009, ISO/IEC 11801(Ed. 2. Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, 10GBaseT, PoE, PoE+ Conductor Type: BC 4*2*28AWG (7*0.12mm) OFC(Oxygen Free Copper) Shielding Types: SF/FTP Triple Shielding (individual foil shielding twisted pair, overall Aluminum Magnesium braid shielding and Aluminum foil shielding) Connector: Gold-plated RJ45, Shielded copper shell nickel plated Transfer Rate: up to 10Gbps Bandwidth: up to 600MHz Sheath: PVC Insulation: HDPE Outside Diameter: 6.2±0.3mm1 Minimum Bend Radius: 45.5mmColour: blueCable Length: 5m
Model # RC7-050-BL
Barcode # 0787303421373
Brand CRUXTEC
Shipping Weight 0.1900kg
Shipping Width 0.240m
Shipping Height 0.020m
Shipping Length 0.180m
Shipping Cubic 0.000864000m3
Type Ethernet Patch (RJ-45)
