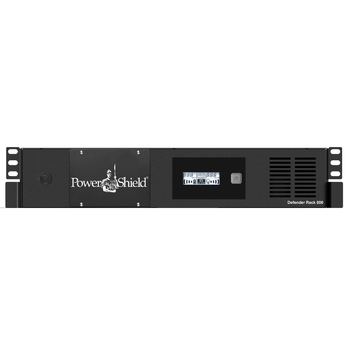

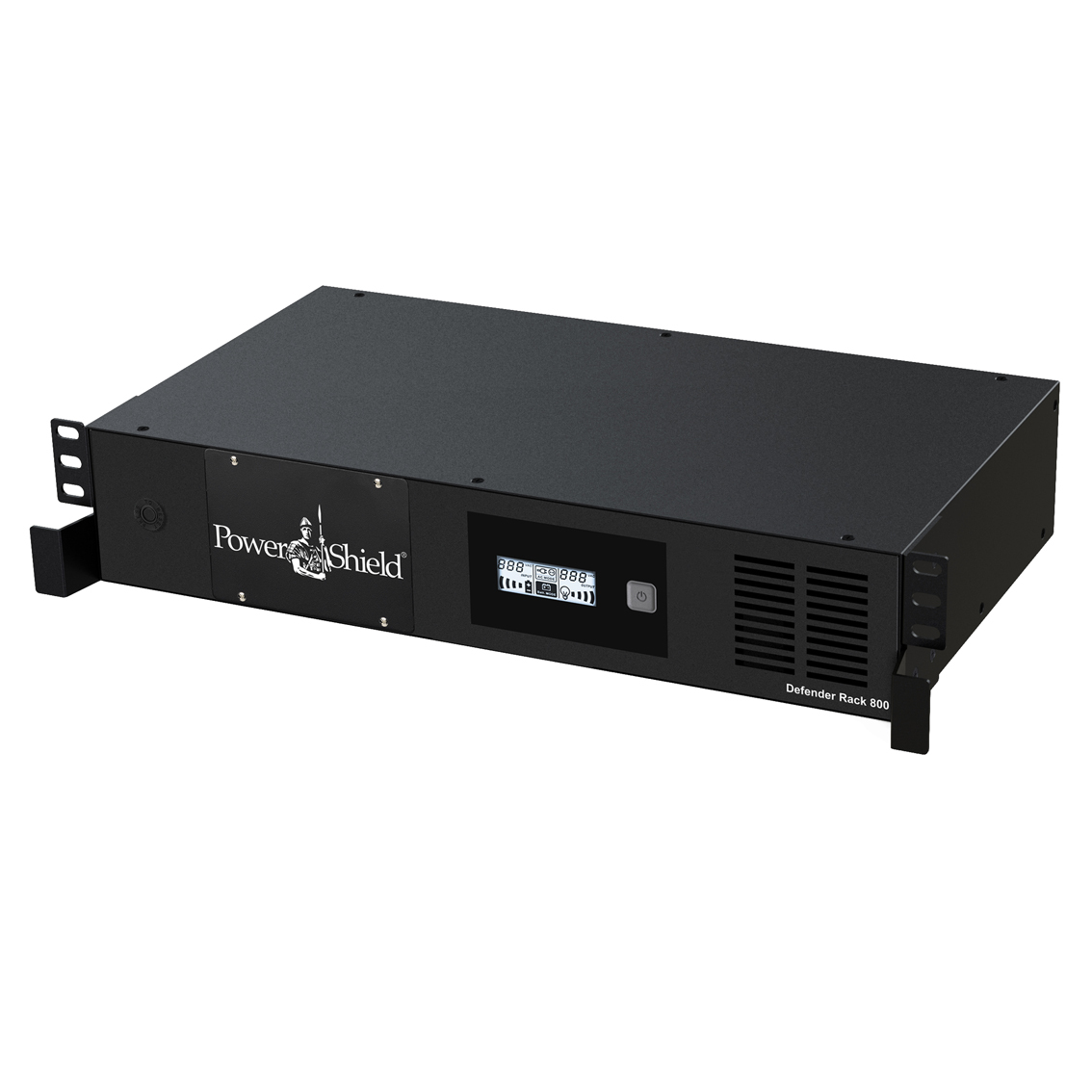

PowerShield 43cm Defender Rackmount/Tower 800VA/480W UPS
or 4 payments of $143.75 with Learn more
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
The Defender Rackmount expands the successful Defender Range by building the popular features into a Rack Mount NAS UPS perfect for shallow, wall mounted Comms cabinets.
This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
Features:
-
Offering the best protection in its class, the Defender
-
Rackmount protects against damaging surges.
-
Modern, stylish LCD display indicates voltage in/out, amount of load and remaining battery time.
-
The AVR automatically bucks/boosts unstable fluctuating utility voltages, bringing them within 10% of nominal voltage range and thereby protecting valuable equipment.
-
The 230mm depth provides a very shallow, rackmountable solution, which will fit any wall mounted equipment box.
-
Battery is easily hot swappable and user replaceable, extending the service life of your UPS. Silent Operation (no fans)
-
Mount to run cool without fans. This makes it the perfect complement to Audio Visual.
-
After an extended power outage the UPS will turn back on and resume equipment functionality once power has returned.
-
HID can be used for simple management with Windows, Apple, Linux and NAS devices and a large variety of industrial controllers that support HID
-
HID ensures a safe and orderly shutdown in the event of a prolonged power outage NetGuard software communication via USB
-
The free, downloadable NetGuard software provides complete power monitoring. Parameters such as input/ output voltage, battery remaining time and load level are easily viewed. It also ensures a safe and orderly shutdown in the event of a prolonged outage.
Includes:
-
1x PowerShield Defender Rackmount
(UPPS-PSDR800)
-
Colour: Black
-
Capacity: 800VA / 480W
-
Topology Line: Interative
Input:
-
Voltage 240Vac: (Nominal)
-
Voltage Range: 177-290Vac
-
Frequency Range: 50/60Hz (auto sensing)
Output:
-
Output Voltage 240Vac ± 10%
-
Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz
-
Transfer Time 6ms: (Typical)
-
Waveform (Batt. Mode): Simulated Sine Wave
-

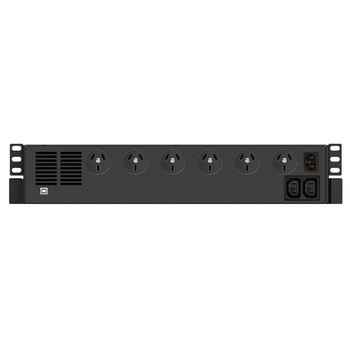

Australian Outlets - UPS & Surge Protection: 2x 10 Amp IEC Sockets, 6 x Australian Sockets
-
Battery Type & Number: 12V / 9AH (x1)
-
Typical Recharge: Time 4- 6 hours recover to 90% capacity
-
Backup Time: (50% Load) 8 min
-
Full Protection Overload: discharge and overcharge protection
-
Surge Protection: 312Joules / 6500Amps
Model # | UPPS-PSDR800 |
Barcode # | 9346909001030 |
Brand | POWERSHIELD |
Shipping Weight | 9.4000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.320m |
Shipping Cubic | 0.032432000m3 |
Type | Rack Mount UPS |
