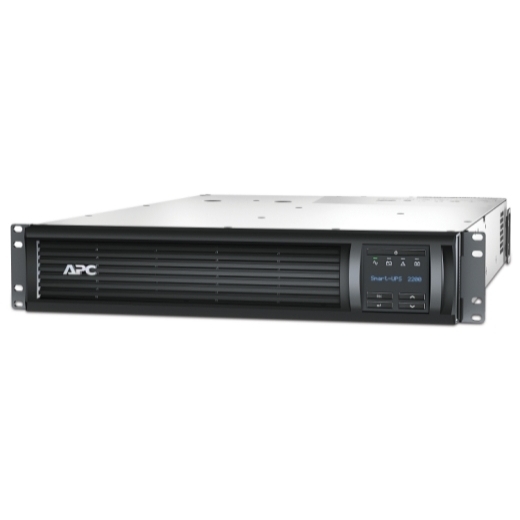

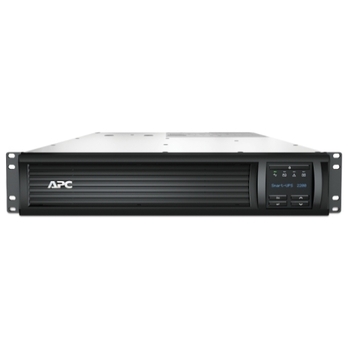

APC Smart-UPS SMT2200 Rack Mount 2200VA/1980W Battery Backup

APC Smart-UPS 2200VA, Rack Mount, LCD 230V with SmartConnect Port

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Features:
Run time for load: 1980W
Min-max: 198-1980 W
Max. Capacity Used: 100%
Output power capacity: 1.98kWatts / 2.2kVA
Rack Height: 2U

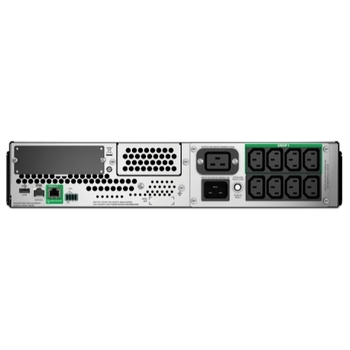

Output Connections

• (1) IEC 320 C19 (Battery Backup)
• (8) IEC 320 C13 (Battery Backup)
• (3) IEC Jumpers (Battery Backup)

Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Cord Length: 2meters

• Cold-start capable: Provides temporary battery power when the utility power is out.
• Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
• Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• High online efficiency: Reduces utility costs, generates less heat.
• Intelligent Card Slot: Customize UPS capabilities with management cards.
• Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
• Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Sequenced network shutdown and reboot: Customize network shutdown and reboot sequence of connected servers and UPSs.
• Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
• SmartConnect: Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
• StruxureWare Data Center Expert compatible: Enables centralized management via StruxureWare Data Center Expert.
• Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits
Manageability

• Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
• Serial connectivity: Provides management of the UPS via a serial port.
• Audible alarms: Provides notification of changing utility power and UPS conditions.
• USB connectivity: Provides management of the UPS via a USB port (not available on all models).
• LED status indicators: Quickly understand unit and power status with visual indicators.

Includes:

• 1x APC Smart-UPS SMT2200 Smart UPS
• 1x Documentation CD
• 1x Rack Mounting Hardware
• 1x Rack Mounting Support Rails
• 1x USB Cable
