APC Smart-UPS SMT1000IC 1000VA/700W Tower LCD UPS Battery Backup

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

APC Smart-UPS 1000VA, Tower, LCD 230V with SmartConnect Port

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Features:
Run time for load: 700W
Min-max: 70-700 W
Max. Capacity Used: 100%
Output power capacity: 700 Watts / 1.0kVA

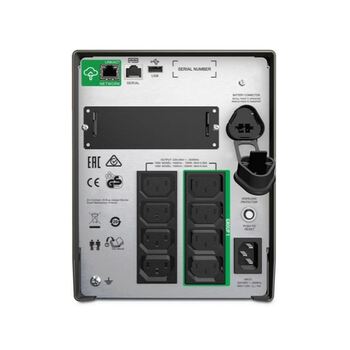

Output Connections

  • (8) IEC 320 C13 (Battery Backup)
  • (2) IEC Jumpers (Battery Backup)

Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC 320 C14

  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency: Reduces utility costs, generates less heat.
  • Intelligent Card Slot: Customize UPS capabilities with management cards.
  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect: Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits
Manageability

  • Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
  • Serial connectivity: Provides management of the UPS via a serial port.
  • Audible alarms: Provides notification of changing utility power and UPS conditions.
  • USB connectivity: Provides management of the UPS via a USB port (not available on all models).
  • LED status indicators: Quickly understand unit and power status with visual indicators.

Includes:

  • 1x APC Smart-UPS 1000VA Tower LCD 230V
  • 1x Cat 5 Ethernet Cable
  • 1x Installation Guide
  • 1x USB Cable

(UPAPC-SMT1000IC)

Standard Consumer Warranty

Output

  • Max Configurable Power (Watts): 700 Watts / 1.0kVA

  • Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage

  • Output Voltage Distortion: Less than 5 %

  • Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains

  • Other Output Voltages: 220 V, 240 V

  • Topology: Line interactive

  • Waveform type: Sine wave

  • Transfer Time: 6 ms typical : 10 ms maximum

Input

  • Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing

  • Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V

  • Other Input Voltages: 220 V, 240 V

Batteries & Runtime

  • Battery type: Lead-acid battery

  • Typical recharge time: 3hour(s)

  • Replacement Battery: RBC6

  • Expected Battery Life (years): 3 - 5

  • RBC Quantity: 1

  • Battery Charge Power (Watts): 88 Watts

Communications & Management

  • Interface Port(s): SmartSlot, USB

  • Control panel: Multifunction LCD status and control console

  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

  • Emergency Power Off (EPO): Optional

  • Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

  • Surge energy rating: 459Joules

  • Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height: 219MM, 21.9CM

  • Maximum Width: 171MM, 17.1CM

  • Maximum Depth: 439MM, 43.9CM

  • Net Weight: 19.4KG

  • Shipping weight: 22.77KG

  • Shipping Height: 376MM, 37.6CM

  • Shipping Width: 328MM, 32.8CM

  • Shipping Depth: 595MM, 59.5CM

  • Colour: Black

  • Units per Pallet: 12.0

Environmental

  • Operating Temperature: 0 - 40 °C

  • Operating Relative Humidity: 0 - 95 %

  • Operating Elevation: 0 - 3048meters

  • Storage Temperature: -15 - 45 °C

  • Storage Relative Humidity: 0 - 95 %

  • Storage Elevation: 0 - 15240meters

  • Audible noise at 1 meter from surface of unit: 41.0dBA

  • Online thermal dissipation: 100.0BTU/hr

Model # UPAPC-SMT1000IC
Barcode # 731304332978
Brand APC
Shipping Weight 21.9400kg
Shipping Width 0.330m
Shipping Height 0.600m
Shipping Length 0.340m
Shipping Cubic 0.066075000m3
Type Smart-UPS
