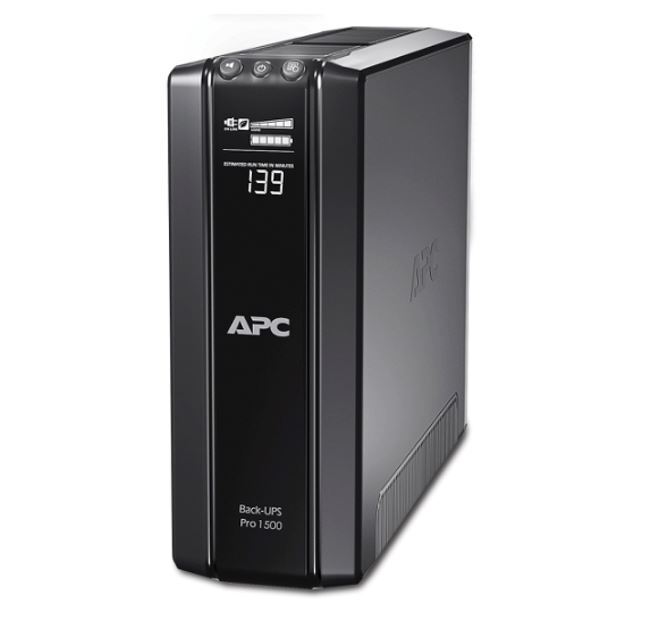

APC BR1500I Back-UPS Pro 1500VA/230V Battery Backup 865W

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

APC Back-UPS RS 1500VA, 230V

High Performance Battery Backup & Protection for Business Computers.

Features:
Run time for load: 865W
Min-max: 87-865 W
Max. Capacity Used: 100%
Output power capacity: 865 Watts / 1.5kVA
Rack Height: 2U

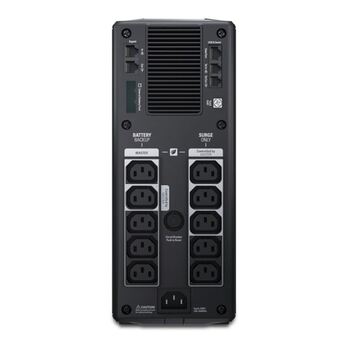

Output Connections

  • (6) IEC 60320 C13 (Battery Backup)
  • (2) IEC 60320 C13 (Surge Protection)

Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC 60320 C14

Back-UPS RS Features & Benefits
Marketing features

  • Lifetime data recovery: Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
  • Boost and Trim Automatic Voltage Regulation (AVR): Automatically corrects low and high voltage conditions, allowing you to work through brownouts and overvoltages without discharging the battery. This saves battery life, increases uptime, and improves your productivity.
  • USB connectivity: Provides management of the UPS via a USB port (not available on all models).
  • Serial connectivity: Provides management of the UPS via a serial port.

Convenience

  • Battery replacement without tools: Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
  • Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
  • Resettable circuit breakers: Enables a quick recovery from overload events.
  • LED status indicators: Quickly understand unit and power status with visual indicators.
  • Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Audible alarms: Provides notification of changing utility power and UPS power conditions
  • User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.

Protection

  • Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Battery-protected and surge-only outlets: Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

  • Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Intelligent battery management: Micro-processor controlled battery charging and diagnostic testing ensures maximum battery life.
  • Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Includes:

  • 1x APC Back-UPS RS 1500VA, 230V

(UPAPCBR1500I)

Standard Consumer Warranty

Output

  • Max Configurable Power (Watts): 865 Watts / 1.5kVA

  • Topology: Line interactive

  • Maximum Output Current: 10

Input

  • Input frequency: 47 - 63 Hz

  • Input voltage range for main operations: 160 - 286 Adjustable, 175 - 295V

  • Number of Power Cords: 1

Batteries & Runtime

  • Battery type: Lead-acid battery

  • Included Battery Modules: 1

  • Typical recharge time: 8hour(s)

  • Replacement Battery: RBC33

  • Expected Battery Life (years): 4 - 6

  • RBC Quantity: 1

  • Battery Charge Power (Watts): 22 Watts

Communications & Management

  • Interface Port(s): USB

  • Control panel: LED status display with on line : on battery : replace battery and overload indicators

  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

  • Surge energy rating: 180Joules

  • Data Line Protection: RJ11 modem/fax/DSL protection (two wire single line), RJ45 10/100 Base-T Ethernet protection

  • Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height: 371MM, 37.1CM

  • Maximum Width: 86MM, 8.6CM

  • Maximum Depth: 333MM, 33.3CM

  • Net Weight: 11.59KG

  • Shipping weight: 12.82KG

  • Shipping Height: 455MM, 45.5CM

  • Shipping Width: 203MM, 20.3CM

  • Shipping Depth: 417MM, 41.7CM

  • Colour: Beige

  • Master Carton Units: 1.0

  • Units per Pallet: 30.0

Environmental

  • Operating Temperature: 0 - 40 °C

  • Operating Relative Humidity: 0 - 95 %

  • Operating Elevation: 0 - 3048meters

  • Storage Temperature: -5 - 45 °C

  • Storage Relative Humidity: 0 - 95 %

  • Storage Elevation: 0 - 15240meters

  • Audible noise at 1 meter from surface of unit: 45.0dBA

  • Online thermal dissipation: 180.0BTU/hr

Model # UPAPCBR1500I
Barcode # 731304268741
Brand APC
Shipping Weight 13.4400kg
Shipping Width 0.490m
Shipping Height 0.400m
Shipping Length 0.240m
Shipping Cubic 0.047432000m3
Type Smart-UPS
