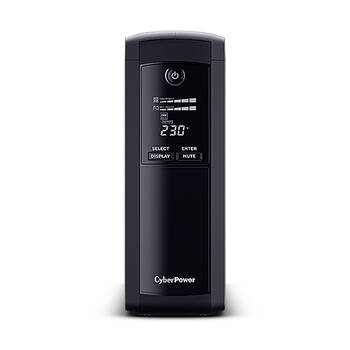

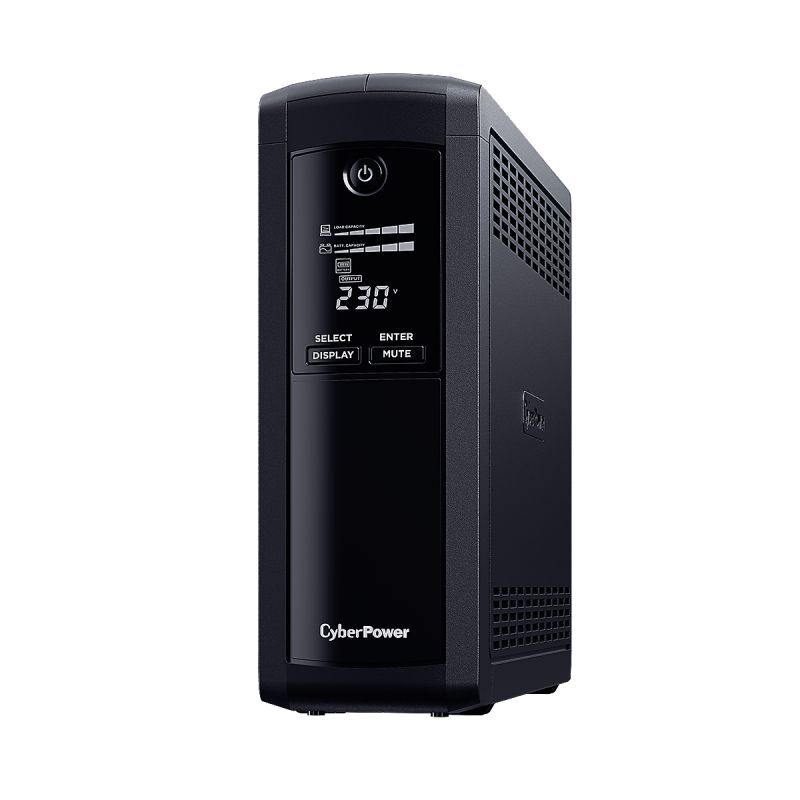

CP Value Pro 1200VA UPS

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Ideal for home, SOHO office, office, and back-office applications, the Value Pro Series adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output.

The products provide a multifunctional LCD readout to display clear power and battery conditions.

The data line protection with high-speed transmission safeguards phones, network, and communication equipment against surge/spike as well as supplies 1Gbps speed to transmit data.

The products' power management software achieves real-time monitoring and configuration.

Features:

  • Line-interactive UPS Topology

  • Energy Saving Technology

  • Automatic Voltage Regulation (AVR)

  • Overload Protection

  • Surge and Spike Protection

  • High-Speed Ethernet Data Transmission*

  • LCD Status Display

  • PowerPanel® Management Software

  • Tower Form Factor

Application:

  • Home

  • SOHO Office

  • Office

  • Back Office

Includes:

  • 1x CP Value Pro 1200VA UPS

(CPVP1200ELCD)

This item comes with a 2-year warranty.

General

  • UPS Topology: Line-interactive

  • Energy Saving Technology: GreenPower UPS™ Bypass Technology

Input

  • Nominal Input Voltage (Vac): 230 ± 10%

  • Input Voltage Range (Vac): 167 ~ 295

  • Input Frequency (Hz): 50 ± 5, 60 ± 5

  • Rated Input Current (A): 5.2

  • Input Connector Type: IEC C14

Output

  • Capacity (VA): 1200

  • Capacity (Watts): 720

  • On Battery Waveform: Simulated Sine Wave

  • On Battery Voltage(s) (Vac): 230 ± 10%

  • On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%

  • Automatic Voltage Regulation (AVR): Single Boost, Single Buck

  • Overload Protection: Circuit Breaker

  • Outlet(s) - Total: 4

  • Outlet Type: AU x 4

  • Outlet(s) - Battery & Surge Protected: 3

  • Outlet(s) - Surge-Only Protected: 1

  • Typical Transfer Time (ms): 4

Battery

  • Runtime at Half Load (min): 12

  • Runtime at Full Load (min): 4

  • Typical Recharge Time (Hours): 8

  • User-replaceable: No

  • Battery Type: Sealed Lead-acid

Surge Protection & Filtering

  • Surge Suppression (Joules): 450

  • EMI/RFI Filtration: Yes

  • Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out

Management & Communications

  • LCD Panel: Yes

  • LED Indicators: Power On

  • HID Compliant USB Port(s): 1

  • Serial Port: RS232

  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

  • Power Management Software: PowerPanel® Personal

Physical

  • Form Factor: Tower

Physical Size - UPS Module

  • Dimensions (WxHxD) (mm.): 100 x 281 x 355

  • Weight (kg.): 9.62

Environmental

  • Operating Temperature (°C): 0 ~ 40

  • Operating Relative Humidity (Non-condensing) (%): 0 ~ 90

  • Online Thermal Dissipation (BTU/hr): 74

Certifications

  • Certifications: CE, RCM

  • RoHS: Yes

Model # CPVP1200ELCD
Barcode # 4712856274653
Brand CYBERPOWER
Shipping Weight 9.6200kg
Shipping Width 0.420m
Shipping Height 0.160m
Shipping Length 0.370m
Shipping Cubic 0.023479000m3
Type Desktop/Freestanding UPS
