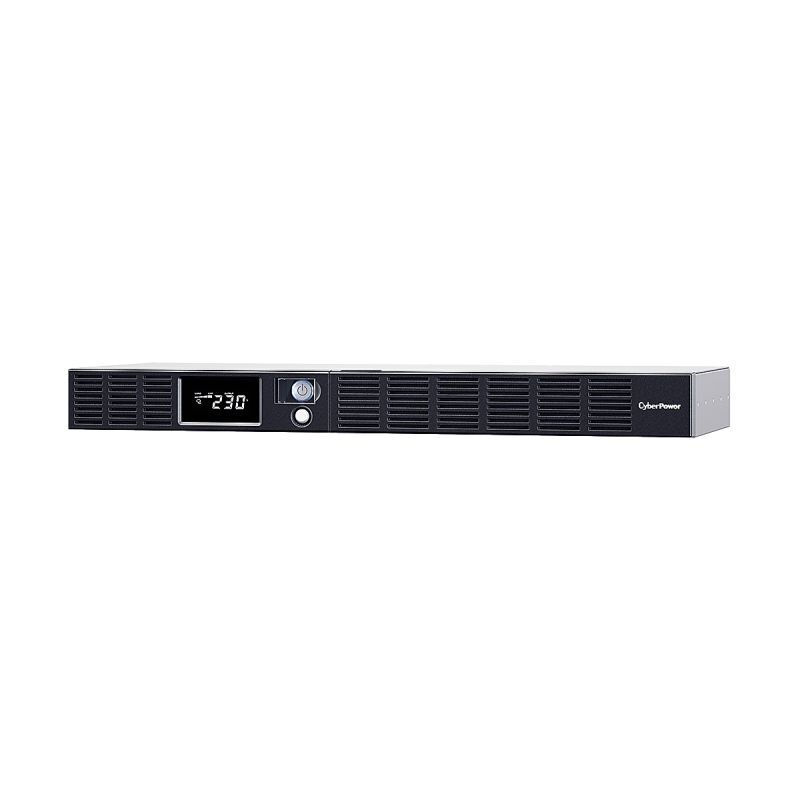

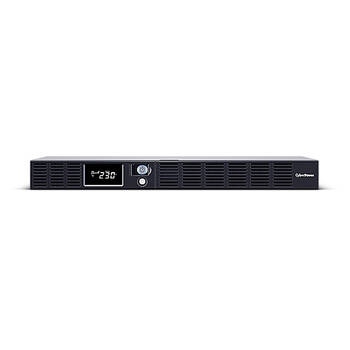

CP Smart App Rack LCD 600VA

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Designed for office and server room applications, the Office Rackmount Series is a reliable UPS that adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilised AC power output.

It features simulated sine wave output and hot-swappable battery packs for simple maintenance. The power management software can also easily control and monitor the UPS system.

Features:

  • Line-interactive UPS Topology

  • Energy Saving Technology

  • Automatic Voltage Regulation (AVR)

  • Hot-swappable Batteries

  • Surge and Spike Protection

  • Network Protection

  • LCD Status Display

  • Overload Protection

  • SNMP/HTTP Remote Management Capability (Optional)

  • PowerPanel® Management Software

Applications:

  • SOHO Office

  • Office

  • Back Office

  • Server Room

  • Supermarket

  • Factory

  • Airport

  • Train Station

Product Callouts:

  • Power On Indicator

  • Power On/Off Switch

  • LCD Display Panel

  • Function Button(s)

  • Battery Backup & Surge Protected Outlets

  • Surge Protected Outlets

  • Communication Protection Ports RJ45

  • Input Circuit Breaker

  • AC Inlet

  • Serial Port

  • USB Port

  • SNMP/HTTP Network Slot

Includes:

  • 1x CP Smart App Rack LCD 600VA

(CPOR600ERM1U)

This item comes with a 2-year warranty.

The power management software can also easily control and monitor the UPS system.

General

  • UPS Topology: Line-interactive

  • Energy Saving Technology: GreenPower UPS™ Bypass Technology

Input

  • Nominal Input Voltage (Vac): 230

  • Input Voltage Range (Vac): 165 ~ 271

  • Input Frequency (Hz): 50 ± 3, 60 ± 3

  • Input Frequency Detection: Auto-sensing

  • Rated Input Current (A): 10

  • Input Connector Type: IEC C14

Output

  • Capacity (VA): 600

  • Capacity (Watts): 360

  • On Battery Waveform: Simulated Sine Wave

  • On Battery Voltage(s) (Vac): 230 ± 10%

  • On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%

  • Automatic Voltage Regulation (AVR): Single Boost

  • Overload Protection: Internal Current Limiting, Circuit Breaker

  • Outlet(s) - Total: 6

  • Outlet Type: IEC C13 x 6

  • Outlet(s) - Battery & Surge Protected: 4

  • Outlet(s) - Surge-Only Protected: 2

  • Typical Transfer Time (ms): 4

Battery

  • Runtime at Half Load (min): 13

  • Runtime at Full Load (min): 4

  • Typical Recharge Time (Hours): 8

  • User Replaceable: Yes

  • Hot-Swappable: Yes

  • Battery Type: Sealed Lead-acid

  • Replacement Battery Pack: RBP0019

  • RBP Quantity (pcs): 1

Surge Protection & Filtering

  • Surge Suppression (Joules): 405

  • EMI/RFI Filtration: Yes

  • Network Protection RJ45: 1-in, 1-out

Management & Communications

  • LCD Panel: Yes

  • HID Compliant USB Port(s): 1

  • Serial Port: Dry Contact

  • Power Management Software: PowerPanel® Business (Recommended)

  • SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

Physical

  • Form Factor: Rack

Physical Size - UPS Module

  • Dimensions (WxHxD) (mm.): 433 x 44 x 235

  • Weight (kg.): 7.8

  • Installed Rack Height (U): 1

Environmental

  • Operating Temperature (°C): 0 ~ 40

  • Operating Relative Humidity (Non-condensing) (%): 0 ~ 95

  • Online Thermal Dissipation (BTU/hr): 20

Certifications

  • Certifications: CE, EAC, RCM

  • RoHS: Yes

Model # CPOR600ERM1U
Barcode # 4712856274318
Brand CYBERPOWER
Shipping Weight 7.8000kg
Shipping Width 0.430m
Shipping Height 0.040m
Shipping Length 0.240m
Shipping Cubic 0.004477000m3
Type Enterprise/Data Center UPS
