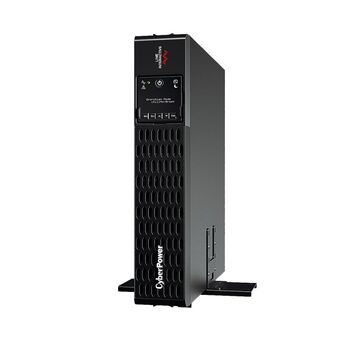

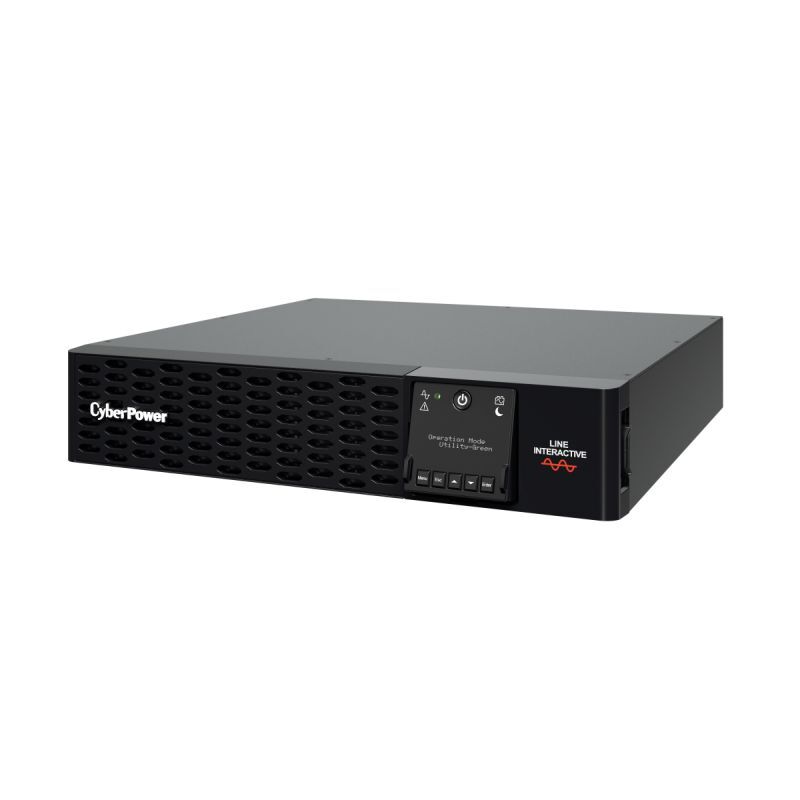

CP PRO Rack/Tower LCD 2000VA

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Designed for computer room and server room applications, the Professional Rackmount Series adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilised AC power output with a pure sine wave to ensure high power quality.

The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage.

Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption.

Features:

  • Line-interactive UPS Topology

  • Energy Saving Technology

  • Pure Sine Wave Output

  • High Output Power Factor

  • Toolless Battery Replacement

  • Battery Management Technology

  • Extended Battery Module (EBM)

  • Multi-functional Matrix LCD

  • Night Mode Design

  • PowerPanel® Management Software

  • SNMP/HTTP Remote Management Capability (Optional)

  • Rack/Tower Convertible Configurations

Application:

  • SOHO Office

  • Office

  • Back Office

  • Server Room

  • Data Center

  • Supermarket

  • Factory

  • Airport

Product Callouts:

  • Power On Indicator

  • Power On/Off Switch

  • LCD Display Panel

  • Function Button(s)

  • Battery Backup & Surge Protected Outlets

  • Communication Protection Ports RJ45

  • Input Circuit Breaker

  • Output Circuit Breaker

  • AC Inlet

  • BM/ENV Port

  • Dry Contact

  • Serial Port

  • USB Port

  • EPO/ROO Port

  • SNMP/HTTP Network Slot

  • Extended Battery Module Connector Socket

  • TVSS Screw

Includes:

  • 1x CP PRO Rack/Tower LCD 2000VA

(CPPR2000ERTXL2U)

This item comes with a 3-year warranty.

General

  • UPS Topology: Line-interactive

  • Energy Saving Technology: GreenPower UPS™ Bypass Technology

  • Active PFC Compatibility: Yes

Input

  • Nominal Input Voltage (Vac): 220, 230, 240

  • Input Voltage Range (Vac): 159 ~ 288

  • Input Frequency (Hz): 50 ± 3, 60 ± 3

  • Input Frequency Detection: Auto-sensing

  • Input Connector Type: IEC C14

Output

  • Capacity (VA): 2000

  • Capacity (Watts): 2000

  • On Battery Waveform: Pure Sine Wave

  • On Battery Voltage(s) (Vac): 220 ± 5%, 230 ± 5%, 240 ± 5%

  • On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%

  • Power Factor: 1

  • Automatic Voltage Regulation (AVR): Double Boost, Single Buck

  • Overload Protection: Internal Current Limiting, Circuit Breaker

  • Outlet(s) - Total: 10

  • Outlet Type: IEC C13 x 10

  • Outlet(s) - Battery & Surge Protected: 10

  • Outlet(s) - Critical Load (CL): 5

  • Outlet(s) - Non-Critical Load (NCL): 5

  • Typical Transfer Time (ms): 4

Battery

  • Runtime at Half Load (min): 12.8

  • Runtime at Full Load (min): 4

  • Typical Recharge Time (Hours): 3

  • User-replaceable: Yes

  • Hot-swappable: Yes

  • Battery Type: Sealed Lead-acid

  • Replacement Battery Pack: RBP0128

  • RBP Quantity (pcs): 1

  • Extended Battery Module (EBM): BP48VP2U02 (Built-in charger)

  • Max. EBM Quantity (pcs): Unlimited

  • Surge Protection & Filtering

  • Surge Suppression (Joules): 2430

  • EMI/RFI Filtration: Yes

  • Network Protection RJ45: 1-in, 1-out

Management & Communications

  • LCD Panel: Yes

  • LCD Orientation: Rotatable LCD panel

  • HID-Compliant USB Port(s): 1

  • Serial Port: RS232

  • Dry Contact (with Relay): Yes

  • Emergency Power Off (EPO) Port: Yes

  • Power Management Software: PowerPanel® Business

  • SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

Physical

  • Form Factor: Rack/Tower

Physical Size - UPS Module

  • Dimensions (WxHxD) (mm.): 433 x 86.5 x 500

  • Weight (kg.): 34.4

  • Installed Rack Height (U): 2

Environmental

  • Operating Temperature (°C): 0 ~ 40

  • Operating Relative Humidity (Non-condensing) (%): 0 ~ 95

  • Online Thermal Dissipation (BTU/hr): 129.6

Certifications

  • Certifications: CE, FCC Class A (for PR3000ERTXL2U only), FCC Class B, UL, RCM, VCCI

  • RoHS: Yes

Model # CPPR2000ERTXL2U
Barcode # 4712856277326
Brand CYBERPOWER
Shipping Weight 39.0000kg
Shipping Width 0.620m
Shipping Height 0.270m
Shipping Length 0.570m
Shipping Cubic 0.095418000m3
Type Desktop/Freestanding UPS
