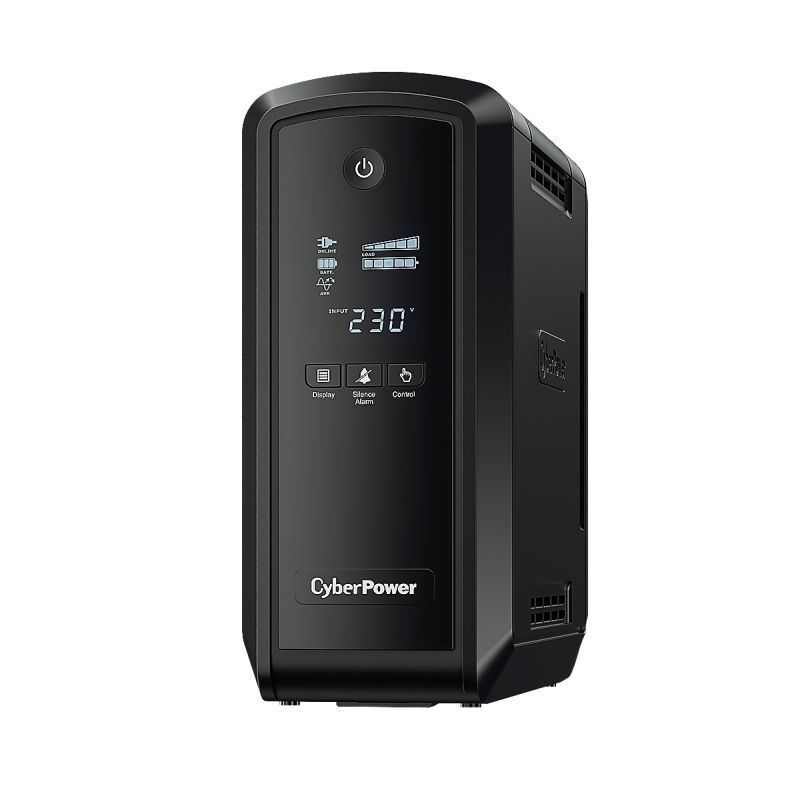

CP PFC Sinewave Series 900VA

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Designed for home, office, and back oce applications, the PFC Sinewave Series adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized Pure Sine Wave output.

The products are compatible with equipment requiring an active PFC power supply. Other features include RJ11/RJ45 port to provide data line protection against surge and spike, and power management software to perform PC graceful shutdown.

Features:

  • Line-interactive UPS Topology

  • Energy Saving Technology

  • Active PFC Compatible

  • Pure Sine Wave Output

  • Automatic Voltage Regulation (AVR)

  • LCD Status Display

  • LED Status Indicator

  • PowerPanel® Management Software

  • Surge and Spike Protection

  • DSL/Network Protection

  • Tower Form Factor

Application:

  • Home

  • SOHO Office

  • Office

  • Back Office

  • Workstations

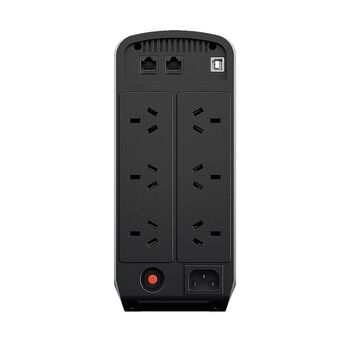

Product Callouts:

  • Power On Indicator

  • Power On/Off Switch

  • LCD Display Panel

  • Function Buttons

  • Battery Backup & Surge Protected Outlets

  • Surge Protected Outlets

  • Communication Protection Ports RJ45

  • USB Charging Ports

  • Input Circuit Breaker

  • AC Inlet

  • USB Port

  • Serial Port

Includes:

  • 1x CP PFC Sinewave Series 900VA

(CPCP900EPFCLCDA)

This item comes with a 2-year warranty.

General

  • UPS Topology: Line-interactive

  • Energy Saving Technology: GreenPower UPS™ Bypass Technology

  • Active PFC Compatibility: Yes

Input

  • Nominal Input Voltage (Vac): 230

  • Input Voltage Range (Vac): 170 ~ 270

  • Input Frequency (Hz): 50 ± 3, 60 ± 3

  • Input Frequency Detection: Auto-sensing

  • Rated Input Current (A): 10

  • Input Connector Type: IEC C14

Output

  • Capacity (VA): 900

  • Capacity (Watts): 540

  • On Battery Waveform: Pure Sine Wave

  • On Battery Voltage(s) (Vac): 230 ± 10%

  • On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%

  • Automatic Voltage Regulation (AVR): Single Boost

  • Overload Protection: Internal Current Limiting, Circuit Breaker

  • Outlet(s) - Total: 6

  • Outlet Type: AU x 6

  • Outlet(s) - Battery & Surge Protected: 3

  • Outlet(s) - Surge-Only Protected: 3

  • USB Charging Port(s): -

  • USB Charging Current (A): -

  • Typical Transfer Time (ms): 4

Battery

  • Runtime at Half Load (min): 7

  • Runtime at Full Load (min): 1

  • Typical Recharge Time (Hours): 8

  • User-replaceable: Yes

  • Battery Type: Sealed Lead-acid

  • Replacement Battery Pack: RBP0051

  • RBP Quantity (pcs): 1

  • Surge Protection & Filtering

  • Surge Suppression (Joules): 405

  • EMI/RFI Filtration: Yes

  • Network Protection RJ45: 1-in, 1-out

Management & Communications

  • LCD Panel: Yes

  • LED Indicators: Power On

  • HID Compliant USB Port(s): 1

  • Serial Port: -

  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

  • Power Management Software: PowerPanel® Personal

Physical

  • Form Factor: Tower

Physical Size - UPS Module

  • Dimensions (WxHxD) (mm.): 100 x 230 x 275

  • Weight (kg.): 7.1

Environmental

  • Operating Temperature (°C): 0 ~ 40

  • Operating Relative Humidity (Non-condensing) (%): 0 ~ 95

  • Online Thermal Dissipation (BTU/hr): 31

Certifications

  • Certifications: CE, EAC, RCM

  • RoHS: Yes

Model # CPCP900EPFCLCDA
Barcode # 4712856279474
Brand CYBERPOWER
Shipping Weight 7.1000kg
Shipping Width 0.280m
Shipping Height 0.100m
Shipping Length 0.230m
Shipping Cubic 0.006325000m3
Type Desktop/Freestanding UPS
