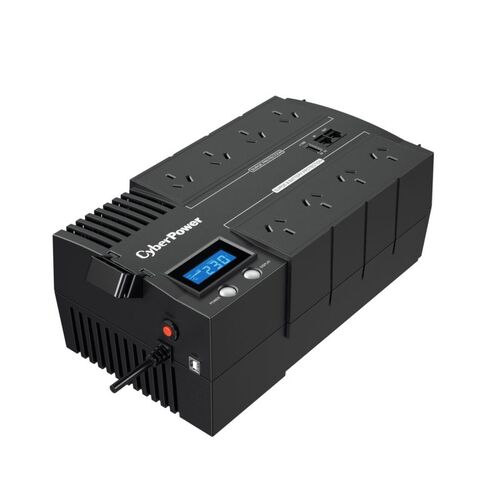

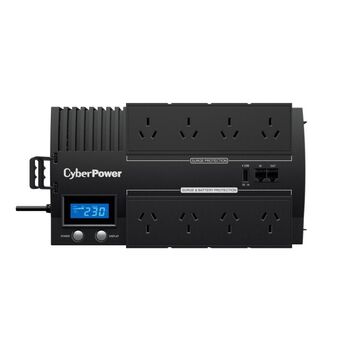

CP BRIC-LCD 700VA UPS

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Perfect for home and offce applications, the BRICs LCD Series is a compact UPS that adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilised AC power output.

The products' multifunction LCD readout clearly displays information on power and battery conditions. This series also features a cable collector and wall-mount design, allowing you to maintain a tidy and flexible workspace.

Features:

  • Line-interactive UPS Topology

  • Energy Saving Technology

  • Simulated Sine Wave Output

  • Automatic Voltage Regulation (AVR)

  • USB Charging Port

  • Surge and Spike Protection

  • Phone/Fax/Modem/DSL/Network Protection

  • LCD Status Display

  • User-replaceable Batteries

  • PowerPanel® Management Software

  • Wall Mount Installation

Products Callouts:

  • Power-On Indicator

  • Power On/O Switch

  • LCD Display Panel

  • Function Button

  • Battery Backup & Surge Protected Outlets

  • Surge Protected Outlets

  • Communication Protection Ports RJ11/RJ45

  • USB Charging Port

  • Cable Collector

  • Input Circuit Breaker

  • AC Input Power Cord

  • USB Port

Includes:

  • 1x CP BRIC-LCD 700VA UPS

(CPBR700ELCD)

This item comes with a 2-year warranty.

General

  • UPS Topology: Line-interactive

  • Energy Saving Technology: GreenPower UPS™ Bypass Technology

Input

  • Nominal Input Voltage (Vac): 230 ± 10%

  • Input Voltage Range (Vac): 170 ~ 290

  • Input Frequency (Hz): 50 ± 5, 60 ± 5

  • Input Frequency Detection: Auto-sensing

  • Rated Input Current (A): 3.18

  • Input Connector Type: AU

Output

  • Capacity (VA): 700

  • Capacity (Watts): 420

  • On Battery Waveform: Simulated Sine Wave

  • On Battery Voltage(s) (Vac): 230 ± 10%

  • On Battery Frequency (Hz): 50 ± 1%, 60 ± 1%

  • Automatic Voltage Regulation (AVR): Single Boost, Single Buck

  • Overload Protection: Circuit Breaker

  • Outlet(s) - Total: 8

  • Outlet Type: AU x 8

  • Outlet(s) - Battery & Surge Protected: 4

  • Outlet(s) - Surge-Only Protected: 4

  • USB Charging Port(s): 1

  • USB Charging Current (A): 1

  • Typical Transfer Time (ms): 4

Battery

  • Runtime at Half Load (min): 9

  • Runtime at Full Load (min): 1.5

  • Typical Recharge Time (Hours): 8

  • User-replaceable: Yes

  • Battery Type: Sealed Lead-acid

  • Replacement Battery Pack: RBP0083

  • RBP Quantity (pcs): 1

Surge Protection & Filtering

  • Surge Suppression (Joules): 150

  • EMI/RFI Filtration: Yes

  • Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out

Management & Communications

  • LCD Panel: Yes

  • LED Indicators: Power On, Line Mode, Battery Mode, Low Battery

  • HID Compliant USB Port(s): 1

  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

  • Power Management Software: PowerPanel® Personal (Recommended)

Physical

  • Form Factor: Desktop

Physical Size - UPS Module

  • Dimensions (WxHxD) (mm.): 166 x 118 x 288

  • Weight (kg.): 5.3

Environmental

  • Operating Temperature (°C): 0 ~ 40

  • Operating Relative Humidity (Non-condensing) (%): 0 ~ 90

  • Online Thermal Dissipation (BTU/hr): 71

Certifications

  • Certifications: CE, RCM

  • RoHS: Yes

Model # CPBR700ELCD
Barcode # 4712856270174
Brand CYBERPOWER
Shipping Weight 5.3000kg
Shipping Width 0.330m
Shipping Height 0.160m
Shipping Length 0.230m
Shipping Cubic 0.011960000m3
Type Desktop/Freestanding UPS
