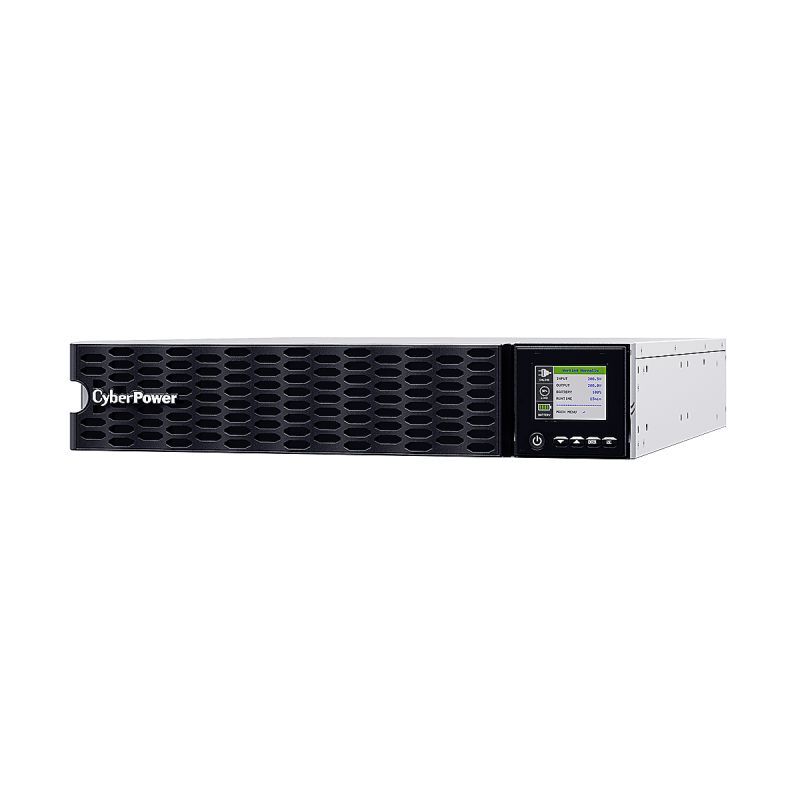

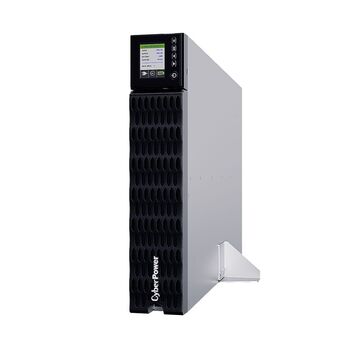

CP 6000VA/W Rack Tower UPS

This item comes with a 2-year warranty.

The products also adopt ECO Mode to save on energy costs, Battery Management Technology to help batteries obtain optimal lifespan, and color LCD Display to display key information at a glance.

General

• UPS Topology: Online Double Conversion

• Energy Saving Technology: Online ECO Mode Efficiency > 96%

• Active PFC Compatibility: Yes

Input

• Generator Compatibility: Yes

• Nominal Input Voltage (Vac): 200 ± 2%, 208 ± 2%, 220 ± 2%, 230 ± 2%, 240 ± 2%

• Input Voltage Range (Vac): 180 ~ 280

• Input Frequency (Hz): 50 ± 10, 60 ± 10

• Input Frequency Detection: Auto-sensing

• Rated Input Current (A): 32

• Input Power Factor: 0.99

• Input Connector Type: Hardwire Terminal Block

Output

• Capacity (VA): 6000

• Capacity (Watts): 6000

• On Battery Waveform: Pure Sine Wave

• On Battery Voltage(s) (Vac): 200 ± 2%, 208 ± 2%, 220 ± 2%, 230 ± 2%, 240 ± 2%

• Output Voltage Setting: Configurable

• On Battery Frequency (Hz): 50 ± 0.5%, 60 ± 0.5%

• Output Frequency Setting: Configurable

• Power Factor: 1

• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse

• Overload Protection (Line Mode): 105~125% Load for 1 min, 125~150% Load for 10 sec

• Overload Protection (Battery Mode): 105~130% Load for 10 sec, 130~150% Load for 2 sec

• Overload Protection (Bypass Mode): Circuit Breaker

• Harmonic Distortion (Linear Load): THD＜3%

• Harmonic Distortion (Non-linear Load): THD＜5%

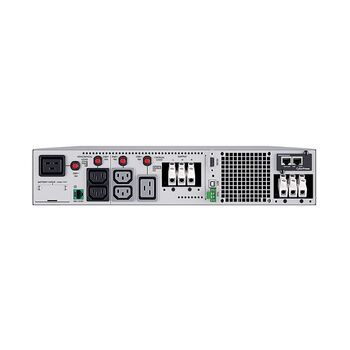

• Outlet(s) - Total: 7

• Outlet Type: IEC C19 x 2, IEC C13 x 4, Hardwire Terminal Block x 1

• Outlet(s) - Battery & Surge Protected: 7

• Outlet(s) - Critical Load (CL): 4

• Outlet(s) - Non-Critical Load (NCL): 3

• Typical Transfer Time (ms): 0

Battery

• Runtime at Half Load (min): 4.9

• Runtime at Full Load (min): 1.4

• Typical Recharge Time (Hours): 4

• Smart Battery Management (SBM): Yes

• User-replaceable: Yes - Qualified Personnel Only

• Hot-swappable: Yes

• Battery Type: Sealed Lead-acid

• Replacement Battery Pack: RBP0144

• RBP Quantity (pcs): 1

• Extended Battery Module (EBM): BPE144VL2U01 (Built-in Charger)

• Max. EBM Quantity (pcs): 10

Surge Protection & Filtering

• Surge Suppression (Joules): 2430

• EMI/RFI Filtration: Yes

Management & Communications

• LCD Panel: Yes

• LCD Orientation: Automatic LCD screen orientation, Rotatable LCD panel

• HID Compliant USB Port(s): 1

• Serial Port: Combo (RS232 + Dry Contact)

• Emergency Power Off (EPO) Port: Yes

• Power Management Software: PowerPanel® Business

• SNMP/HTTP Remote Monitoring: Yes – Pre-installed

Physical

• Form Factor: Rack/Tower

Physical Size - UPS Module

• Dimensions (WxHxD) (mm.): 433 x 86.5 x 720

• Weight (kg.): 42

• Installed Rack Height (U): 2

Environmental

• Operating Temperature (°C): 0 ~ 40

• Operating Relative Humidity (Non-condensing) (%): 0 ~ 90

• Online Thermal Dissipation (BTU/hr): 1613

Certifications

• Certifications: CE, EAC, RCM

• RoHS: Yes
