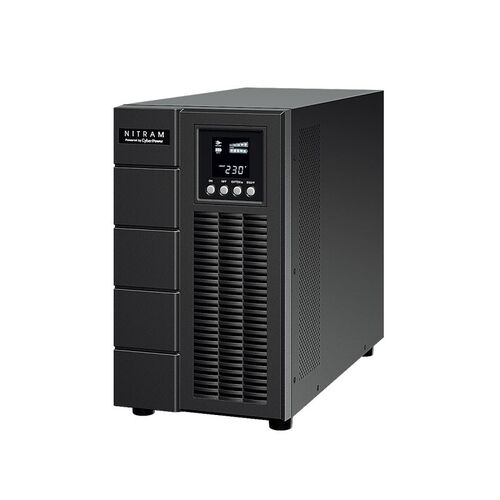

CP 2000VA/1800W Tower UPS

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The Online S UPS Series is ideal for servers, networking equipment, workstations, and other mission-critical applications which require Pure Sine Wave power input.

Featuring an Online Double Conversion design and Zero Transfer Time, the UPS provides consistent and seamless power to critical loads. Numerous engineering excellences showcase in this enterprise-level application including Economy Mode, Smart Battery Management, and External Battery Module, which further enhance its overall performance and capability.

The optional SNMP/HTTP Remote  Management Capability enables remote management and control of the system through a standard web browser.

Together with the PowerPanel® Business Edition management software, the UPS can provide administrators comprehensive network power management including unattended shutdown, event logging, reporting, and notifications.

Features:

  • Pure Sine Wave Output

  • Online (Double Conversion) UPS Topology

  • GreenPower UPSTM Technology

  • EMI, RFI, Surge and Spike Protection

  • Phone/Fax/Modem/DSL/Network Protection

  • Emergency Power Off (EPO) Port

  • Multifunction LCD Readout

  • USB & Serial Connectivity Ports

  • Generator Compatible

  • Smart Battery Management

  • Extended Runtime Model- Up to 3 battery packs

  • SNMP/HTTP Remote Management Capability (Optional)

  • PowerPanel® Business Edition Software

Application:

  • Medium Business

  • Corporate Data Center

  • Networking, Servers & Workstations

  • Industrial Equipment

Includes:

  • 1x CP 2000VA/1800W Tower UPS

(CPOLS2000E)

This item comes with a 3-year warranty.

General

  • UPS Topology: Online Double Conversion

  • Energy Saving: Online ECO Mode Efficiency > 95%

Input

  • Generator Compatibility: Yes

  • Nominal Input Voltage: 230Vac ± 10%

  • Input Voltage Range: 160 - 300Vac

  • Input Frequency Range: 50/60 ± 10Hz (Auto-sensing)

  • Rated Input current: 9A

  • Input Power Factor: 0.98

  • Plug Type: IEC C20

Output

  • VA/Watts: 2000/1800

  • On Battery Waveform: Pure Sine Wave

  • On Battery Voltage: 208, 220, 230, 240Vac ± 1% (Configurable)

  • On Battery Frequency: 50/60Hz ± 0.5% (Configurable)

  • Overload Protection (Line Mode): 110~120% Load for 1 min, >120% Load Immediately

  • Overload Protection (Battery Mode): 110~120% Load for 10 sec, >120% Load Immediately

  • Overload Protection (Bypass Mode): >130% Load Immediately

  • Outlets - Total: 5

  • Outlet Type: Hardwire Terminal Block x 1, IEC C13 x 4

  • Outlets - Battery & Surge Protected: 4

  • Rated Power Factor: 0.9

  • Harmonic Distortion: THD < 3% at Linear Load, < 5% at Non-linear Load

  • Transfer Time: 0ms

Battery

  • Runtime at Half Load (min): 15

  • Runtime at Full Load (min): 5

  • Battery Type: Sealed Lead-Acid

  • User-replaceable: No

  • Typical Recharge Time: 5 Hours

  • Smart Battery Management (SBM) Mode: Yes

  • Extended Battery Module (EBM): BPSE72V45A

  • Max. EBM Quantity: 3

Surge Protection & Filtering

  • Surge Suppression (Joules): 440

  • Phone/Network Protection RJ11/RJ45: 1-in, 1-out

Management & Communications

  • LCD Panel: Yes

  • HID Compliant USB Port: 1

  • Serial Port: RS232

  • Emergency Power Off (EPO) Port: Yes

  • Software: PowerPanel® Business Edition

  • SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205

Physical

  • Form Factor: Tower

Physical – UPS Module

  • Dimensions (WxHxD) (mm.): 196 x 337 x 416

  • Weight (kg.): 23.8

Environmental

  • Operating Temperature: 32 °F to 104 °F / 0 °C to 40 °C

  • Operating Humidity: 20% - 90% non-condensing

  • Operating Elevation: 0-5,000 feet (0-1,500 meters)

  • Storage Temperature: -4 °F to 122°F / -20°C to 50 °C

  • Storage Relative Humidity: 10% - 90% non-condensing

  • Online Thermal Dissipation: 666 BTU/hr

Certifications

  • Certifications: CE, EAC, LOA, BIS, RCM

  • RoHS Compliant: Yes

Model # CPOLS2000E
Barcode # 4712856271324
Brand CYBERPOWER
Shipping Weight 34.2000kg
Shipping Width 0.420m
Shipping Height 0.200m
Shipping Length 0.340m
Shipping Cubic 0.027478000m3
Type Enterprise/Data Center UPS
