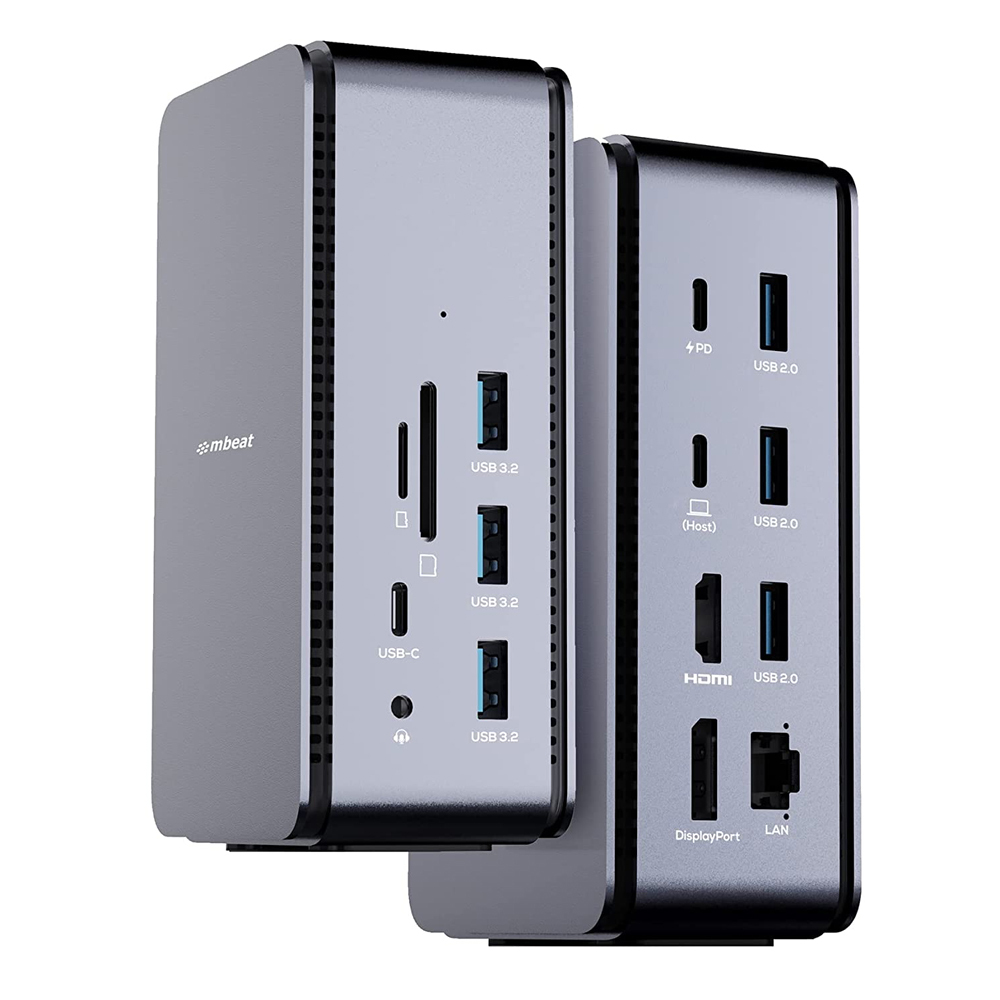

mBeat USB 4.0 14 in 1 Docking Station Space Grey MB-U4DOCK-01

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Ultimate Utility
Premiere 14-port all-in-one USB4 docking station with enhanced performance with up to 40Gbps bandwidth; connect dual UHD displays, up to 7 USB devices, Gigabit LAN, SD/MicroSD 3.0 cards, Hi-Res audio with 100W PD Pass-through.

Ultimate Utility
Premiere 14-port all-in-one USB4 docking station with enhanced performance with up to 40Gbps bandwidth; connect dual UHD displays, up to 7 USB devices, Gigabit LAN, SD/MicroSD 3.0 cards, Hi-Res audio with 100W PD Pass-through.

High-Speed Data & Charge
Massive 7 port USB expansion with transfer rates up to 10Gbps (USB3.2/Type-C), supports BC 1.2 fast charging up to 7.5W, and legacy USB2.0 ports for keyboard/mice/other peripherals.

8K HD Video
Built-in HDMI 2.1 and DisplayPort 1.4, achieve crystal clear 8K resolution with compatible devices*. Easily achieve 4K dual-screen: Window™ supports MST or SST Mode 4K@60Hz*; Mac™ OS supports SST Mode 4K@60Hz. (*USB-C host must support DisplayPort 1.4)

Extensively Functional
Featuring dual display via HDMI 2.1 and DisplayPort 1.4, 100W PD pass-through, RJ45 1000Mbps, SD/MicroSD reader, 3×USB3.2 with BC 1.2 fast charge, 3×USB2.0, 1×Type-C and Hi-Res 3.5 AUX.



  • A comprehensive 14-in-1 USB4 docking solution with enhanced features
  • 8K high definition video up to two displays @8K30Hz/4K60Hz (DP1.4 required)
  • High-speed data up to 10Gbps transfer rates across 4 ports simultaneously
  • Premium extras high-speed SDXC, hi-res 3.5mm Aux, Gigabit LAN and 100W PD Pass-through
  • USB4 (Type-C form) × 1: 40Gbps
  • USB Type-C 3.2 × 1: 10Gbps
  • USB3.2 Port × 3: 10Gbps, Supports BC1.2 Charging up to 7.5W

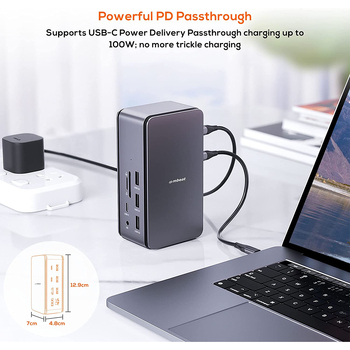

  • USB Type-C PD × 1: 100W Pass Through
  • USB2.0 Port × 3: 480Mbps
  • HDMI® 2.1 × 1: 8K@30Hz
  • DisplayPort™ 1.4 × 1: 8K@30Hz
  • RJ45 Port × 1: 10/100/1000Mbps
  • SD Card Reader × 1: SD 3.0, compatible with SDXC, SDHC and SD
  • MicroSD Card Reader × 1: MicroSD 3.0, compatible with MicroSDXC, MicroSDHC and MicroSD
  • Audio × 1: 3.5mm Aux In/Out, SPDIF-OUT supports 16/20/24-bit format and 44.1/48/88.2/96kHz Sample Rate
  • Window™ supports MST or SST Mode 4K@60Hz; Mac™ OS supports SST Mode 4K@60Hz
  • USB4 Cable: 80cm × 1
  • USB4 is backward compatible with all USB standards including Thunderbolt™ 3 and 4.
  • Product is compatible with Windows™ 7, 8, 10, 11 and Mac™ OS 10.12.
  • Windows™ OS supports MST, Mac™ OS only supports SST in USB-C Display Alt mode, MacBook™ (2020) with M1 CPU currently only supports 1 external monitor display.
  • Product does not include USB-C power supply.

Item Dimensions Approx: 12.9cm × 6.95cm × 4.8cm


Includes:

1x USB4 Docking Station
1x 80cm USB 4.0 Cable

(MB-U4DOCK-01)

Standard Consumer Warranty
Ultimate Utility Premiere 14-port all-in-one USB4 docking station with enhanced performance with up to 40Gbps bandwidth; connect dual UHD displays, up to 7 USB devices, Gigabit LAN, SD/MicroSD 3.0 cards, Hi-Res audio with 100W PD Pass-through.   A comprehensive 14-in-1 USB4 docking solution with enhanced features 8K high definition video up to two displays @8K30Hz/4K60Hz (DP1.4 required) High-speed data up to 10Gbps transfer rates across 4 ports simultaneously Premium extras high-speed SDXC, hi-res 3.5mm Aux, Gigabit LAN and 100W PD Pass-through USB4 (Type-C form) × 1: 40Gbps USB Type-C 3.2 × 1: 10Gbps USB3.2 Port × 3: 10Gbps, Supports BC1.2 Charging up to 7.5W USB Type-C PD × 1: 100W Pass Through USB2.0 Port × 3: 480Mbps HDMI® 2.1 × 1: 8K@30Hz DisplayPort™ 1.4 × 1: 8K@30Hz RJ45 Port × 1: 10/100/1000Mbps SD Card Reader × 1: SD 3.0, compatible with SDXC, SDHC and SD MicroSD Card Reader × 1: MicroSD 3.0, compatible with MicroSDXC, MicroSDHC and MicroSD Audio × 1: 3.5mm Aux In/Out, SPDIF-OUT supports 16/20/24-bit format and 44.1/48/88.2/96kHz Sample Rate Window™ supports MST or SST Mode 4K@60Hz; Mac™ OS supports SST Mode 4K@60Hz USB4 Cable: 80cm × 1 USB4 is backward compatible with all USB standards including Thunderbolt™ 3 and 4. Product is compatible with Windows™ 7, 8, 10, 11 and Mac™ OS 10.12. Windows™ OS supports MST, Mac™ OS only supports SST in USB-C Display Alt mode, MacBook™ (2020) with M1 CPU currently only supports 1 external monitor display. Product does not include USB-C power supply. Item Dimensions Approx: 12.9cm × 6.95cm × 4.8cm Includes: 1x USB4 Docking Station 1x 80cm USB 4.0 Cable
Model # MB-U4DOCK-01
Barcode # 9346396003388
Brand MBEAT
Shipping Weight 0.5800kg
Shipping Width 0.180m
Shipping Height 0.060m
Shipping Length 0.150m
Shipping Cubic 0.001444000m3
Type Docking Station
