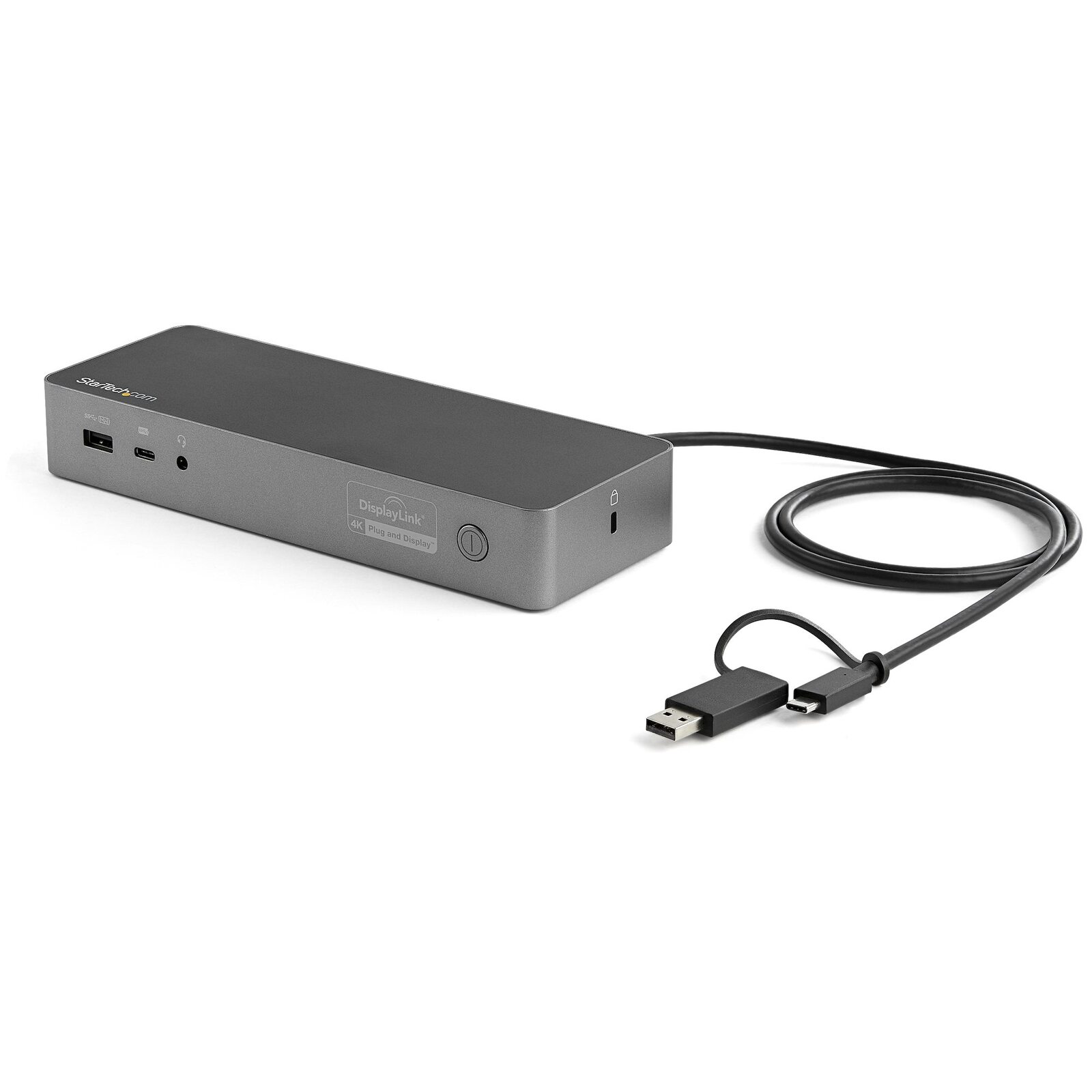

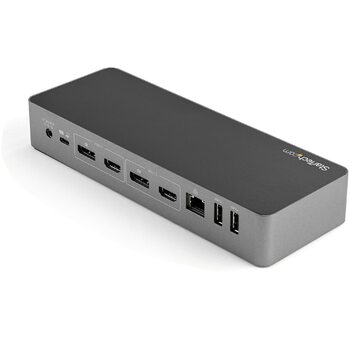

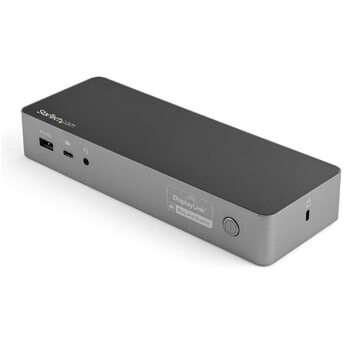

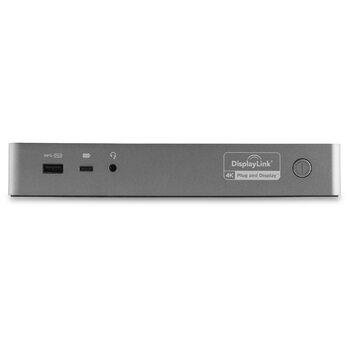

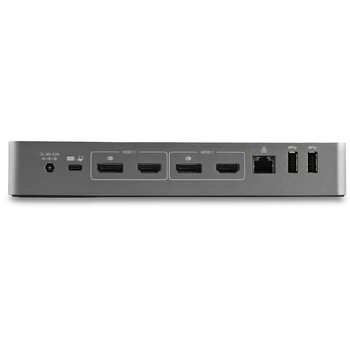

Star Tech Universal Laptop Docking Station - USB-C & USB-A - 100W PD

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech Universal Laptop Docking Station - USB-C & USB-A - 100W PD

 Up to 4096 x 2160p @ 60Hz

  • Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

  • Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

  • Single 5K DisplayPort* | Up to 5120 × 2880

  • *Requires monitor support for 5K using two DP ports

    Certified for Universal Compatibility & Reliability

    This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

    Easy and Convenient Setup

    For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

    The Connections You Need

    Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

    StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

    (DK30C2DPEP)

    This item comes with a 3 Years warranty

    Star Tech Universal Laptop Docking Station - USB-C & USB-A - 100W PD Up to 4096 x 2160p @ 60Hz  Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz  Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz  Single 5K DisplayPort* | Up to 5120 × 2880 *Requires monitor support for 5K using two DP ports Certified for Universal Compatibility & Reliability This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility. Easy and Convenient Setup  For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).  The Connections You Need  Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.  StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

    Hardware
    Displays Supported: 2
    Fast-Charge Port(s): Yes
    Industry Standards: USB Power Delivery Specification Rev. 3.0
    USB Battery Charging Specification Rev. 1.2
    DisplayPort 1.2
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    USB 3.0 - Backward compatible with USB 2.0 and 1.1
    Interface: USB 3.0

    Packaging Information
    Package Height: 90 mm [3.5 in]
    Package Length: 27 cm [10.6 in]
    Package Width: 15.5 cm [6.1 in]
    Shipping (Package) Weight: 1.3 kg [2.9 lb]

    Performance
    Compatible Networks: 10/100/1000 Mbps
    Full Duplex Support: Yes
    Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
    2 Gbps (Ethernet; Full-Duplex)
    Maximum Digital Resolutions: 2x HDMI - 4096 x 2160p @60Hz
    2x DisplayPort - 4096 x 2160p @60Hz
    1x HDMI + 1x DisplayPort - 4096 x 2160p @60Hz

    1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz

    Lower resolutions are also supported. For example, if the max is 4096 x 2160p (4K), it also supports 3840 x 2160p (4K), 2560 x 1600p and 2560 x 1440p.

    PXE: Yes
    Type and Rate: USB 3.0 - 5 Gbit/s
    UASP Support: Yes

    Physical Characteristics
    Color: Black & Space Gray
    Material: Plastic
    Product Height: 3 cm [1.2 in]
    Product Length: 22 cm [8.7 in]
    Product Width: 80 mm [3.1 in]
    Weight of Product: 280 g [9.9 oz]

    Power
    Center Tip Polarity: Positive
    Input Current: 2.5 A
    Input Voltage: 100 - 240 AC
    Output Current: 7.7A
    Output Voltage: 19.5V DC
    Plug Type: N
    Power Consumption (In Watts): 150W
    Power Delivery: 100W
    Power Source: AC Adapter Included

    Prominence
    Description CDW 75 - 1st Line: StarTech.com USB-C & USB-A Hybrid Dock w/ 100W PD - Dual 4K 60Hz HDMI / DP

    Software
    OS Compatibility: Windows® 7, 8, 8.1, 10
    macOS 10.11 - 10.12, 10.14, 10.15, 11.0
    Ubuntu 18.04, 20.04
    Chrome OS™ v55+

    Special Notes / Requirements
    Note: 4K resolution is supported on all 4 video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolutions

    Hardware
    Compatible Lock Slot: Kensington Standard Slot (K-Slot)
    Chipset ID: DisplayLink - DL6950
    Genesys Logic - GL3523
    Fresco Logic - FL7102
    Fresco Logic - FL7201
    VIA Labs - VL160
    RealTek - RTL8153
    Texas Instruments - TS3A225E
    Bus Type: USB-C : USB 3.0
    4K Support: Yes

    Environmental
    Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    Operating Temperature: 0°C to 50°C (32°F to 122°F)
    Humidity: 0~95% RH

    Connector(s)
    Connector Type(s): USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female: USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : USB 3.0 A (Fast-Charge, 9 pin) Female : HDMI (19 pin) Female : Ethernet Gigabit Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (4 Position) Female

    Special Notes / Requirements
    Note: 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions : DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. : If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included) : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery. : The dock connects to the USB Type-C port or the USB Type-A port on your laptop. : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
    System and Cable Requirements: USB-C enabled computer with an available USB Type-C port, or a USB-3.0 enabled computer with an available USB Type-A port

    What's in the Box
    Included in Package: Docking Station : Quick-Start Guide : Universal Power Adapter (NA/JP, ANZ) : USB-C Cable (with Attached USB-C to USB-A Adapter)

    Model # DK30C2DPEP
    Barcode # 065030879972
    Brand STAR TECH
    Shipping Weight 1.3000kg
    Shipping Width 0.270m
    Shipping Height 0.090m
    Shipping Length 0.160m
    Shipping Cubic 0.003888000m3
    Type Docking Station
