Star Tech Dual Monitor Docking Station - HDMI and DVI / VGA - USB 3.0

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech Dual Monitor Docking Station - HDMI and DVI / VGA - USB 3.0

This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.

Enhance Productivity with Dual Video

The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.

With the dual-monitor dock, you can connect:

  • 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
  • 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz

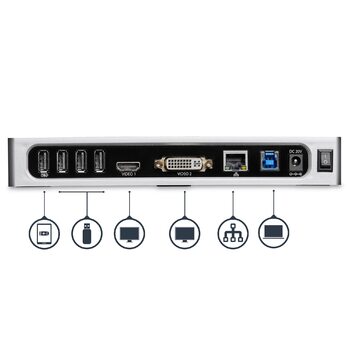

All the Connections You Need

Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.

(DK30ADD)

This item comes with a 3 Years warranty

Star Tech Dual Monitor Docking Station - HDMI and DVI / VGA - USB 3.0This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.    Enhance Productivity with Dual Video  The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.   With the dual-monitor dock, you can connect:  1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz  1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz  All the Connections You Need  Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.

Hardware
Industry Standards: USB Battery Charging Specification Rev. 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1
Interface: USB 3.0

Indicators
LED Indicators: Power

Packaging Information
Package Height: 60 mm [2.4 in]
Package Length: 30.7 cm [12.1 in]
Package Width: 14 cm [5.5 in]
Shipping (Package) Weight: 815 g [28.8 oz]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: Dual displays - HDMI + DVI - 2048 x 1152 @ 60Hz
Dual displays - HDMI 2048 x 1152 + VGA 1920 x 1200 @ 60Hz

Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

Physical Characteristics
Cable Length: 1000 mm [39.4 in]
Color: Black & Silver
Material: Plastic

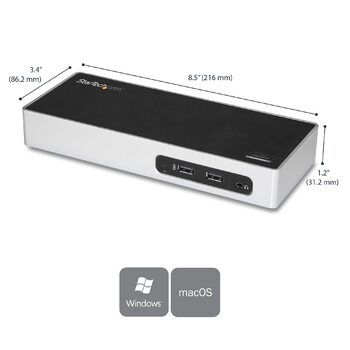

Product Height: 3.1 cm [1.2 in]
Product Length: 21.6 cm [8.5 in]
Product Width: 86.2 mm [3.4 in]
Weight of Product: 291 g [10.3 oz]

Power
Center Tip Polarity: Positive
Input Current: 1 A
Input Voltage: 100 - 240 AC
Output Current: 2 A
Output Voltage: 20V DC
Plug Type: N
Power Consumption (In Watts): 40W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com USB 3.0 Docking Station - Dual Monitor Dock w/ HDMI & DVI/VGA

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.10 - 10.12, 10.14 - 10.15, 11.0

Special Notes / Requirements
Note: A DVI to VGA adapter is included. : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

Hardware
Fast-Charge Port(s): Yes
Displays Supported: 2
Chipset ID: DisplayLink - DL-3900
VIA/VLI - VL813
Bus Type: USB 3.0
4K Support: No

Environmental
Storage Temperature: -10°C to 70°C (14°F to 158°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10-90% non-condensing

Connector(s)
Connector Type(s): USB Type-B (9 pin) USB 3.0 Female: USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : USB 3.0 A (Fast-Charge, 9 pin) Female : RJ-45 Female : HDMI (19 pin) Female : DVI-I (29 pin) Female : 3.5 mm Mini-Jack (3 Position) Female

Special Notes / Requirements
System and Cable Requirements: A host laptop with an available USB-A port.

What's in the Box
Included in Package: docking station : DVI to VGA adapter : quick-start guide : universal power adapter (NA/JP, UK, EU, ANZ) : USB 3.0 cable

Model # DK30ADD
Barcode # 065030871440
Brand STAR TECH
Shipping Weight 0.8200kg
Shipping Width 0.310m
Shipping Height 0.060m
Shipping Length 0.140m
Shipping Cubic 0.002604000m3
Type Docking Station
