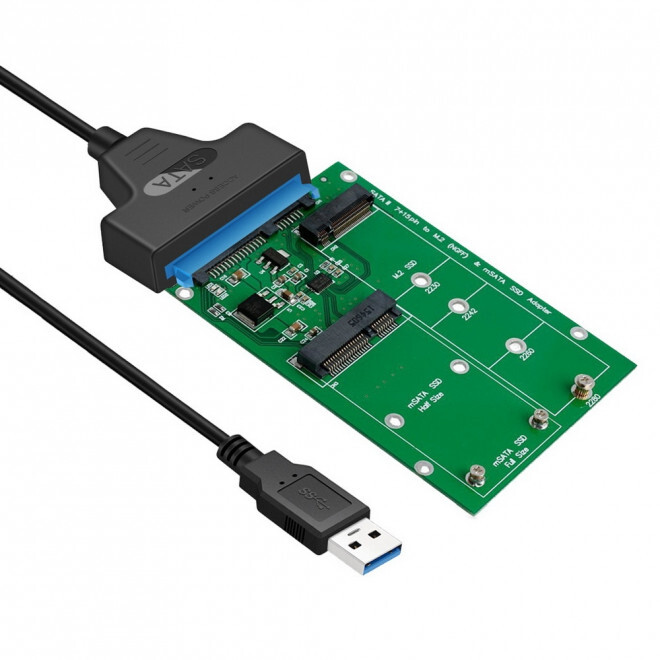

Simplecom SA221 2-in-1 Combo Adapter USB 3.0 Male to mSATA/M.2 SSD

Simplecom SA221 USB 3.0 to mSATA + NGFF M.2 (B Key) SSD 2 in 1 Combo Adapter

Simplecom SA221 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA and USB 3.0 interface. Use this adapter to easily access 6 different size M.2 or mSATA SSDs via standard SATA or USB 3.0 port. It’s an ideal solution for data backup and migration.

• mSATA + M.2 SSD 2 in 1 Combo Adapter

• Detachable USB 3.0 cable, with SATA and USB 3.0 dual interface

• LED indicates power and activity status

• Support SATA Revision 3.2

• PCI Express M.2 Spec. Revision 0.7, Version 1.0

• PCI Express Mini Card Electromechanical Spec. 1.2

• B Key M.2 interface, support B Key or B+M Key M.2 SSD

• Thermal shutdown protection

• Short circuit protection

• In-rush current suppression

• PWM synchronous buck converter Power IC

Support following form factor M.2(NGFF) SSD:

• Type 2230-D2-B-M: 30mm(L) x 22mm(W)

• Type 2242-D2-B-M: 42mm(L) x 22mm(W)

• Type 2260-D2-B-M: 60mm(L) x 22mm(W)

• Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Support following form factor mSATA SSD:

• Half size mSATA : 26.8mm(L) x 30mm(W)

• Full size mSATA : 50.95mm(L) x 30mm(W)

Includes:

• 1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter

• 1x USB 3.0 Cable

NOTE: If both M.2 & mSATA SSD inserted at the same time the M.2 SSD will take priority. The mSATA SSD will be disabled until the M.2 SSD is removed.
The M.2 interface is B Key, M Key only or NVMeM.2 SSD are not supported.
