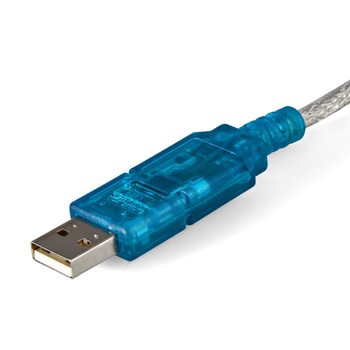

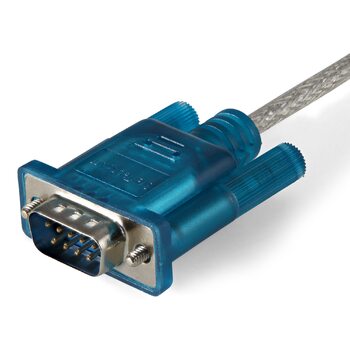

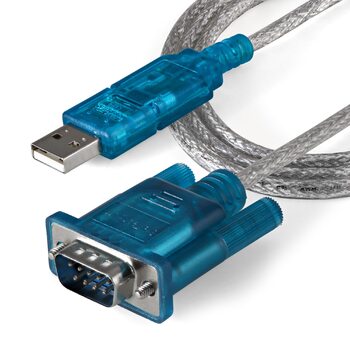

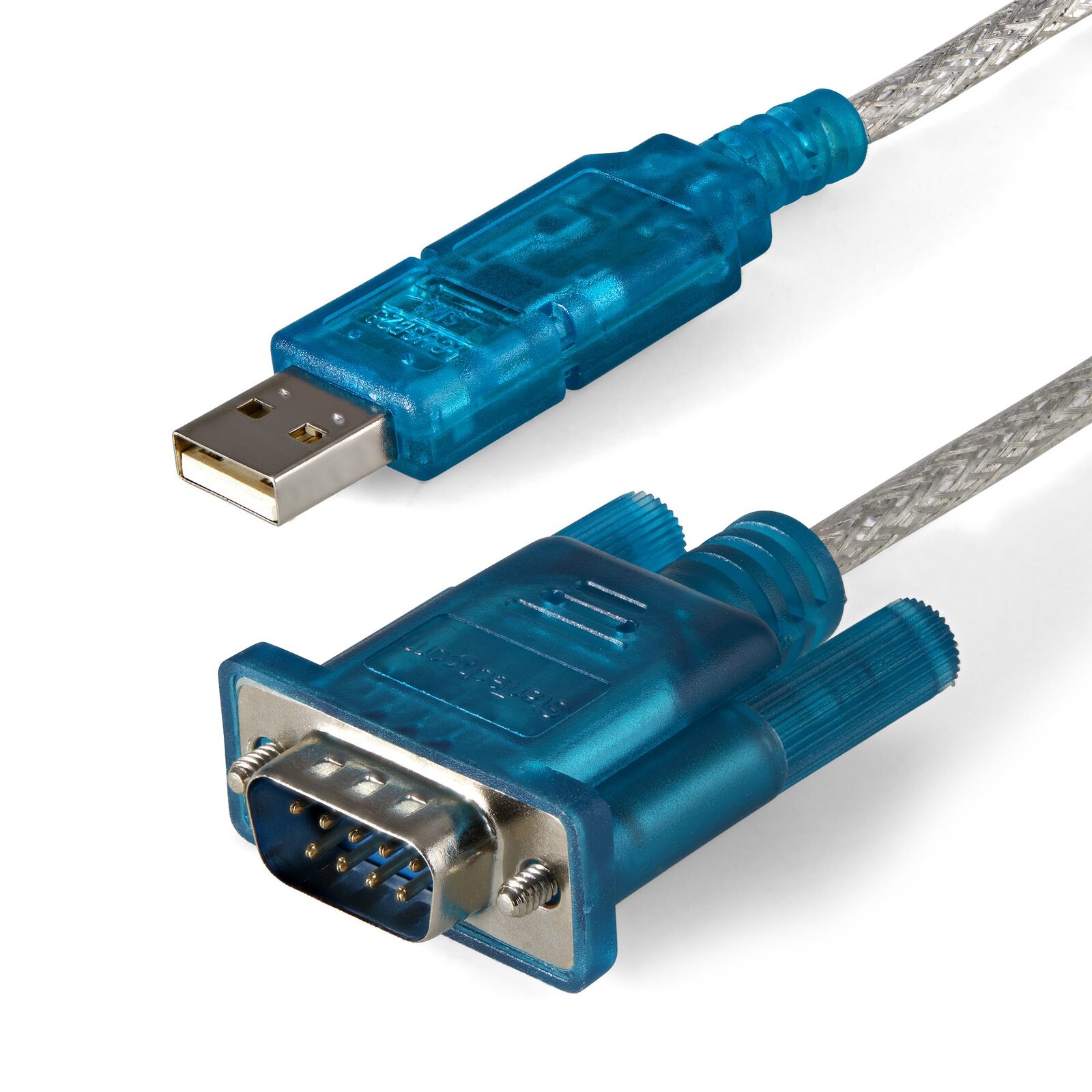

Star Tech USB to Serial Adapter Cable - USB to RS232 DB9 M/M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech USB to Serial Adapter Cable - USB to RS232 DB9 M/M

The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.

Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.

Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

(ICUSB232SM3)

This item comes with 5 years warranty

Star Tech USB to Serial Adapter Cable - USB to RS232 DB9 M/MThe ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector. Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary. Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

Performance
FIFO  : 192 Bytes
Max Baud Rate  : 921.6 Kbps
Serial Protocol  : RS-232

Physical Characteristics
Cable Length  : 0.9 m [3 ft]
Color  : Black
Material  : Plastic
Product Height  : 1.5 cm [0.6 in]
Product Length  : 91.4 cm [36 in]
Product Width  : 35 mm [1.4 in]
Weight of Product  : 56 g [2 oz]

Software
OS Compatibility  : Windows® CE 4.2, 5.2, 98SE, ME, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15, 11.0
Linux 2.4.x to 4.11.x LTS Versions only

What's in the Box
Included in Package  : Cable Nuts
USB to Serial Converter

Packaging Information
Shipping (Package) Weight  : 70 g [2.5 oz]
Package Width  : 20 cm [7.9 in]
Package Length  : 22 cm [8.7 in]
Package Height  : 15 mm [0.6 in]

Hardware
Ports  : 1
Port Style  : Cable Adapters
Interface  : Serial
Industry Standards  : RS232, USB 1.1/2.0
Chipset ID  : Prolific - PL2303HXD
Bus Type  : USB 2.0

Environmental
Storage Temperature  : -20°C to 80°C (-4°F to 176°F)
Operating Temperature  : 0°C to 60°C (32°F to 140°F)
Humidity  : 0~65% RH

Connector(s)
Connector B  : DB-9 (9 pin, D-Sub) Male
Connector A  : USB Type-A (4 pin) USB 2.0 Male

Model # ICUSB232SM3
Barcode # 065030842440
Brand STAR TECH
Shipping Weight 0.0700kg
Shipping Width 0.220m
Shipping Height 0.020m
Shipping Length 0.200m
Shipping Cubic 0.000660000m3
Type Adapter Cable
