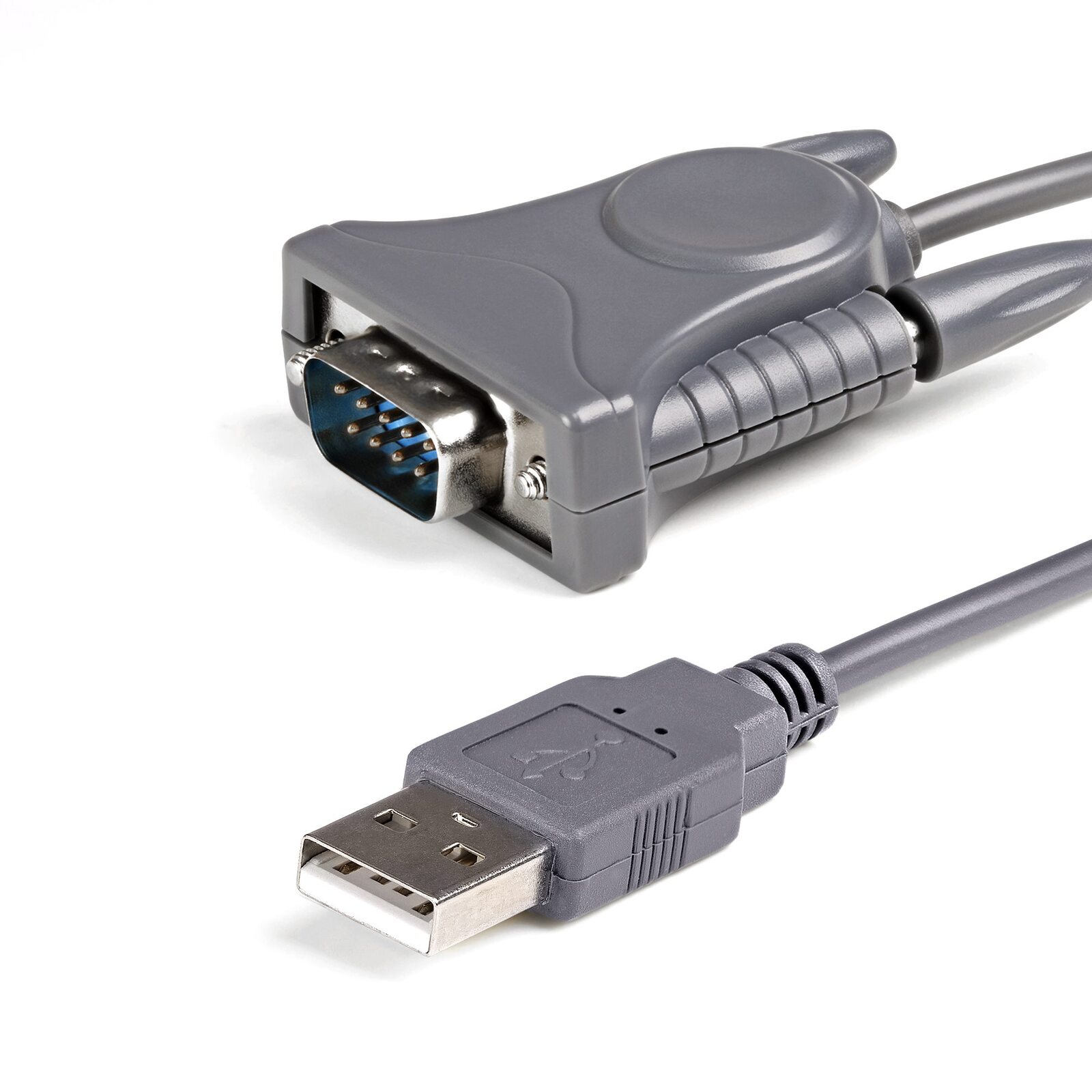

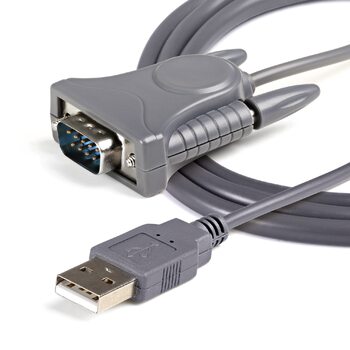

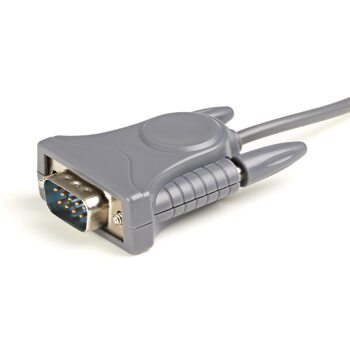

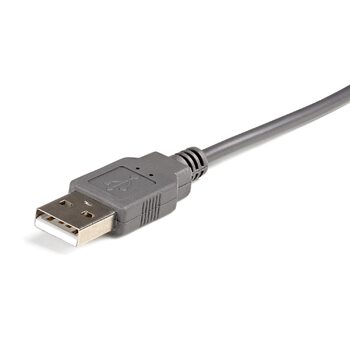

Star Tech USB to RS232 DB9/DB25 Serial Adapter Cable - M/M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech USB to RS232 DB9/DB25 Serial Adapter Cable - M/M

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.

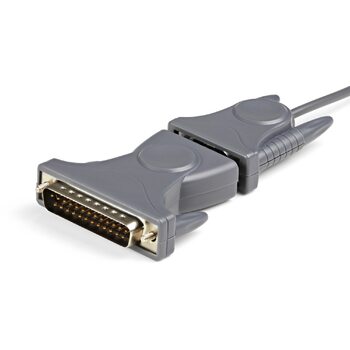

A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.

(ICUSB232DB25)

This item comes with a 2 Years warranty

Star Tech USB to RS232 DB9/DB25 Serial Adapter Cable - M/MThe ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables. A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.

Performance
Data Bits  : 4, 5, 6, 7, 8
FIFO  : 512 Bytes
Flow Control  : None, Xon/ Xoff, Hardware
Max Baud Rate  : 230.4 Kbps
Parity  : None, Even, Odd, Mark, Space
Serial Protocol  : RS-232
Stop Bits  : 1, 1.5, 2

Physical Characteristics
Cable Length  : 0.9 m [3 ft]
Color  : Gray
Material  : Plastic
Product Length  : 91.5 cm [36 in]
Weight of Product  : 75 g [2.6 oz]

Software
Microsoft WHQL Certified  : Yes
OS Compatibility  : Windows® PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15, 11.0
Linux 2.4.x to 4.11.x LTS Versions only

What's in the Box
Included in Package  : 3ft USB to RS232 Cable
DB9 to DB25 Serial Adapter
Driver CD
Manual

Packaging Information
Shipping (Package) Weight  : 143 g [5 oz]
Package Width  : 14.3 cm [5.6 in]
Package Length  : 17.2 cm [6.8 in]
Package Height  : 32 mm [1.3 in]

Hardware
Ports  : 1
Port Style  : Cable Adapters
Interface  : Serial
Chipset ID  : Prolific - PL2303
Bus Type  : USB 2.0

Environmental
Storage Temperature  : -40°C to 85°C (-40°F to 185°F)
Operating Temperature  : 0°C to 70°C (32°F to 158°F)
Humidity  : 5~85% RH

Connector(s)
External Ports  : DB-9 (9 pin, D-Sub) Male
DB-25 (25 pin, D-Sub) Male
Connector Type(s)  : USB Type-A (4 pin) USB 2.0 Male

Model # ICUSB232DB25
Barcode # 065030840453
Brand STAR TECH
Shipping Weight 0.1400kg
Shipping Width 0.170m
Shipping Height 0.030m
Shipping Length 0.140m
Shipping Cubic 0.000787000m3
Type Adapter Cable
