HyperDrive GEN2 16-in-1 TB3 USB-C Thunderbolt 3 Dock Silver

HyperDrive GEN2 16-in-1 TB3 USB-C Thunderbolt 3 Dock Silver

Universal Thunderbolt 3 USB-C hub for MacBook, Chromebook, and PC. The Gen2 USB-C docking station adds 16 ports with 2X more speed & power than previous generation.

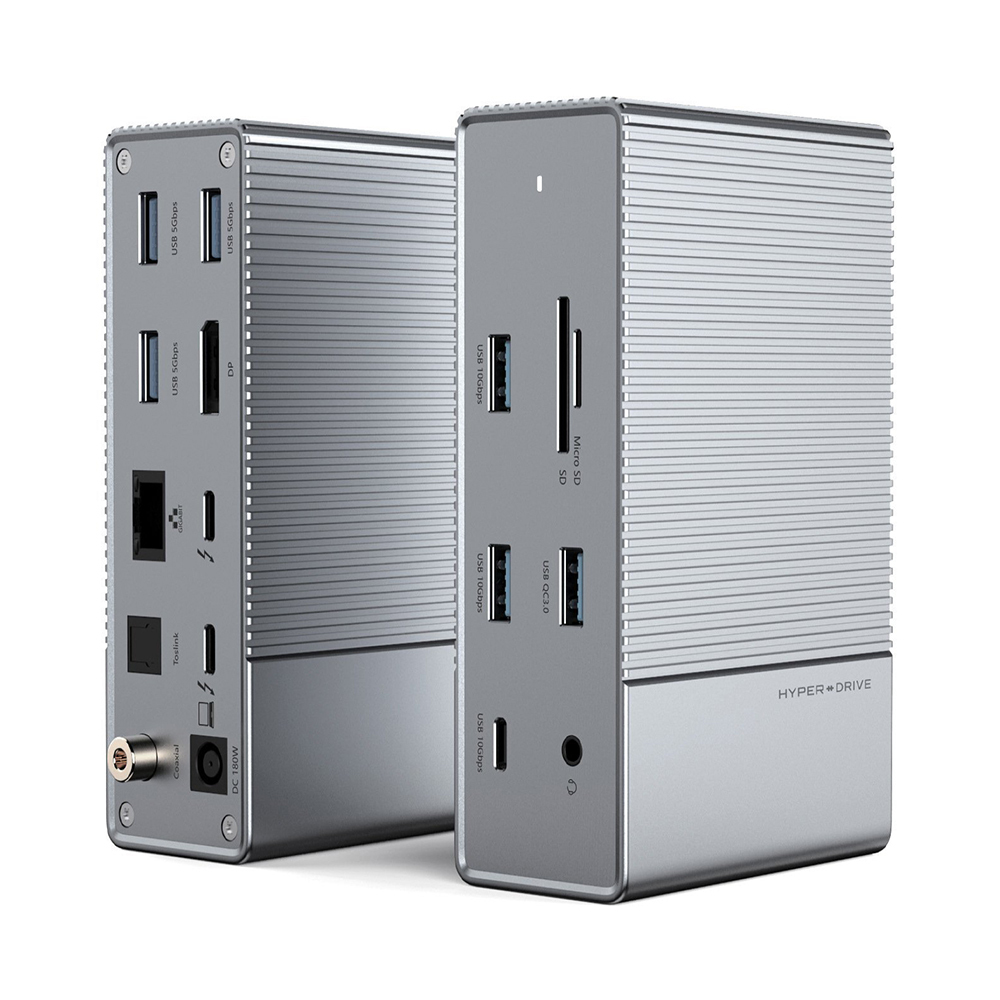

Ports

• - Upstream TB3 40Gbps, 85W PD (for TB3 host)
• - Upstream USB-C 10Gbps, 85W PD (for USB-C host)
• - Downstream TB3 40Gbps, DP1.4, 15W (for TB3 host)
• - Downstream USB-C, USB 2.0, 15W (for USB-C host)
• - DisplayPort 1.4
• - USB-C 10Gbps 5V/1.5A
• - USB-A 10Gbps 5V/900mA x 2
• - USB-A 5Gbps 5V/900mA x 3
• - USB-A QC 3.0 18W
• - Gigabit Ethernet
• - MicroSD/SD 4.0 UHS-II 312MB/s
• - Digital Coaxial Audio
• - Optical Toslink Audio
• - 3.5mm Audio Jack
• - DC 180W

Thunderbolt 3 Titan Ridge
Latest version of Thunderbolt 3 utilizing Intel Titan Ridge chipset which supports backward compatibility with USB-C non-TB3 devices.

Supports 8K, Dual & Triple 4K Video Output
Supports dual (8K+4K) video (Mac/PC) or triple 4K video (PC/Chrome only with MST hub). See supported max video resolutions below.

Daisy Chain up to 6 x TB3 Devices
Daisy chain up to 6 x Thunderbolt 3 docks or devices.

Compatible with USB-C Host
Backward compatible with USB-C (non-TB3) host/computer. The difference between TB3 vs USB-C connection would be upstream bandwidth (40Gbps vs 10Gbs), downstream port (TB3 vs USB-C 2.0), and video resolution (see below). All other port features remain the same.

Upstream TB3 40Gbps 85W PD
When connected to TB3 host/computer, Upstream TB3 port supports 40Gbps data bandwidth and 85W Power Delivery to TB3 host

Upstream USB-C 10Gbps 85W PD
When connected to USB-C (non-TB3) host/computer. Upstream TB3 port supports 10Gbps data bandwidth and 85W Power Delivery to USB-C host

Downstrem TB3 40Gbps DP1.4, 15W
When connected to TB3 host, Downstream TB3 port supports 40Gbps data transfer, DisplayPort 1.4 video, 15W power, and ability to daisy chain up to 6 x TB3 devices.

Downstream USB-C USB 2.0 15W
When connected to USB-C (non-TB3) host/computer. Downstream TB3 port supports USB 2.0 data transfer and 15W power.

DisplayPort 1.4
Supports DisplayPort 1.2 and 1.4 protocols. Connect to a single DP display (Mac/PC/Chrome) or MST hub to expand up to 3 extended displays (PC/Chrome only)

6 x USB High-Speed Data Ports
USB-C 10Gbps 5V/1.5A
USB-A 10Gbps 5V/900mA x 2
USB-A 5Gbps 5V/900mA x 3

USB-A QC 3.0 18W Charging Port
Charging only.
Supports Quick Charge 2.0/3.0 5V/9V/12V
Max 18W

Gigabit Ethernet
Supports 10Mbps/100Mbps/1Gbps. Half/full-duplex.

MicroSD/SD 4.0 UHS-II 312MB/s
Supports maximum read/write speed of 312MB/s. Supports SDHC/SDXC memory cards up to 2TB. MicroSD and SD slots can read and write at the same time.

Digital Coaxial Audio
SPDIF interface: Max 96KHz/24bit output, 0.4V~0.6V Vpp@50Ω load.

Optical Toslink Audio
Optical fiber SPDIF interface: Max 96KHz/24bit output, -21dBm~-15dBm light intensity output.

3.5mm Audio Jack
Sample rate up to 96KHz/24bit. Supports auto-detection and auto-switch between OMTP and CTIA.

DC 180W
Connect to included 180W (21V, 8.57A) power supply for dock to function.
